SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29075iYR31..5F198601-198808

N=21,MARK 21:6,N=21

main33482-39025iYR22..5F..ARL198211-198808

N=19,MARK 19:6,N=19

main33482-39035iCR21,YR21..5F198211-198808

N=21,MARK 21:6,N=21,*AXC=E282

main33482-39035iYR2#..5F..ARL198307-198408

N=21,MARK 21:6,N=21

main33482-39045iYR21..5F..ARL198411-198808

N=20,MARK 20:6,N=20,*AXC=E292

main33482-39045iYR20..5F..(ARL,GEN)198211-198408

N=20,MARK 20:6,N=20

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCR21,YR2#,31..5F198211-198808

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCR21,YR2#,31..5F198211-198808

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCR21,YR2#,31..5F198211-198808

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCR21,YR2#,31..5F198211-198808

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCR21,YR2#,31..5F198211-198808

9161140814

main91611-40814

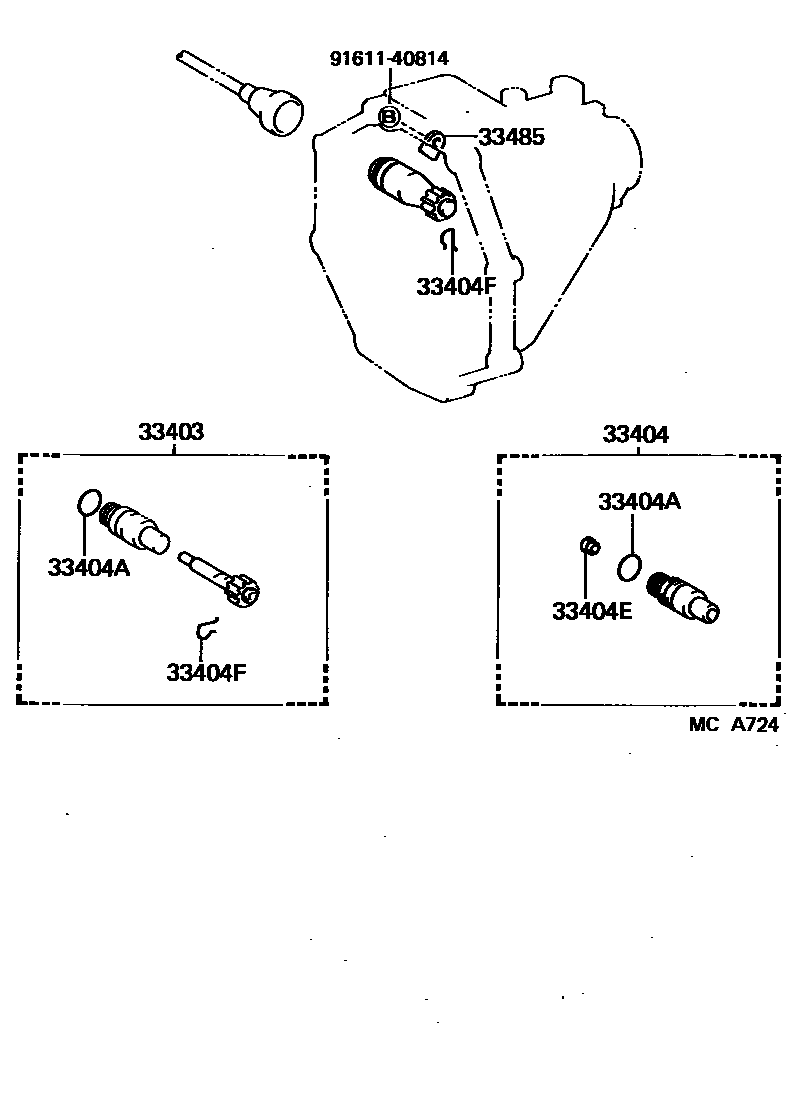

7 parts on this diagram · 1 diagram in section
