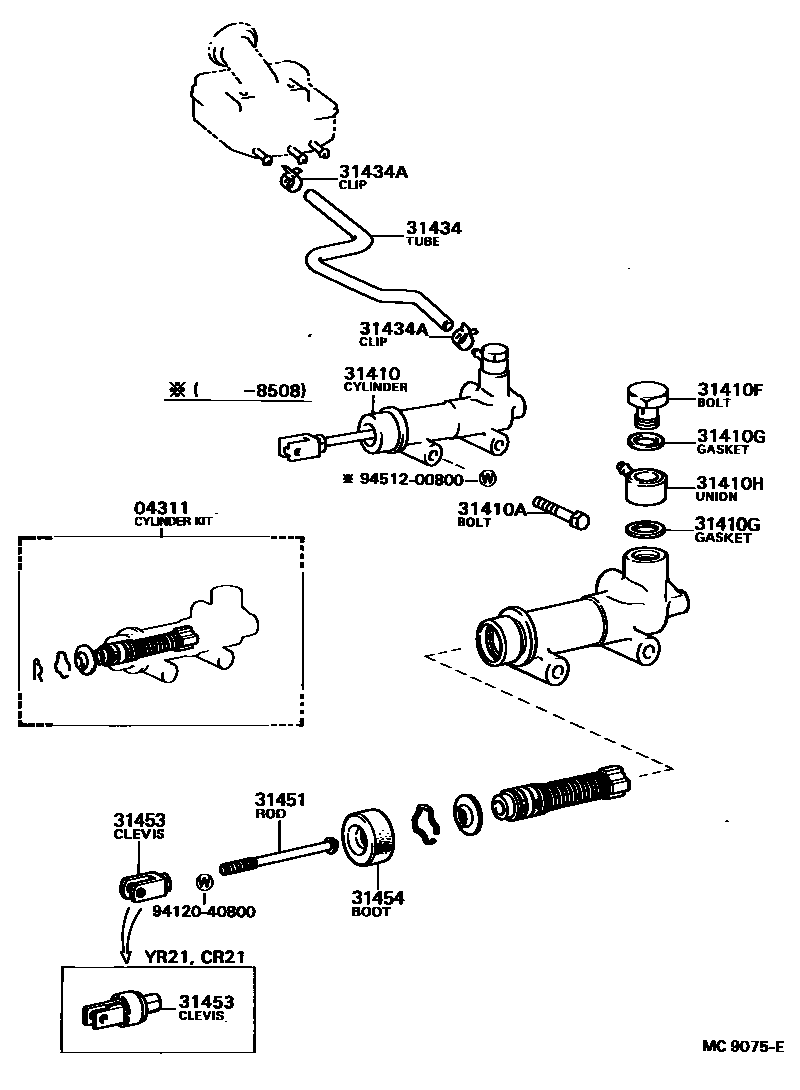

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iYR20..5F198211-198401

sub04311-14012

main04311-14030iCR21,YR2#,31..5F198609-198704

sub04311-14031

main04311-14031iCR21,YR2#,31..5F198704-198808

sub04311-14032

main04311-30080iCR21198305-198401

sub04311-14020

main04311-30090iCR21,YR2#,31..5F198401-198609

sub04311-30091

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28020iYR20..RHD..5F198211-198408

sub31420-28021

main31420-28030iYR20..LHD..5F198211-198408

sub31420-28031

main31420-28041iYR21..RHD..5F198305-198508

sub31420-28042

main31420-28051iCR21..LHD198305-198508

sub31420-28070

main31420-28060iCR21..RHD198403-198508

sub31420-28061

main31420-28070iCR21..LHD198403-198704

sub31420-28071

main31420-28071iYR2#,31..LHD..5F198704-198710

sub31420-28072

main31420-28072iYR2#,31..LHD..5F198710-198808

main31420-28090iCR21,YR2#,31..RHD..5F198508-198704

sub31420-28091

main31420-28091iCR21,YR2#,31..RHD..5F198704-198710

sub31420-28092

main31420-28092iCR21,YR2#,31..RHD..5F198710-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865iCR21,YR2#..5F198211-198508

main91611-60865iCR21,YR2#,31..5F198508-198808

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16002iYR2#,31..LHD..5F198512-198808

main90401-16078iCR21,YR2#..5F198211-198808

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iCR21,YR2#,31..5F198211-198808

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10003iYR2#,31..LHD..5F198512-198808

main90405-10125iCR21,YR2#,31..RHD..5F198211-198808

31434TUBE, CLUTCH RESERVOIR

main31434-28020iCR21,YR2#..RHD..5F198211-198508

main31434-28030iCR21,YR2#..LHD..5F198211-198808

main31434-28040iCR21,YR2#,31..RHD..5F198508-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iCR21,YR2#,31..5F198211-198808

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iYR20..5F198211-198408

main31451-22070iCR21,YR2#,31..5F198609-198808

main31451-30060iCR21,YR2#,31..5F198305-198609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28010iCR21198403-198405

sub31404-28011

main31404-28011iCR21198405-198808

sub31404-28012

main31404-30041iYR21..5F198305-198508

main31453-22010iYR20..5F198211-198408

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iCR21,YR2#,31..5F198211-198808

9412040800

main94120-40800

9451200800

main94512-00800

13 parts on this diagram · 1 diagram in section
