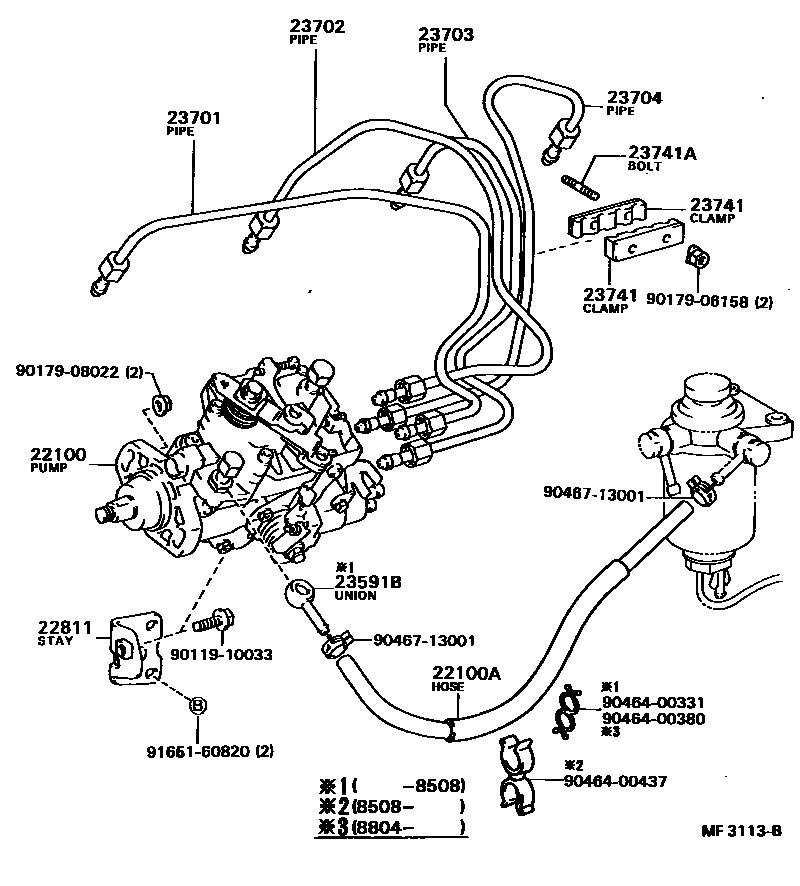

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64250i2C..CR21..DLX198305-198501

sub22100-64260

main22100-64260i2C..CR21..GL198305-198508

main22100-6A060i2C..CR21198508-198608

main22100-6A061i2C..CR21198608-198808

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14020i2C..CR21198508-198808

L=480

main95332-08040i2C..CR21198305-198508

L=400(*H,L=380)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2C..CR21198305-198808

23591BUNION(FOR INJECTION PUNP INLET)

main90405-08016i2C..CR21198305-198508

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64031i2C..CR21198305-198508

main23701-64080i2C..CR21198508-198808

sub23701-64070

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64031i2C..CR21198305-198508

main23702-64080i2C..CR21198508-198808

sub23702-64070

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64031i2C..CR21198305-198808

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64031i2C..CR21198305-198508

main23704-64080i2C..CR21198508-198808

sub23704-64070

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020i2C..CR21198305-198808

sub23741-64021

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2C..CR21198508-198808

sub90116-06095

main92122-60622i2C..CR21198305-198508

9011910033

main90119-10033

9017906158

main90179-06158

9017908022

main90179-08022

9046400331

main90464-00331

9046400380

main90464-00380

9046400437

main90464-00437

9046713001

main90467-13001

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
