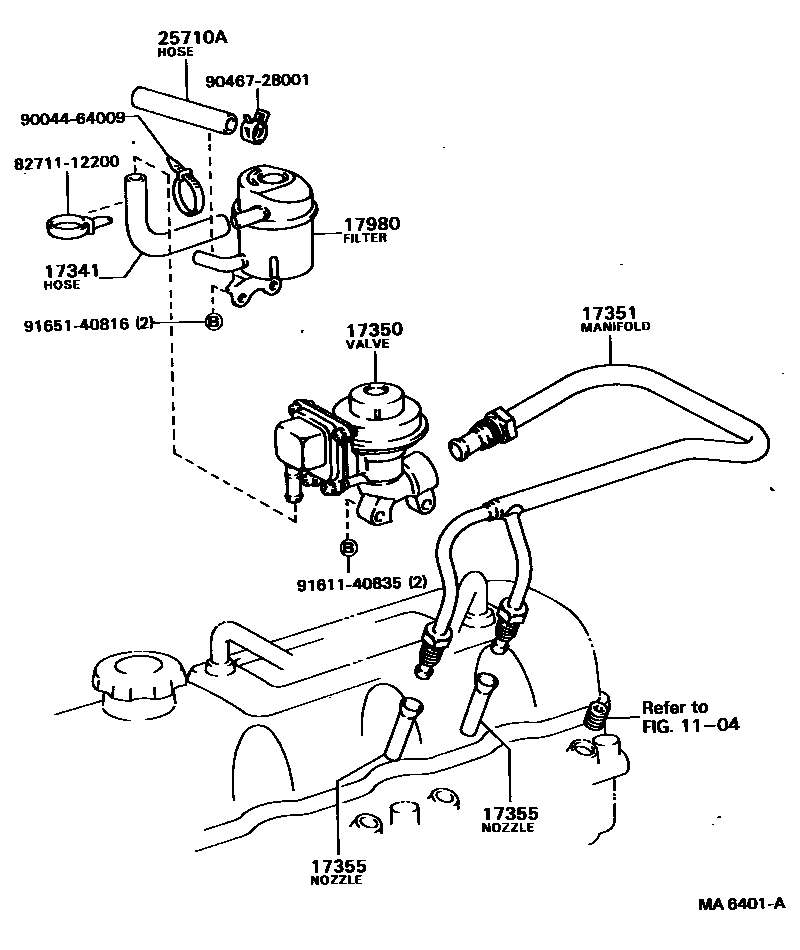

MANIFOLD AIR INJECTION SYSTEM

0001 1 0003 1

1104

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010i2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR198211-198808

17350VALVE ASSY, REED

main17350-71030i2YC..YR20;2Y..YR20..LHD..EUR198211-198311

sub17350-71031

main17350-71031i3Y..YR21..LHD..EUR198609-198701

SWEDEN SPEC

sub17350-71033

main17350-71031i2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR198311-198508

sub17350-71033

main17350-71031i3Y..YR21..LHD..EUR198508-198511

SWEDEN & SWITZERLAND SPEC

sub17350-71033

main17350-71032i3Y..YR21..LHD..EUR198511-198609

SWEDEN & SWITZERLAND SPEC

sub17350-71031

17351MANIFOLD, AIR INJECTION

main17306-71010i3Y#..YR21..ARL198508-198808

main17351-71020i2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR198211-198508

main17351-71020i3Y..YR21..LHD..EUR198508-198610

SWEDEN & SWITZERLAND SPEC

main17351-71020i3Y..YR21..DLX..EUR;3Y..YR21..LHD..4FC..EUR198610-198701

SWEDEN SPEC

17355NOZZLE, AIR INJECTION

main17355-71010i2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR198211-198808

17980FILTER ASSY, AIR SUCTION

main17980-71011i3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR198211-198608

sub17980-71012

sub17342-72011

main17980-71012i3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR198608-198808

main17980-71030i2YC,3Y#..YR2#..5F..ARL;2Y,3Y..YR2#..LHD..5F..EUR198305-198508

sub17980-71031

main17980-71030i3Y..YR21..LHD..5F..EUR198508-198608

SWEDEN & SWITZERLAND SPEC

sub17980-71031

main17980-71031i3Y..YR21..LHD..5F..EUR198608-198701

SWEDEN SPEC

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90445-29003i2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR198211-198808

sub90445-31010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9004464009

main90044-64009

9046728001

main90467-28001

9161140835

main91611-40835

9165140816

main91651-40816

12 parts on this diagram · 2 diagrams in section
