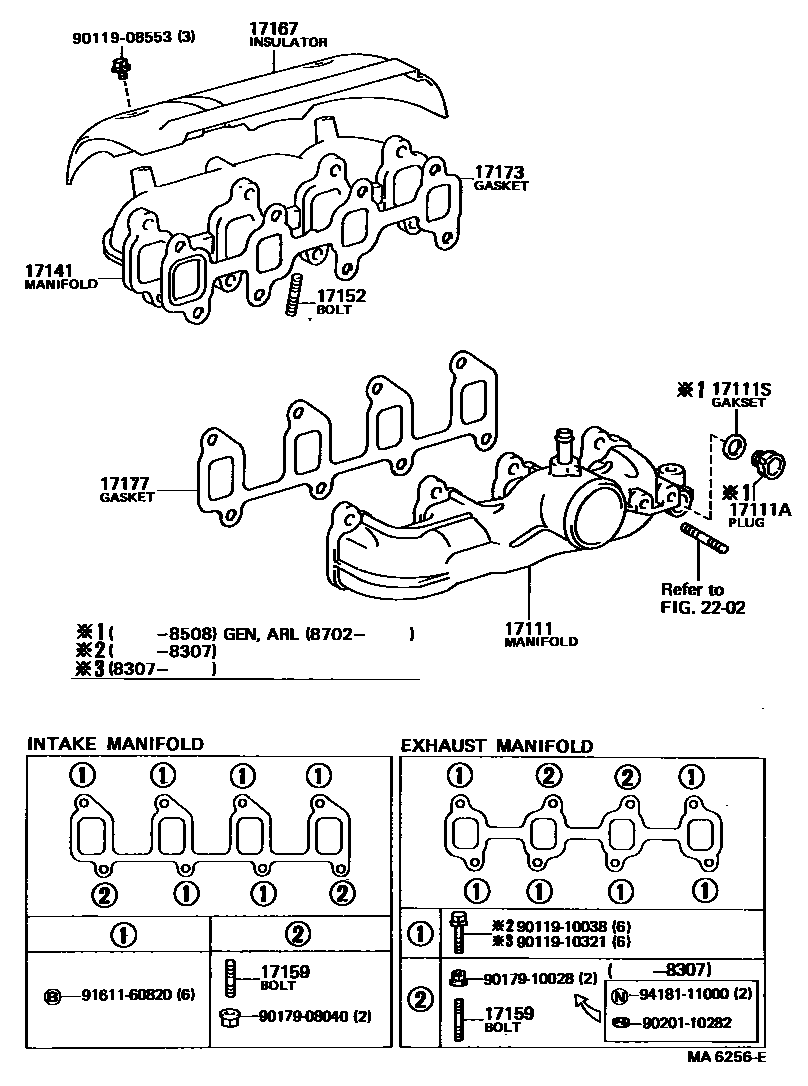

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-64010i2C..CR21198305-198508

main17101-64080i2C..CR21198508-198808

main17111-71010i2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR198211-198808

main17111-71020i2Y,3Y..YR20,21198211-198808

main17111-73011i4YEC..YR22,31198508-198808

17111APLUG, NO.1

main90341-18006i2C..CR21..ARL,GEN198305-198808

main90345-51025i4YEC..YR22,31198508-198808

17111SGASKET(FOR MANIFOLD PLUG)

main90430-18001i2C..CR21..ARL,GEN198305-198808

17141MANIFOLD, EXHAUST

main17141-64010i2C..CR21198305-198307

main17141-64011i2C..CR21198307-198808

sub17141-64012

sub17173-64060

main17141-71010i3Y#..YR21..ARL198508-198808

main17141-71020i3Y..YR21..ARL198511-198808

NEW ZEALAND SPEC

main17141-71020i2Y#,3Y#..YR2#198211-198808

main17141-72010i4YEC..YR22,31198508-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2C..CR21198211-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i2Y#,3Y#,4YEC..YR2#,31198211-198808

main90116-10095i2C..CR21198307-198808

EXHAUST MANIFOLD SIDE

main92122-60820i2C..CR21198305-198808

INTAKE MANIFOLD SIDE

main92122-61032i2C..CR21198305-198307

EXHAUST MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64020i2C..CR21198305-198808

main17167-71020i2Y#,3Y#..YR20,21198211-198808

main17167-73010i4YEC..YR22,31198508-198710

sub17167-73011

main17167-73011i4YEC..YR22,31198710-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64020i2C..CR21198305-198808

sub17173-64050

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i2C..CR21198305-198808

sub17177-64020

2202

9011908553

main90119-08553

9011910038

main90119-10038

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9020110282

main90201-10282

9161160820

main91611-60820

9418111000

main94181-11000

18 parts on this diagram · 3 diagrams in section
