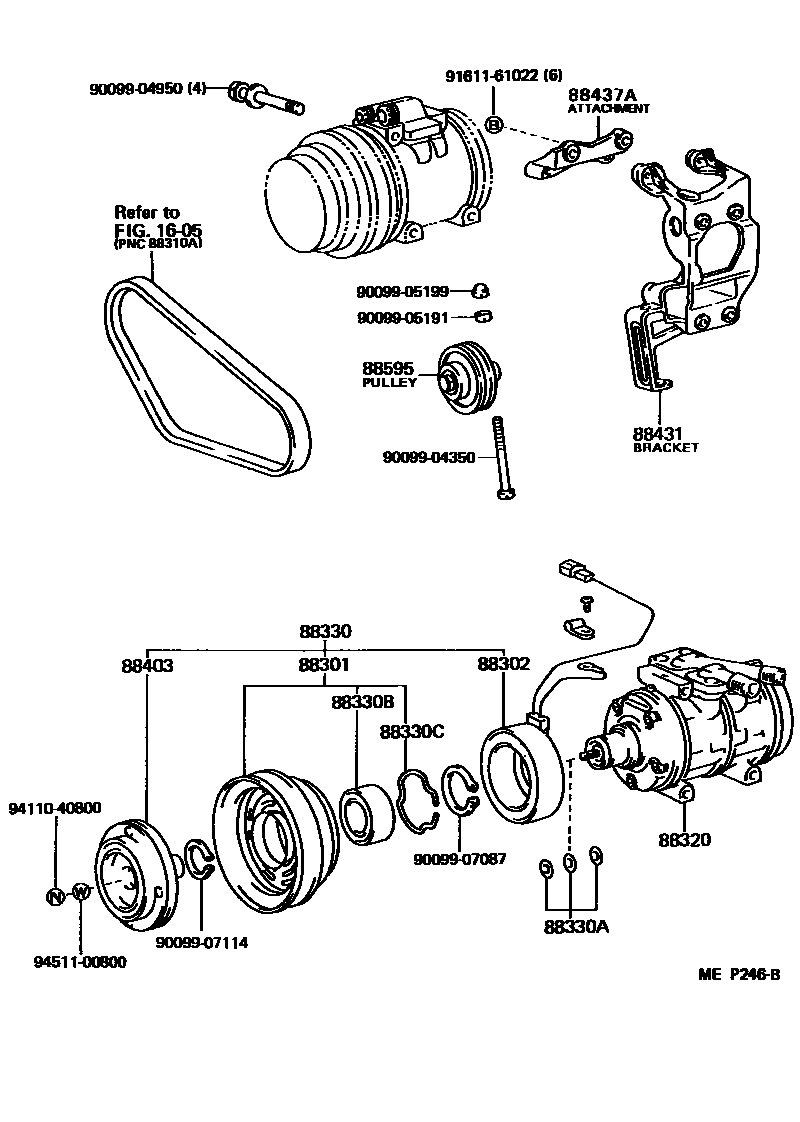

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iKM30198903-199201

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iKM30198903-199005

main88411-60040iKM30199005-199201

88320COMPRESSOR ASSY, COOLER

main88320-27090iKM30198903-199005

sub88320-27091

main88320-27091iKM30199005-199201

88330CLUTCH ASSY, MAGNET

main88410-22080iKM30198903-199005

sub88410-60140

main88410-60140iKM30199005-199201

sub88410-36390

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iKM30198903-199201

88330BBEARING, MAGNET CLUTCH

main90099-10133iKM30198903-199201

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKM30198903-199201

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKM30198903-199201

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-27030iKM30198903-199201

88437AATTACHMENT, COMPRESSOR

main88437-27030iKM30198903-199201

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35020iKM30198903-199201

9009904350

main90099-04350

9009904950

main90099-04950

9009905191

main90099-05191

9009905199

main90099-05199

9009907087

main90099-07087

9009907114

main90099-07114

9161161022

main91611-61022

9411040800

main94110-40800

9451100800

main94511-00800

21 parts on this diagram · 2 diagrams in section
