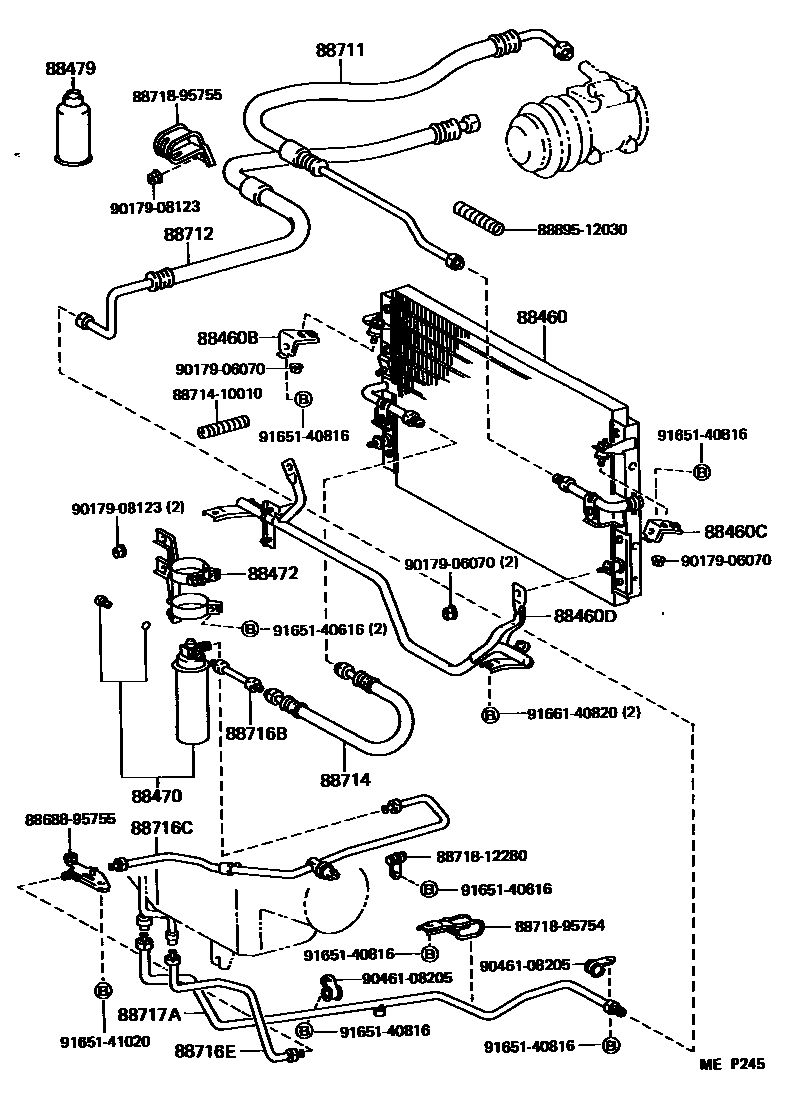

HEATING & AIR CONDITIONING - COOLER PIPING

88460CONDENSER ASSY, COOLER

main88460-95711iKM30198903-199201

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95743iKM30198903-199201

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95744iKM30198903-199201

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-95745iKM30198903-199201

88470RECEIVER & DRYER ASSY, COOLER

main88471-16010iKM30198903-199201

88472BRACKET, RECEIVER TANK, NO.1

main88472-95705iKM30198903-199201

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iKM30198903-198910

400G

sub90986-02004

sub90986-02005

main90986-02004iKM30198910-199201

250G

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-95716iKM30198903-199201

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95717iKM30198903-199201

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-95710iKM30198903-199201

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-95746iKM30198903-199201

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-95735iKM30198903-199201

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-95733iKM30198903-199201

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-95724iKM30198903-199201

8868895755BRACKET, COOLER DIAPHRAGM

main88688-95755

8871410010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10010

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871895754PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95754

8871895755PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95755

8889512030HOLDER, FUSE

main88895-12030

9017906070

main90179-06070

9017908123

main90179-08123

9046108205

main90461-08205

9165140616

main91651-40616

9165140816

main91651-40816

9165141020

main91651-41020

9166140820

main91661-40820

27 parts on this diagram · 1 diagram in section
