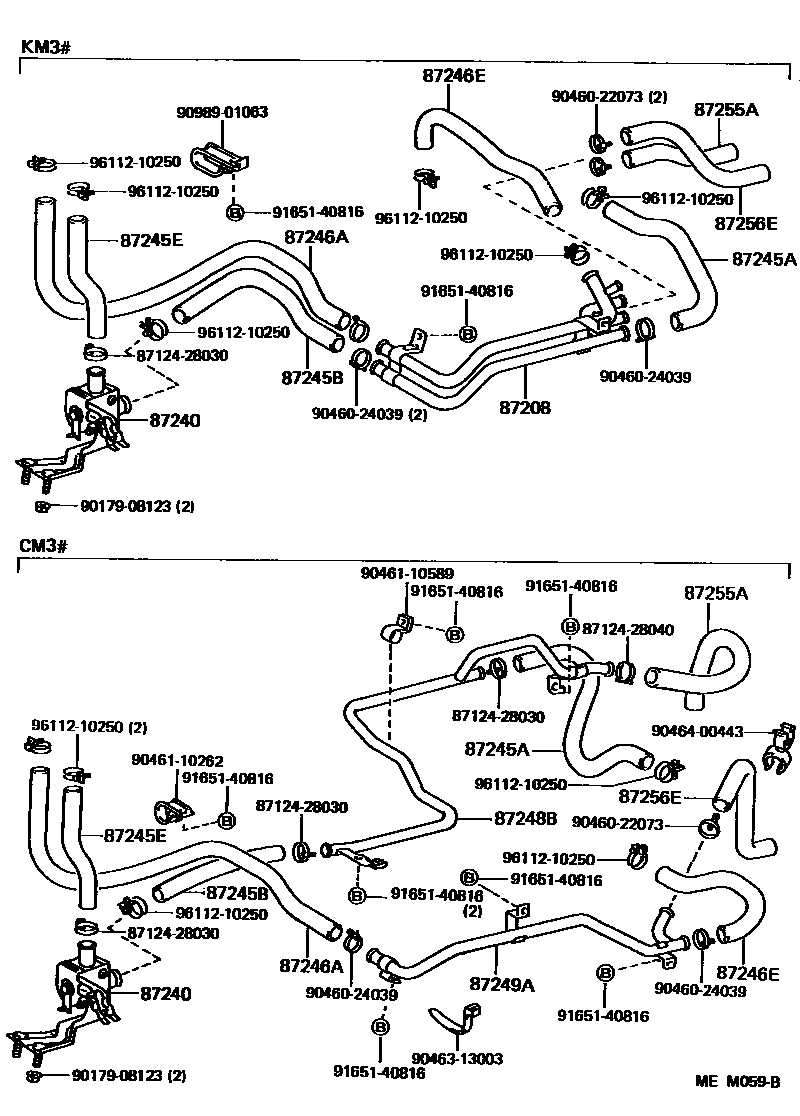

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT HEATER PIPING 0002 1REAR HEATER PIPING

87208PIPE SUB-ASSY, HEATER WATER

main87208-95731iCM3#..VSG198808-199201

main87208-95748iKM36..RHD198808-199201

main87208-95749iKM3#..LHD..STD198808-199201

main87208-95750iKM3#..VSG..STD198808-199201

W(RR HEATER)

87240VALVE ASSY, HEATER WATER

main87240-95712iCM3#,KM3#198808-199201

87245AHOSE, HEATER WATER, INLET A

main87245-95734iKM36..RHD198808-199201

main87245-95735iKM3#..VSG198808-199201

main87245-95736iCM3#198808-199201

main99556-30500iKM3#..LHD..STD198808-199201

L=500

87245BHOSE, HEATER WATER, INLET B

main99556-30240iCM3#..LHD198809-199201

*H,L=240

sub99556-30300

main99556-30260iCM3#198808-199201

*H,L=260

sub99556-30300

main99556-30380iKM3#198808-199201

*H,L=380

sub99556-30500

87245EHOSE, HEATER WATER, INLET E

main99556-30210iCM3#,KM3#198808-199201

*H,L=210

sub99556-30300

87246AHOSE, HEATER WATER, OUTLET A

main99556-30500iKM3#198808-199201

L=500

main99556-30700iCM3#198808-199201

L=700

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95732iKM36..RHD198808-199201

main87245-95733iKM3#..LHD198808-199201

main87245-95739iCM3#198808-199201

87248BPIPE, HEATER WATER INLET, B

main87208-95721iCM3#198808-199201

main87208-95722iCM36..05S198808-199201

W(RR HEATER)

87249APIPE, HEATER WATER OUTLET, A

main87208-95746iCM36..05S198808-199201

W(RR HEATER)

main87208-95747iCM3#198808-199201

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95738iCM3#..VSG198808-199201

main87245-95748iKM3#..VSG198808-199201

sub87245-95J35

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95741iCM3#..VSG198808-199201

main99556-20300iKM3#..VSG198808-199201

L=300

8712428030CLAMP, HEATER

main87124-28030

8712428040CLAMP, HEATER

main87124-28040

9017908123

main90179-08123

9046022073

main90460-22073

9046024039

main90460-24039

9046110262

main90461-10262

9046110589

main90461-10589

9046313003

main90463-13003

9046400443

main90464-00443

9098901063

main90989-01063

9165140816

main91651-40816

9611210250

main96112-10250

23 parts on this diagram · 2 diagrams in section
