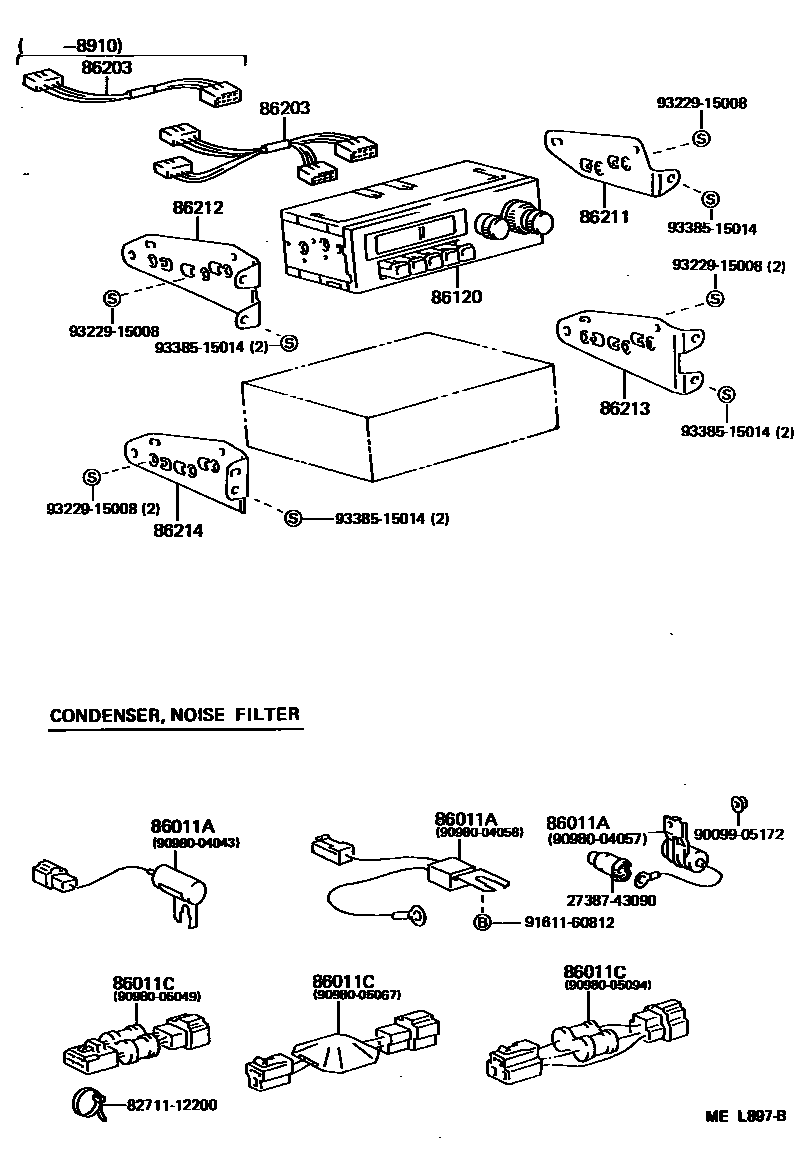

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04043iKM3#198808-199201

REGULATOR

main90980-04057iCM3#,KM3#198808-199201

ALTERNATOR

main90980-04058iKM3#198808-199201

I.G COIL

86011CFILTER, NOISE

main90980-05049iCM3#,KM3#198808-199201

WIPER MOTOR

main90980-05067iCM3#,KM3#198808-199201

STOP LAMP SW

main90980-05094iCM3#,KM3#198808-199201

FLASHER RELAY

86120RECEIVER ASSY, RADIO

main86120-16350iCM36,KM36..LHD198808-199201

FUJITSU TEN,AM 5-BUTTON

sub86120-10290

main86120-22391iCM36,KM36..LHD198808-198910

FUJITSU TEN,LW/MW/UKW 5-BUTTON

main86120-2B110iCM3#,KM3#198910-199102

LW/MW/UKW MPX ETR W(CASSETTE)

sub86120-17240

main86120-2B180iCM3#,KM3#199102-199201

MATSUSHITA,LW/MW/UKW/ MPX ETR W(CASSETTE)

main86120-32102iCM3#,KM3#198808-198910

MATSUSHITA,LW/MW/UKW MPX ETR W(CASSETTE)

main86120-32111iCM3#,KM3#198808-199201

FUJITSU TEN,LW/MW/UKW MPX ETR

main86120-32241iCM3#,KM3#198808-198910

FUJITSU TEN,LW/MW/UKW ETR

86203WIRE, RADIO

main86203-16100iCM36,KM36..LHD198808-198910

main86203-95718iCM3#,KM3#198910-199201

86211BRACKET, RADIO, NO.1

main86211-95714iCM30,KM30;CM36,KM36..RHD198808-199201

main86215-95700iCM3#,KM3#198808-199201

W/O(RADIO)

86212BRACKET, RADIO, NO.2

main86212-95704iCM3#,KM3#198808-199201

W/O(RADIO)

main86212-95706iCM30,KM30;CM36,KM36..RHD198808-199201

86213BRACKET, RADIO, NO.3

main86211-95712iCM36,KM36..RHD198808-199201

main86211-95713iCM3#,KM3#..LHD198808-199201

86214BRACKET, RADIO, NO.4

main86212-95704iCM3#,KM3#..LHD198808-199201

main86212-95705iCM36,KM36..RHD198808-199201

2738743090INSULATOR, TERMINAL

main27387-43090

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009905172

main90099-05172

9098004043

main90980-04043

9098004057

main90980-04057

9098004058

main90980-04058

9098005049

main90980-05049

9098005067

main90980-05067

9098005094

main90980-05094

9161160812

main91611-60812

9322915008

main93229-15008

9338515014

main93385-15014

20 parts on this diagram · 2 diagrams in section
