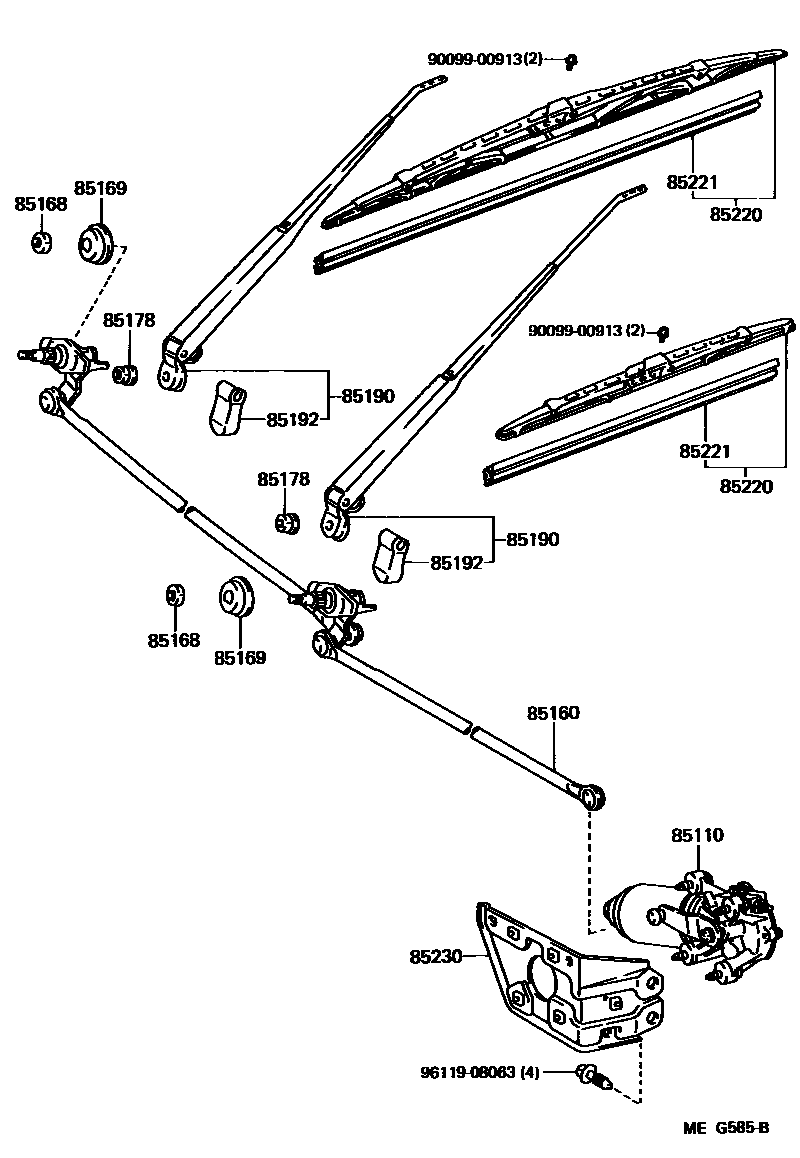

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95718iCM36,KM36..RHD198808-199201

sub85110-27020

main85110-95719iCM3#,KM3#..LHD198808-199201

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM36,KM36..RHD198808-199201

main85160-95708iCM3#,KM3#..LHD198808-199201

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iCM3#,KM3#198808-199201

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701iCM3#,KM3#198808-199201

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iCM3#,KM3#198808-199201

85190ARM ASSY, WINDSHIELD WIPER

main85190-95716iCM3#,KM3#..LHD198808-199201

RH

main85190-95717iCM36,KM36..RHD198808-199201

RH

main85210-95705iCM36,KM36..RHD198808-199201

LH

main85210-95707iCM3#,KM3#..LHD198808-199201

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iCM3#,KM3#198808-199201

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14390iCM3#,KM3#..LHD198808-199201

RH

main85220-22500iCM36,KM36..RHD198808-199201

LH

main85220-32410iCM3#,KM3#..LHD198808-199201

LH

main85220-32430iCM36,KM36..RHD198808-199201

RH

85221BLADE, WINDSHIELD WIPER

main85221-12220iCM3#,KM3#..LHD198808-199201

RH

sub85214-12H90

main85221-95703iCM36,KM36..RHD198808-199201

LH

sub85214-12H90

main85221-95705iCM36,KM36..RHD198808-199201

RH

sub85214-27H90

main85221-95705iCM36,KM36..RHD198808-199201

LH

sub85214-27H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM36,KM36..RHD198808-199201

main85269-95701iCM3#,KM3#..LHD198808-199201

9009900913

main90099-00913

9611908063

main96119-08063

12 parts on this diagram · 1 diagram in section
