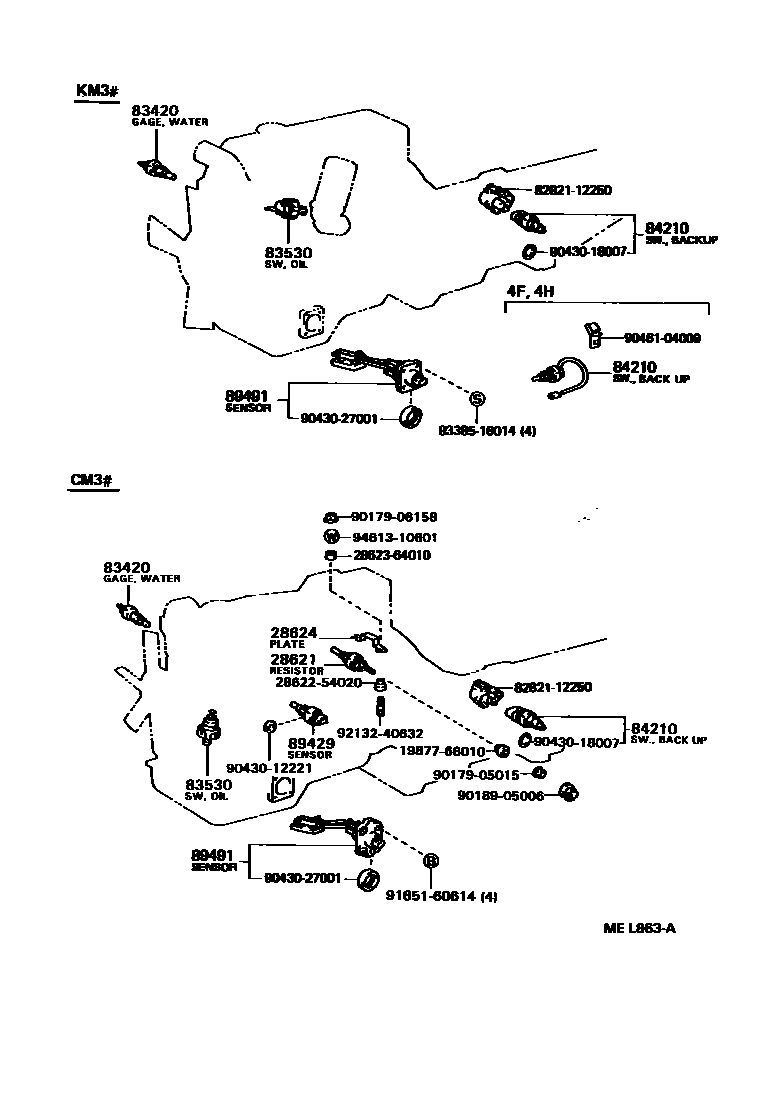

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

28621RESISTOR, GLOW PLUG

main28621-64011i2C..CM3#198808-199201

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CM3#198808-199201

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCM3#,KM3#198808-199201

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30060iCM3#198808-199201

sub83530-60030

main83530-30080iKM3#198808-199201

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCM3#,KM3#..5F,5H198808-199201

sub84210-52050

main84210-26030iKM36..4F,4H198808-199201

89429SENSOR, OIL TEMPERATURE

main89422-20010iCM3#198808-199201

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKM3#198808-199201

main89491-27030iCM3#198808-199201

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

8282112250RETAINER, HEADLAMP HARNESS

main82821-12250

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9165160614

main91651-60614

9213240632

main92132-40632

9338516014

main93385-16014

9461310601

main94613-10601

22 parts on this diagram · 8 diagrams in section
