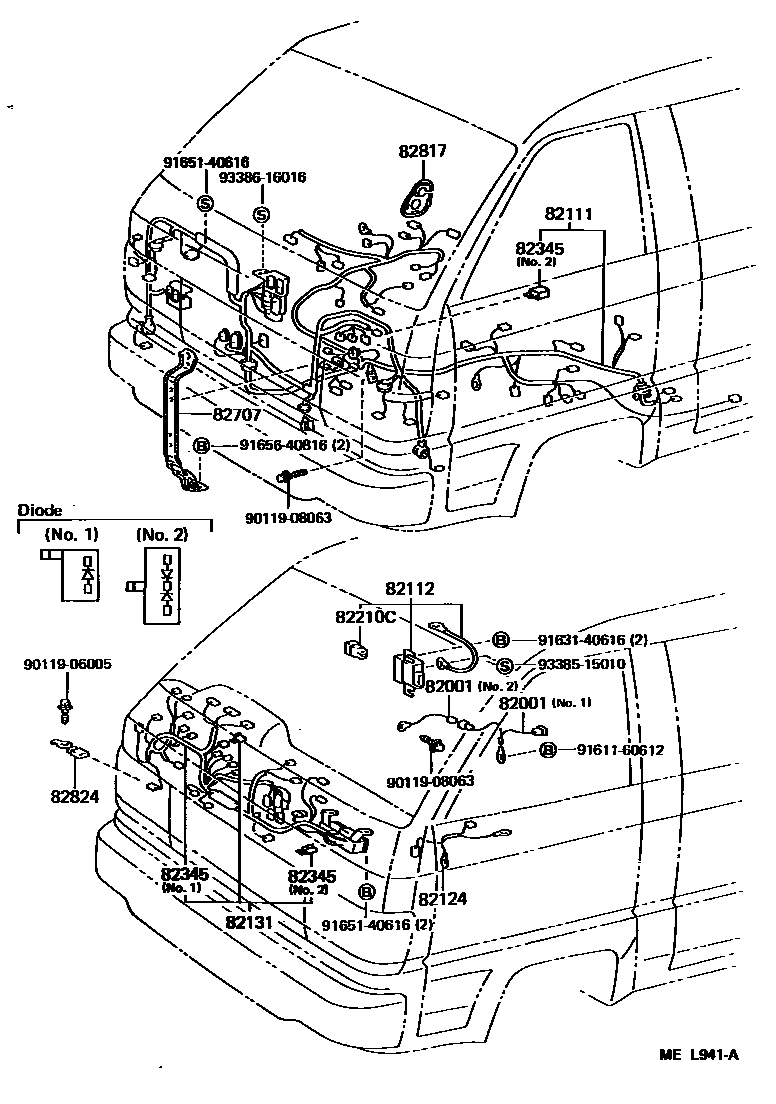

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.4
NO.2
NO.3
NO.2
NO.1
82111WIRE, ENGINE ROOM MAIN
DENMARK SPEC
DENMARK SPEC
UNITED KINGDOM SPEC
W(*RWD) OR W(LIGHTNING WARNING) OR W(*RW)
SWITZERLAND SPEC OR AUSTRIA SPEC
AUSTRIA SPEC
SWITZERLAND SPEC
DENMARK SPEC
ICELAND SPEC
NORWAY SPEC
FINLAND SPEC
W(FUEL HEATER) OR W(LIGHTNING WARNING) OR W(REAR HEATER)
W(FUEL HEATER) OR W(LIGHTNING WARNING)
FINLAND SPEC
DENMARK SPEC
FRANCE TERRITORIES & W(*AIC:FACTORY OPT)
*FRG
*FRG
82112WIRE, ENGINE ROOM, NO.2
82131WIRE, COWL
UNITED KINGDOM SPEC
W(LIGHTNING WARNING) OR W(*RW)---EXCL(*RWD)
*FRG OR W(LIGHTNING WARNING) OR W(*RW)---EXCL(*RWD)
W(REAR WINDOW DEFOGGER)
FINLAND SPEC OR FINLAND SPEC & W(*RWD)
DENMARK SPEC OR DENMARK SPEC & W(*RWD)
*FRG OR *FRG & W(*RWD)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
50A,TERM.:MALE,RED
82345DIODE
NO.1
NO.2
82707SUPPORT SUB-ASSY, WIRING HARNESS
82817PROTECTOR, WIRING HARNESS, NO.1
82824CONNECTOR, WIRING HARNESS
9011906005
main90119-06005
9011908063
main90119-08063
9161160612
main91611-60612
9163140616
main91631-40616
9165140616
main91651-40616
9165640816
main91656-40816
9338515010
main93385-15010
9338616016
main93386-16016
18 parts on this diagram · 7 diagrams in section
