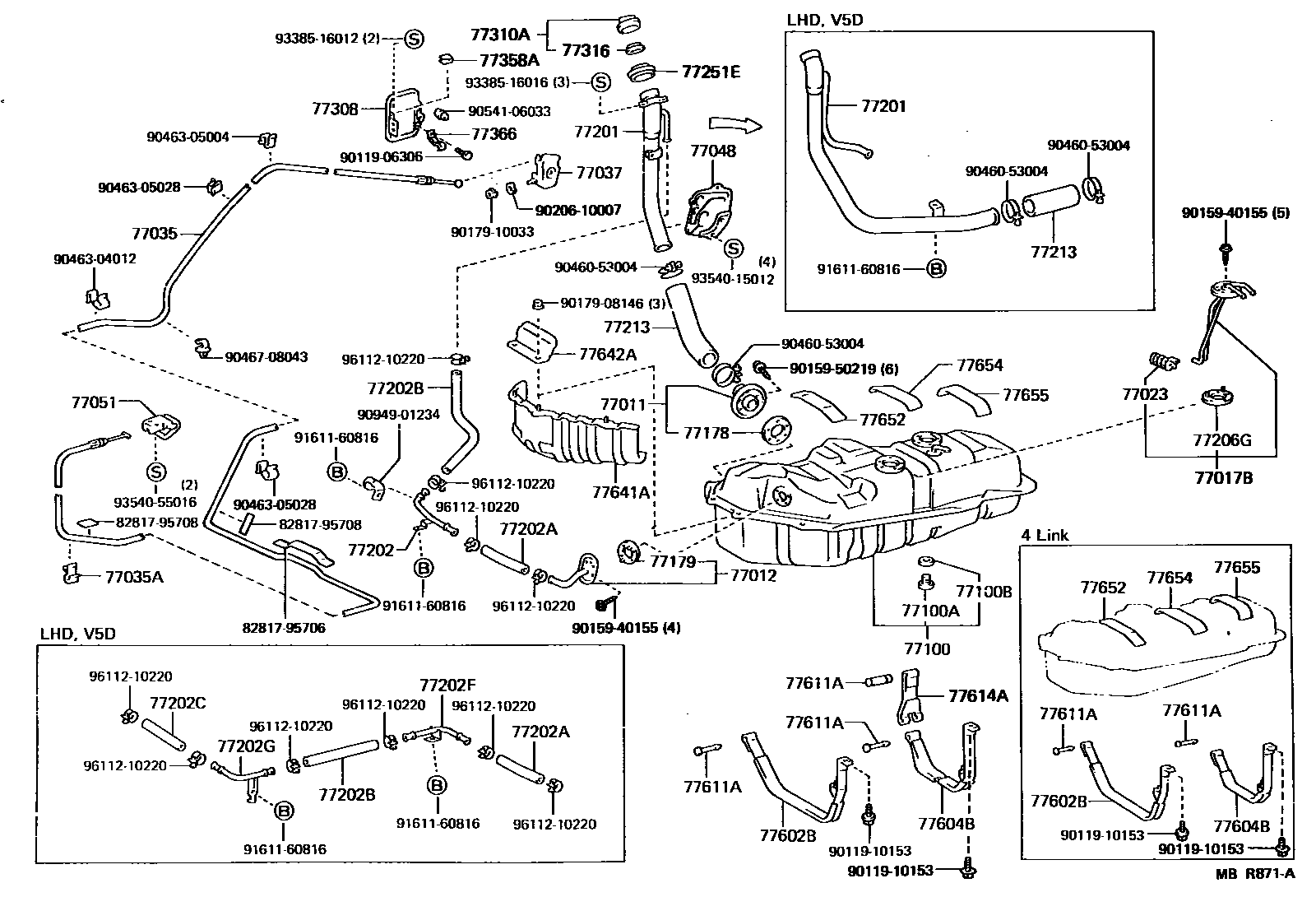

FUEL TANK & TUBE

0001 1 0002 1 0003 1SWITZERLAND SPEC & AUSTRIA SP

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-26020iCM3#,KM3#198911-199201

main77011-27010iCM3#,KM3#198808-198909

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-27061iCM3#,KM3#198808-199201

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-27100iKM36..LHD..V4D..5F..02S198808-199008

AUSTRIA SPEC

main77017-27110iCM3#198808-199201

main77017-27120iKM3#198808-199201

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iKM3#198808-199201

main77023-32010iCM3#198808-199201

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95700iCM36,KM36..RHD198808-199201

main77035-95702iCM3#,KM3#..LHD198808-199201

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iCM3#,KM3#198808-199201

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95700iCM3#,KM3#198808-199201

77048SEAL SUB-ASSY, FUEL INLET PIPE, UPPER

main77048-95700iCM3#,KM3#..LHD198808-199201

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-95700iCM3#,KM3#198808-199008

main77051-95700-01iCM30,KM30..DLX199008-199201

BLACK,TRIM1#,4#

main77051-95701iKM30..DLX;KM36..LHD..V4D..02S198808-199201

*FRG

77100TANK ASSY, FUEL

main77001-27310iCM3#..LHD198808-199201

main77001-27320iKM36..RHD198808-199201

main77001-27330iCM36..RHD198808-199201

main77001-27340iKM3#..LHD198808-199201

77100APLUG(FOR FUEL TANK)

main90105-12116iCM3#,KM3#198808-199201

77100BGASKET(FOR FUEL TANK)

main90430-12245iCM3#,KM3#198808-199201

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iCM3#,KM3#198808-199201

77179RETAINER, FUEL TANK MOUNTING, FRONT

main77179-14030iCM3#,KM3#198808-199201

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27110iCM36,KM36..RHD198808-199201

main77201-27190iCM3#,KM3#..LHD198808-199201

main77201-27200iKM36..5F..05S198908-199201

*FRG

77202TUBE SUB-ASSY, BREATHER

main77203-27160iCM36,KM36..RHD198808-199201

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-27140iCM3#,KM3#198808-199201

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77259-27160iCM36,KM36..RHD198808-199201

main90445-22013iCM3#,KM3#..LHD198808-199201

L=270

sub90445-22024

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-22015iCM3#,KM3#..LHD198808-199201

L=150

sub90445-22002

77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)

main77203-27170iCM3#,KM3#..LHD198808-199201

77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)

main77203-27140iCM3#,KM3#..LHD198808-199201

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iCM3#,KM3#198808-199201

77213HOSE, FUEL TANK SUB INLET

main77259-27130iCM3#,KM3#..LHD198808-199201

main77259-27230iCM36,KM36..RHD198808-199201

77251ESHIELD, FUEL TANK INLET PIPE

main77251-10010iCM3#,KM3#198808-199201

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-95701iCM3#,KM3#198808-199201

77310ACAP ASSY, FUEL TANK

main77310-12100iKM3#198808-199201

main77310-35061iCM3#198808-199201

77316GASKET, FUEL TANK CAP

main77316-12050iCM3#,KM3#198808-199201

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iCM3#,KM3#198808-199201

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95702iCM3#,KM3#198808-199201

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-27041iCM3#,KM30;KM36..LHD198808-199201

main77602-27071iKM36..RHD198808-199201

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-27020iCM30,KM30198808-199201

main77604-27030iCM36,KM36198808-199201

77611APIN (FOR FUEL TANK BAND)

main77653-27010iCM36,KM36198808-199201

L=57

main77653-28010×2iCM30,KM30198808-199201

L=53

77614ABAND, FUEL TANK, NO.2 RH

main77614-27010iCM36,KM36198808-199201

77641APROTECTOR, FUEL TANK, NO.1

main77641-27010iCM36,KM36..RHD198808-199201

main77641-27020iCM3#,KM3#..LHD198808-199201

77642APROTECTOR, FUEL TANK, NO.2

main77606-27061iCM3#,KM3#198808-199201

77652CUSHION, FUEL TANK, NO.1

main77651-27120iCM3#,KM3#198808-199201

77654CUSHION, FUEL TANK, NO.2

main77651-27131iCM3#,KM3#198808-199201

77655CUSHION, FUEL TANK, NO.3

main77651-27150iCM3#,KM3#198808-199201

8281795706PROTECTOR, WIRING HARNESS, NO.1

main82817-95706

8281795708PROTECTOR, WIRING HARNESS, NO.1

main82817-95708

9011906306

main90119-06306

9011910153

main90119-10153

9015940155

main90159-40155

9015950219

main90159-50219

9017908146

main90179-08146

9017910033

main90179-10033

9020610007

main90206-10007

9046053004

main90460-53004

9046304012

main90463-04012

9046305004

main90463-05004

9046305028

main90463-05028

9046708043

main90467-08043

9054106033

main90541-06033

9094901234

main90949-01234

9161160816

main91611-60816

9338516012

main93385-16012

9338516016

main93385-16016

9354015012

main93540-15012

9354055016

main93540-55016

9611210220

main96112-10220

60 parts on this diagram · 3 diagrams in section
