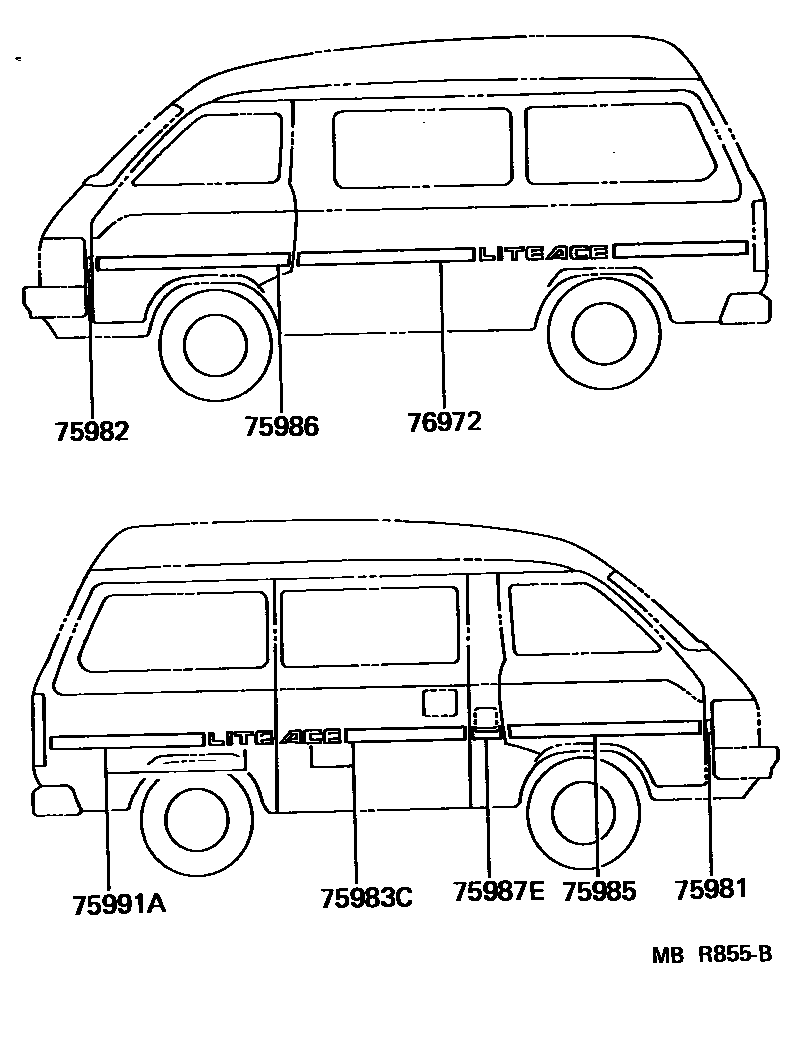

BODY STRIPE

0001 1 0002 1

75981STRIPE, FRONT FENDER, RH NO.1

main75981-95706-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75981-95706-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

75982STRIPE, FRONT FENDER, LH NO.1

main75982-95706-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75982-95706-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

75983CSTRIPE, SLIDE DOOR, RH

main75983-95704-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75983-95704-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

75985STRIPE, FRONT DOOR, RH

main75985-95722-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75985-95722-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

75986STRIPE, FRONT DOOR, LH

main75986-95722-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75986-95722-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

75987ESTRIPE, CENTER PILLAR, RH

main75987-95701-01iCM30,KM30..DLX198908-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75987-95701-03iCM30,KM30..DLX198908-199201

SILVER,168 ,3F1 ,8B2

75991ASTRIPE, QUARTER, RH

main75991-95722-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75991-95722-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2,TYPE A

76972STRIPE, QUARTER, REAR LH

main75992-95723-01iCM30,KM30..DLX198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75992-95723-03iCM30,KM30..DLX198808-199201

SILVER,3F1 ,8B2

main75992-95727-01iKM36..SRF198808-199201

BLACK,045 ,148 ,391 ,557 ,6A9

main75992-95727-03iKM36..SRF198808-199201

SILVER,3F1 ,8B2

8 parts on this diagram · 2 diagrams in section
