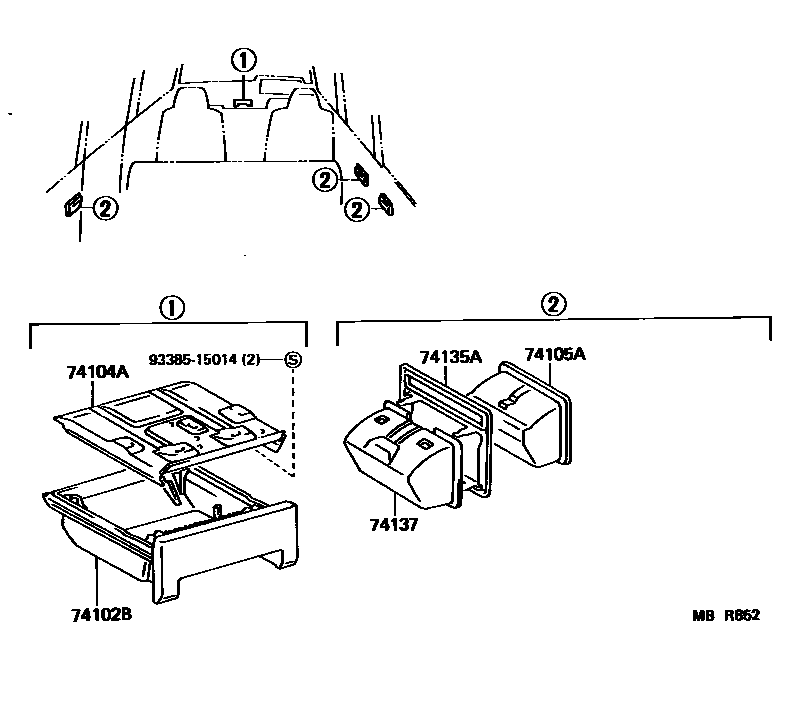

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95702-03iCM3#,KM3#198808-199201

GRAY,TRIM1#

sub74102-95703

sub74102-95702

main74102-95702-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub74102-95703

sub74102-95702

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95710iCM3#,KM3#198808-199201

74105ARECEPTACLE SUB-ASSY, REAR ASH

main74105-10010-13iCM36,KM36..05S198808-199201

GRAY,TRIM1#

sub74105-10010

main74105-10010-30iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub74105-10010

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iCM36,KM36..05S198808-199201

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iCM36,KM36..05S198808-199201

9338515014

main93385-15014

6 parts on this diagram · 1 diagram in section
