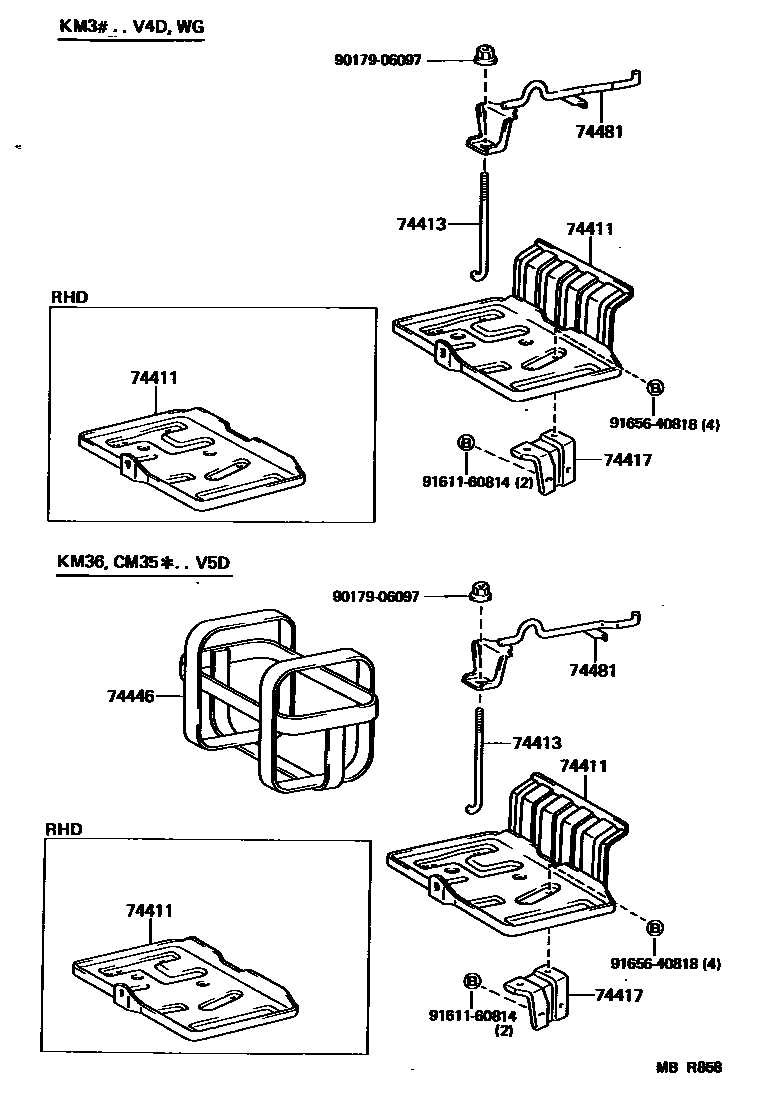

BATTERY CARRIER

74411CARRIER, BATTERY

main74410-95709iCM3#,KM3#..LHD198808-199201

main74410-95712iCM36..RHD198808-199008

COLD SPEC OR W(95D31R BATTERY)

main74410-95712iCM36..RHD199008-199201

W(95D31R BATTERY)

main74410-95713iCM3#..LHD198808-199008

COLD SPEC OR W(95D31R BATTERY)

main74410-95713iCM3#..LHD199008-199201

W(95D31R BATTERY)

main74411-95710iCM36,KM36..RHD198808-199201

74413BOLT, BATTERY CLAMP

main74451-95J00iCM3#,KM3#198808-199201

74417BRACKET, BATTERY CARRIER

main74417-95704iCM3#,KM3#198808-199201

74446BAND, BATTERY

main74446-95702iCM3#198808-199201

74481CLAMP, BATTERY HOLD DOWN

main74404-95703iKM3#198808-199201

main74404-95704iCM3#198808-199201

main74404-95705iCM3#198808-199008

COLD SPEC OR W(95D31R BATTERY)

main74404-95705iCM3#199008-199201

W(95D31R BATTERY)

9017906097

main90179-06097

9161160814

main91611-60814

9165640818

main91656-40818

8 parts on this diagram · 1 diagram in section
