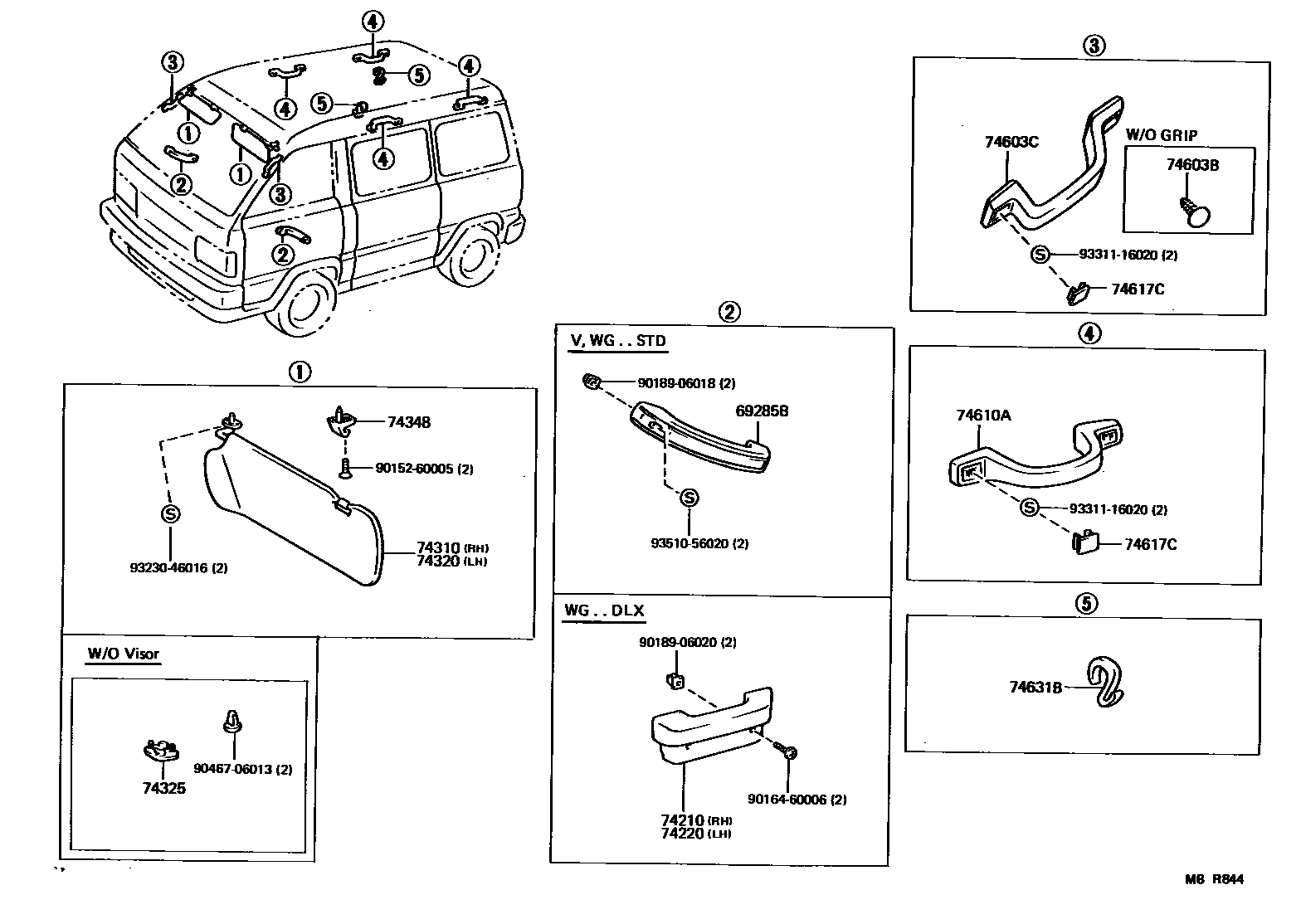

ARMREST & VISOR

69285BHANDLE, PULL

main69285-95700-03×2iCM36,KM3#..STD198808-199201

GRAY,TRIM1#

sub69285-95404

74210ARMREST ASSY, FRONT, RH

main74210-12110-03iCM30,KM30..DLX198808-199009

GRAY,TRIM1#

main74210-12110-26iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

main74210-12110-B1iCM30,KM30..DLX199009-199201

SHADOW GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74210-12110-03iCM30,KM30..DLX198808-199009

GRAY,TRIM1#

main74210-12110-26iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

main74210-12110-B1iCM30,KM30..DLX199009-199201

SHADOW GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-95718-13iKM36..LHD..V4D..02S198808-199201

GRAY,TRIM1#

main74310-95720-13iKM36..LHD..V4D..02S198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

main74310-95735-03iCM30,KM30..DLX198808-199201

GRAY,TRIM1#

main74310-95735-06iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

main74310-95737-03iKM30..DLX198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

main74310-95737-06iKM30..DLX198808-199201

WEST GERMANY SPEC,SABLE,TRIM4#

74320VISOR ASSY, LH

main74320-95709-13iCM36,KM3#..STD198808-199201

GRAY,TRIM1#

main74320-95711-13iKM36..LHD..V4D..02S198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

main74320-95719-03iCM30,KM30..DLX198808-199201

GRAY,TRIM1#

main74320-95719-06iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

main74320-95721-03iKM30..DLX198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

main74320-95721-06iKM30..DLX198808-199201

WEST GERMANY SPEC,SABLE,TRIM4#

74325COVER, VISOR BRACKET

main74325-95J00-03iCM36,KM3#..STD198808-199201

GRAY,TRIM1#

sub74318-25010

74348HOLDER, VISOR

main74348-12010-23iCM30,KM30..DLX199105-199201

GRAY,TRIM1#

sub74348-30010

main74348-12010-E0×2iCM30,KM30..DLX199105-199201

SABLE,TRIM4#

sub74348-30010

main74348-32010-03iCM30,KM30..DLX198808-199105

LIGHT GRAY,TRIM1#

sub74348-17010

sub74348-12020

main74348-32010-06×2iCM30,KM30..DLX198808-199105

SABLE,TRIM4#

sub74348-17010

sub74348-12020

74603BCLIP (FOR ASSIST GRIP)

main90467-05020-01×2iCM36,KM36..02S198808-199201

BLACK,TRIM1#

sub90467-05027

main90467-05020-23×2iCM36,KM36..02S198808-199201

GRAY,TRIM1#

sub90467-05027

74603CGRIP SUB-ASSY, ASSIST

main74603-16010-16×2iKM30..DLX198808-199201

WEST GERMANY SPEC,SABLE,TRIM4#

sub74610-16010

main74603-16010-23×2iKM30..DLX198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

sub74610-16010

main74603-95702-03×2iCM3#,KM3#..VSG198808-199201

GRAY,TRIM1#

main74603-95702-06×2iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74603-95702-03×2iKM30..DLX198808-199201

WEST GERMANY SPEC,GRAY,TRIM1#

main74603-95702-06×2iKM30..DLX198808-199201

WEST GERMANY SPEC,SABLE,TRIM4#

main74610-12030-23×2iCM3#,KM3#..VSG198808-199201

SWITZERLAND SPEC,GRAY,TRIM1#

sub74610-16010

main74610-12030-26×2iCM30,KM30..DLX198808-199201

SWITZERLAND SPEC,SABLE,TRIM4#

sub74610-16010

74617CPLUG, ASSIST GRIP

main74617-16010-23×4iCM3#,KM3#..VSG198808-199201

SWITZERLAND SPEC,GRAY,TRIM1#

main74617-16010-46×8iCM30,KM30..DLX198808-199201

SWITZERLAND SPEC,SABLE,TRIM4#

74631BHOOK, COAT

main74631-20040-03×3iKM30..DLX198808-199201

SWITZERLAND SPEC,GRAY,TRIM1#

sub74631-14010

main74631-20040-06×3iKM30..DLX198808-199201

SWITZERLAND SPEC,SABLE,TRIM4#

sub74631-14010

9015260005

main90152-60005

9016460006

main90164-60006

9018906018

main90189-06018

9018906020

main90189-06020

9046706013

main90467-06013

9323046016

main93230-46016

9331116020

main93311-16020

9351056020

main93510-56020

20 parts on this diagram · 1 diagram in section
