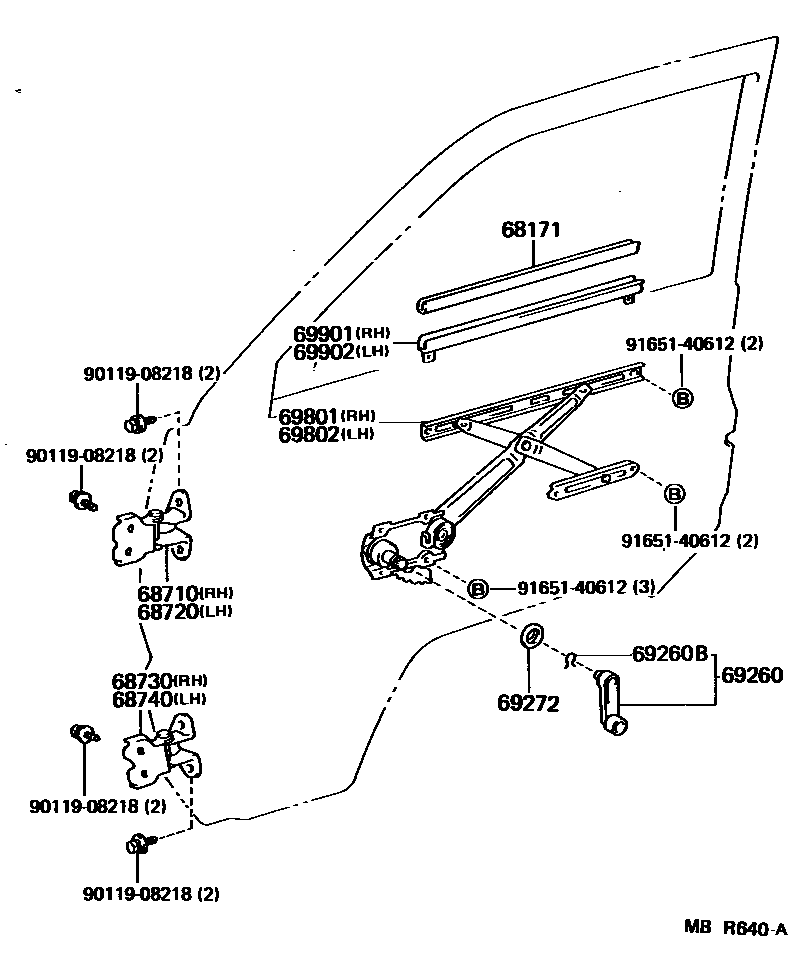

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iCM3#,KM3#198808-199201

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iCM3#,KM3#198808-199201

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iCM3#,KM3#198808-199201

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702iCM3#,KM3#198808-199201

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702iCM3#,KM3#198808-199201

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-53iCM3#,KM3#198808-199201

SHADOW GRAY,TRIM1#

sub69260-14030

main69260-14030-58iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCM3#,KM3#198808-199201

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCM30,KM30..DLX198808-199201

NATURAL WHITE,TRIM1#,4#

sub69285-22010

main69285-22010-08iCM30,KM30..DLX198808-199201

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95704iCM3#,KM3#198808-199201

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95704iCM3#,KM3#198808-199201

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iCM3#,KM3#198808-199201

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iCM3#,KM3#198808-199201

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
