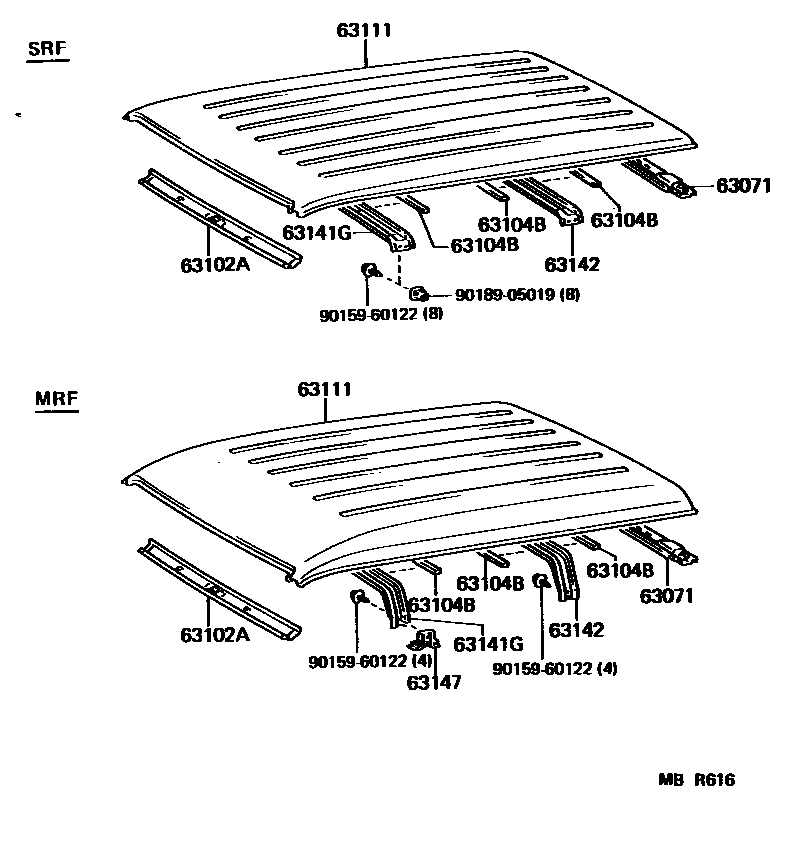

ROOF PANEL & BACK PANEL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-95703iCM36,KM3#..STD198808-199201

main63071-95704iCM30,KM30..DLX198808-199201

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM36,KM3#..STD198808-199201

main63102-95707iCM30,KM30..DLX198808-199201

63104BCUSHION, ROOF TO ROOF REINFORCEMENT

main63357-95701iCM36,KM3#..VSG..STD198808-199201

63111PANEL, ROOF

main63111-95710iKM36..SRF198808-199201

main63111-95712iCM3#,KM3#..MRF198808-199201

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-95706iCM30,KM30..DLX198808-199201

main63103-95712iKM36..4F..05S198808-199201

W(ROOM SEPARATOR)

main63141-95710iCM36,KM3#..MRF..STD198808-199201

main63142-95703iKM36..SRF198808-199201

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95703iKM36..SRF198808-199201

main63142-95705iCM3#,KM3#..MRF198808-199201

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-95703iCM3#,KM3#..LHD..MRF198808-199201

RH

main63148-95701iCM36,KM36..RHD;CM36,KM36..V5D..5F198808-199201

LH

9015960122

main90159-60122

9018905019

main90189-05019

9 parts on this diagram · 1 diagram in section
