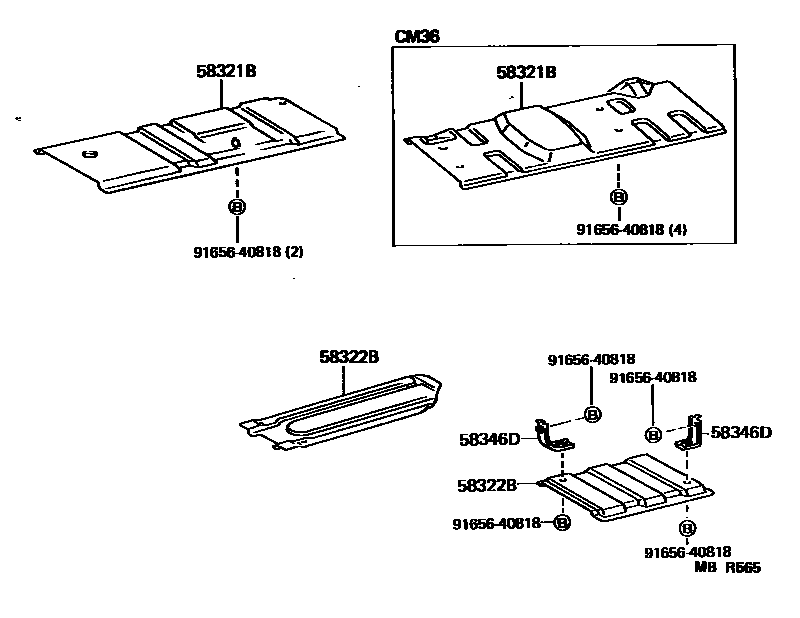

FLOOR INSULATOR

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-95703iCM3#..V4D¥3,810198808-199201

main58321-95707iKM36..RHD¥1,950198808-199201

main58321-95708iKM3#..LHD¥1,560198808-199201

58322BINSULATOR, REAR FLOOR HEAT, NO.2

main58322-95701iKM3#¥1,950198808-199201

main58322-95702iKM36..LHD..V4D..5F..02S¥2,440198808-199201

SWITZERLAND SPEC OR AUSTRIA SPEC

main58322-95702iCM30;KM36..V5D..5F¥2,440198808-199201

AUSTRIA SPEC

main58322-95702iKM30..DLX;KM36..5F..05S¥2,440198808-199201

SWITZERLAND SPEC

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-95701iCM30;KM36..V5D..5F¥1,010198808-199201

AUSTRIA SPEC,RR

main58346-95701iCM30;KM36..V5D..5F¥1,010198808-199201

SWITZERLAND SPEC OR AUSTRIA SPEC,RR

main58346-95701iKM30..DLX;KM36..5F..05S¥1,010198808-199201

SWITZERLAND SPEC,RR

main58346-95702iKM30..DLX;KM36..5F..05S¥1,010198808-199201

SWITZERLAND SPEC,FR

main58346-95702iCM30¥1,010198808-199201

AUSTRIA SPEC,FR

main58346-95702iCM30¥1,010198808-199201

SWITZERLAND SPEC OR AUSTRIA SPEC,FR

9165640818

main91656-40818¥140

4 parts on this diagram · 1 diagram in section
