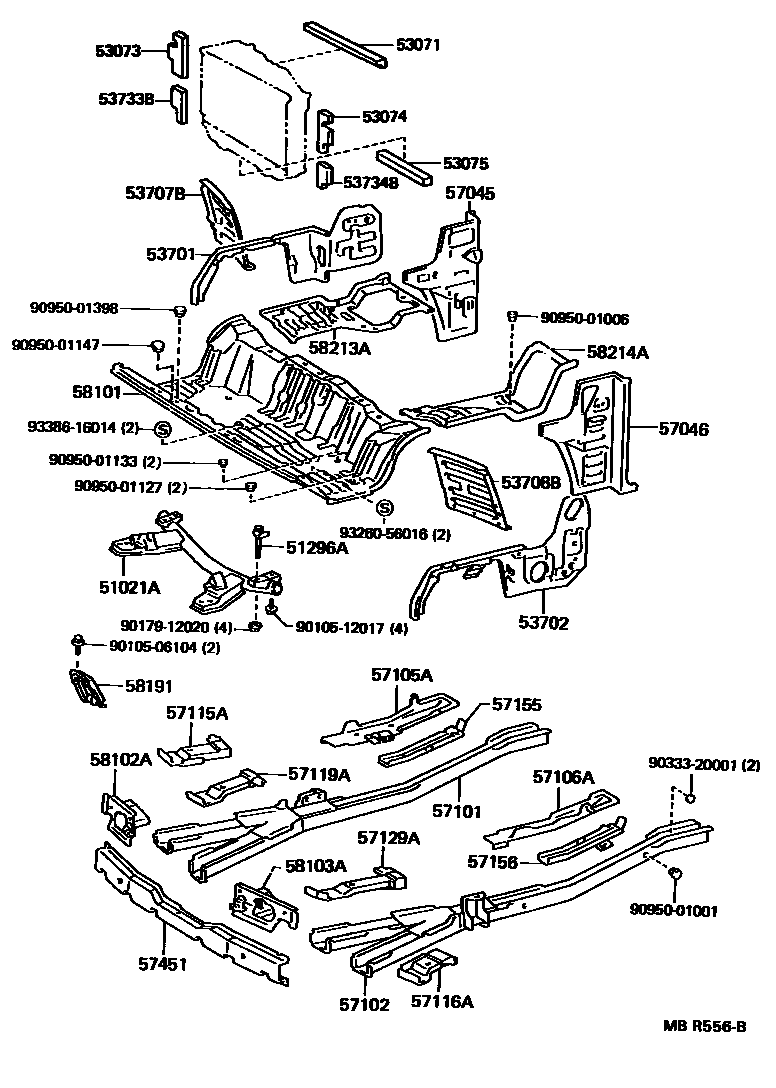

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95706iKM36..RHD¥38,200198808-199201

main51021-95708iCM3#¥20,600198808-198905

main51021-95708iCM36..02S¥20,600198905-199201

CANARY SPEC

main51021-95711iKM3#..LHD¥38,200198808-199201

main51021-95712iCM3#..VSG¥20,500198905-199201

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-95701iCM3#,KM3#¥1,060198808-198905

main51296-95701iCM36..05S¥1,060198905-199201

CANARY SPEC

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53735-95700iKM30¥2,060198903-199201

53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH

main53727-95707iKM30¥950198903-199201

53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH

main53728-95704iKM30¥620198903-199201

53075SHUTTER SUB-ASSY, HOT AIR, LOWER

main53737-95701iKM30¥950198903-199201

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95712iCM3#¥12,700198808-199201

sub53701-95711¥12,700

main53701-95713iKM3#¥12,700198808-199201

sub53701-95721¥12,700

main53701-95720iCM3#¥12,700198811-199201

ROUGH ROAD PACKAGE

main53701-95721iKM3#¥12,700198811-199201

ROUGH ROAD PACKAGE

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95713iKM3#¥12,700198808-199201

sub53702-95722¥12,700

main53702-95714iCM3#¥12,700198808-199201

sub53702-95723¥12,700

main53702-95722iKM3#;CM36..RHD¥12,700198811-199201

ROUGH ROAD PACKAGE

main53702-95723iCM3#..LHD¥12,700198811-199201

ROUGH ROAD PACKAGE

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95701iCM3#,KM3#¥6,500198808-199201

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95704iCM3#,KM3#¥6,500198808-199201

53733BSHUTTER, HOT AIR SIDE, A RH

main53733-95701iKM30¥390198903-199201

53734BSHUTTER, HOT AIR SIDE, A LH

main53733-95701iKM30¥390198903-199201

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95705iCM36,KM36..RHD¥7,800198808-199201

sub57045-95715¥7,800

main57045-95707iCM3#,KM3#..LHD¥7,800198808-199201

main57045-95715iCM36,KM36..RHD¥7,800198811-199201

ROUGH ROAD PACKAGE

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95705iCM3#,KM3#..LHD..V4D¥7,800198808-199201

main57046-95716iCM36,KM36..RHD¥8,800198808-199201

main57046-95717iCM36,KM36..V5D¥8,700198808-199201

main57046-95718iCM3#,KM3#..LHD..V4D¥7,800198811-199201

ROUGH ROAD PACKAGE

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-95727iCM36,KM36..LHD..02S¥88,000198808-199201

W(DISC 14" AD19"LT BRAKE)

main57101-95728iCM36,KM36..RHD¥88,000198808-199201

sub57101-27902¥88,000

main57101-95730iCM36,KM36..LHD..V4D..5F..02S¥88,000198808-199201

W(DISC 14" AD(T)9"LT BRAKE)

main57101-95730iCM3#,KM3#..VSG¥88,000198808-199201

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-95720iCM36..05S;KM36..4F..05S¥88,000198808-199201

W(DISC 14" AD19"LT BRAKE)

main57102-95721iCM36,KM36..RHD¥88,000198808-199201

sub57102-95720¥88,000

main57102-95723iCM36,KM36..LHD..V4D..5F..02S¥88,000198808-199201

W(DISC 14" AD(T)9"LT BRAKE)

main57102-95723iCM3#,KM3#..VSG¥88,000198808-199201

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-95704iCM3#,KM3#¥6,200198808-199201

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57148-95702iCM3#,KM3#¥6,200198808-199201

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-95703iCM3#,KM3#198808-199201

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-95703iCM3#,KM3#¥6,100198808-199201

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-95702iCM3#,KM3#¥5,900198808-199201

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-95702iCM3#,KM3#¥5,900198808-199201

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-95701iCM3#,KM3#¥3,580198808-199201

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57044-95703iCM3#,KM3#¥3,910198808-199201

57451MEMBER, FRONT FLOOR CROSS

main57408-95705iCM3#,KM3#¥11,100198808-199201

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95744iCM36,KM36..RHD¥35,100198808-199201

sub58101-27250¥34,800

main58101-95748iCM3#,KM3#..LHD..(4F,5F)¥35,100198808-199201

sub58101-27280¥34,800

main58101-95750iCM36,KM36..4H,5H¥35,100198808-199201

sub58101-27290¥34,800

main58101-95756iKM36..4H¥35,100198808-199201

FINLAND SPEC

sub58101-27330¥34,800

main58101-95757iCM36..5H¥35,100198808-199201

FINLAND SPEC

sub58101-27340¥34,800

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-95700iCM3#,KM3#¥3,470198808-199201

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-95704iCM3#,KM3#¥3,470198808-199201

58191FOOTREST, FRONT FLOOR

main58192-95700iCM30,KM30¥1,530198808-199201

58213APANEL, SEAT FLOOR, RH

main58201-95718iCM3#,KM3#¥7,000198808-199201

sub58201-27030¥7,000

58214APANEL, SEAT FLOOR, LH

main58214-95708iCM36,KM36..RHD¥8,900198808-199201

sub58202-27020¥4,950

main58214-95709iCM3#,KM3#..LHD¥8,900198808-199201

sub58202-27030¥4,950

9010506104

main90105-06104¥120

9010512017

main90105-12017¥250

9017912020

main90179-12020¥160

9033320001

main90333-20001¥70

9095001001

main90950-01001¥360

9095001006

main90950-01006¥260

9095001127

main90950-01127¥360

9095001133

main90950-01133¥590

9095001147

main90950-01147¥210

9095001398

main90950-01398¥100

9326056016

main93260-56016¥60

9338616014

main93386-16014¥90

43 parts on this diagram · 2 diagrams in section
