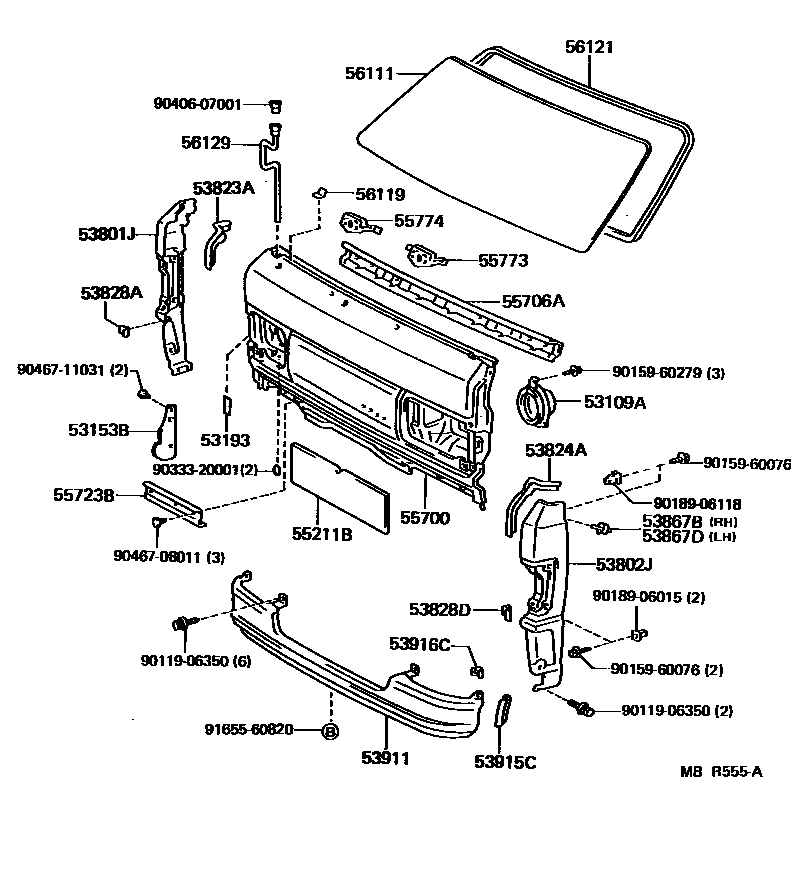

FRONT PANEL & WINDSHIELD GLASS

53109ACOVER SUB-ASSY, HEADLAMP SERVICE HOLE

main53109-95700iCM36,KM36..LHD198808-199201

53153BGUIDE, FRONT SIDE AIR

main53153-95701iCM3#,KM3#198808-199201

53193SEAL, HEADLAMP COVER

main53196-95700iCM36,KM36..RHD198808-199201

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-95706iCM3#,KM3#198808-199201

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-95709iCM3#,KM3#198808-199201

53823APROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95703iCM3#,KM3#198808-199201

53824APROTECTOR, FRONT SIDE

main53824-95703iCM3#,KM3#198808-199201

53828APROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95702iCM3#,KM3#198808-199201

53828DPROTECTOR, FRONT SIDE PANEL, NO.3 LH

main53828-95702iCM3#,KM3#198808-199201

53867BRETAINER, FRONT SIDE PANEL

main53867-95700iCM3#,KM3#198808-199201

53867DRETAINER, FRONT SIDE PANEL, LH

main53867-95700iCM3#,KM3#198808-199201

53911PANEL, FRONT VALANCE

main53901-95702iCM3#,KM3#198808-199201

53915CPROTECTOR, LOWER SHROUD

main53915-95704iCM3#,KM3#198808-199201

53916CPROTECTOR, LOWER SHROUD, NO.2

main53916-95702iCM3#,KM3#198808-199201

55211BSILENCER, FRONT PANEL

main55211-95701iCM3#,KM3#198808-199201

COLD SPEC

55700PANEL ASSY, FRONT

main55701-95746iCM30,KM30198808-199201

main55701-95747iCM36,KM36..LHD198808-199201

sub55701-95757

main55701-95748iCM36,KM36..RHD198808-199201

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95706iCM36,KM36..RHD198808-199201

main55706-95707iCM3#,KM3#..LHD198808-199201

55723BSHUTTER, FRONT AIR SIDE

main55723-95701iCM3#,KM3#..LHD198808-199201

main55724-95700iCM36,KM36..RHD198808-199201

55773RETAINER, WIPER SHAFT, CENTER

main55773-95704iCM3#,KM3#198808-199001

sub55773-95705

main55773-95705iCM3#,KM3#199001-199201

55774RETAINER, WIPER SHAFT SIDE

main55774-95704iCM36,KM36..RHD198808-199001

sub55774-95706

main55774-95705iCM3#,KM3#..LHD198808-199201

main55774-95706iCM36,KM36..RHD199001-199201

56111GLASS, WINDSHIELD

main56111-95711iCM3#,KM3#198808-199201

*ZT,T=5.0

sub56111-95714

main56111-95714iCM3#,KM3#198808-199201

*LAM,T=5.3

sub56111-95716

56119SEAL, WINDSHIELD GLASS

main56119-95700iCM3#,KM3#198808-199201

56121WEATHERSTRIP, WINDSHIELD

main56121-95708iCM36,KM3#..STD198808-199201

sub56121-27010

main56121-95709iCM30,KM30..DLX198808-199201

sub56121-27020

56129HOSE, WINDSHIELD DRAIN

main56129-95700iCM3#,KM3#198808-199201

9011906350

main90119-06350

9015960076

main90159-60076

9015960279

main90159-60279

9018906015

main90189-06015

9018906118

main90189-06118

9033320001

main90333-20001

9040607001

main90406-07001

9046708011

main90467-08011

9046711031

main90467-11031

9165560820

main91655-60820

34 parts on this diagram · 1 diagram in section
