FRONT VENTILATOR

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-95701-13iCM3#,KM3#198808-199201

GRAY,TRIM1#

sub55961-95701

main55961-95701-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub55961-95701

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-95701-13iCM3#,KM3#198808-199201

GRAY,TRIM1#

sub55962-95701

main55962-95701-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub55962-95701

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-95700iCM3#,KM3#198808-199201

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-95700iCM3#,KM3#198808-199201

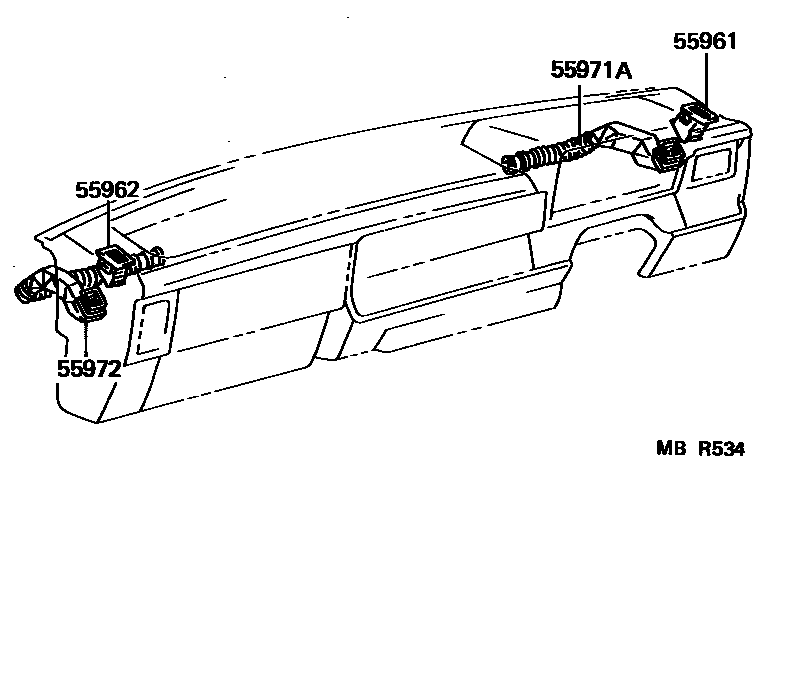

4 parts on this diagram · 1 diagram in section
