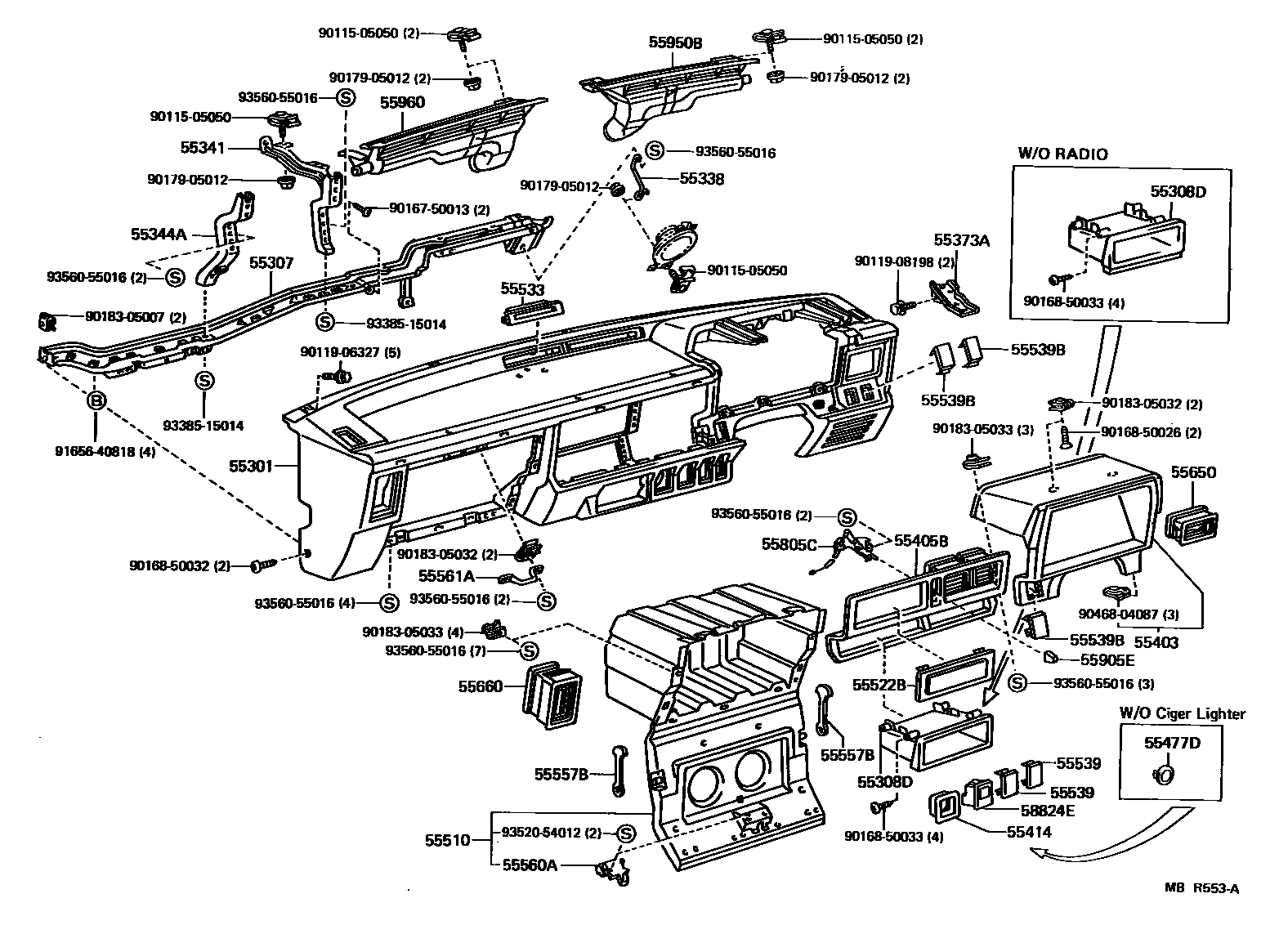

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
WEST GERMANY SPEC,GRAY,TRIM1#
GRAY,TRIM1#
SABLE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM1#
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55308DBOX SUB-ASSY, INSTRUMENT PANEL, CENTER
55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1
55341BRACE, INSTRUMENT PANEL, NO.1
55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3
TYPE A
TYPE B
55373ABRACKET, OIL RESERVOIR TANK
55403HOOD SUB-ASSY, METER
GRAY,TRIM1#
SABLE,TRIM4#
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
W(RADIO) OR EUROPE RADIO LESS,GRAY,TRIM1#
sub55405-95703
W(RADIO) OR EUROPE RADIO LESS,SABLE,TRIM4#
sub55405-95703
55414BEZEL, CIGAR LIGHTER HOLE
55477DCOVER, CIGARETTE LIGHTER HOLE
55510DOOR ASSY, GLOVE COMPARTMENT
55522BCOVER, RADIO TUNER OPENING
55533COVER, AUTO CLOCK HOLE
55539COVER, SPARE SWITCH HOLE
55539BCOVER, SPARE SWITCH HOLE, NO.2
55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
GRAY,TRIM1#
SABLE,TRIM4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55805CBRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER
55905EKNOB SUB-ASSY, CONTROL
55950BNOZZLE ASSY, DEFROSTER, RH
55960NOZZLE ASSY, DEFLOSTER, LH
58824EBOX, INSTRUMENT PANEL COIN
9011505050
main90115-05050
9011906327
main90119-06327
9011908198
main90119-08198
9016750013
main90167-50013
9016850026
main90168-50026
9016850032
main90168-50032
9016850033
main90168-50033
9017905012
main90179-05012
9018305007
main90183-05007
9018305032
main90183-05032
9018305033
main90183-05033
9046804087
main90468-04087
9165640818
main91656-40818
9338515014
main93385-15014
9352054012
main93520-54012
9356055016
main93560-55016
42 parts on this diagram · 2 diagrams in section
