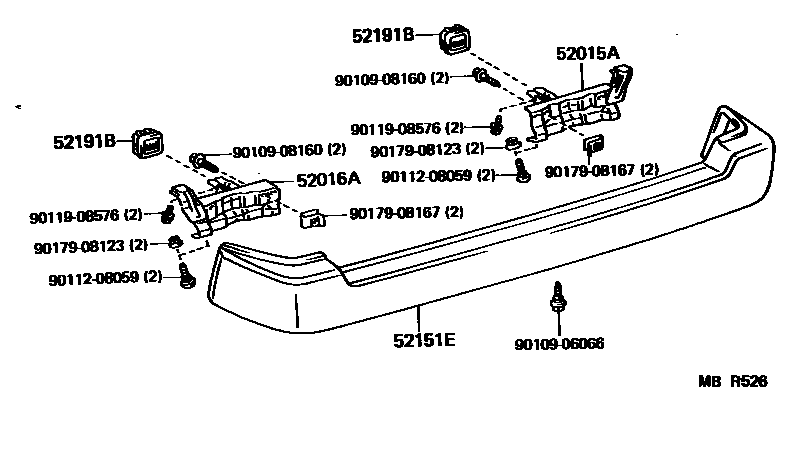

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-95700iCM3#,KM3#¥4,390198808-199201

main52015-95702iKM30..DLX;KM36..LHD..V4D..02S¥4,360198808-199201

*FRG

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-95700iCM3#,KM3#¥4,390198808-199201

main52016-95702iKM30..DLX;KM36..LHD..V4D..02S¥4,360198808-199201

*FRG

52151EBAR, REAR BUMPER

main52151-95708iCM3#,KM3#¥17,400198808-199201

main52151-95710iKM30..DLX;KM36..LHD..V4D..02S¥17,300198808-199201

*FRG

52191BGROMMET, REAR BUMPER STAY

main52191-95701iCM3#,KM3#¥740198808-199201

9010906066

main90109-06066¥250

9010908160

main90109-08160¥140

9011208059

main90112-08059¥140

9011908576

main90119-08576¥140

9017908123

main90179-08123¥160

9017908167

main90179-08167¥320

10 parts on this diagram · 1 diagram in section
