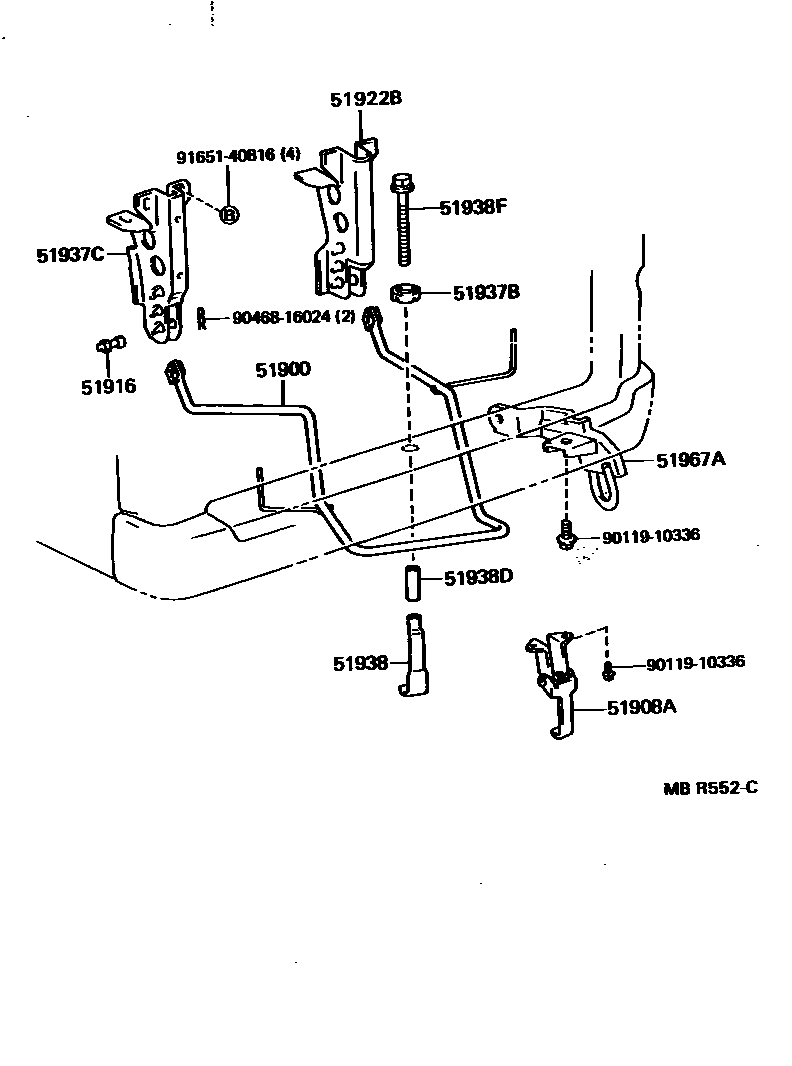

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-27160iCM3#,KM3#198808-199201

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-27030iKM30..DLX;KM36..LHD..V4D..02S198808-199201

*FRG

51916PIN, SPARE TIRE CARRIER

main51916-27020iCM3#,KM3#198808-199201

51922BHANGER, SPARE WHEEL CARRIER

main51922-95700iCM3#,KM3#198808-199201

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iCM3#,KM3#198808-199201

51937CBRACKET, SPARE WHEEL CARRIER HINGE

main51937-27051iCM3#,KM3#198808-199201

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iCM3#,KM3#198808-199201

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90387-12032iCM3#,KM3#198808-199201

main90387-12037iKM36..MRF..4F;CM36,KM30..LHD..V4D..5F198808-199201

HOLLAND SPEC

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12093iCM3#,KM3#198808-199201

main90119-12102iCM36,KM3#..LHD..V4D..(4F,5F)..(02S,08S)198808-199201

HOLLAND SPEC

51967AHOOK SUB-ASSY, REAR

main51095-95700iCM30,KM30198808-199201

*FRG

9011910336

main90119-10336

9046816024

main90468-16024

9165140816

main91651-40816

13 parts on this diagram · 1 diagram in section
