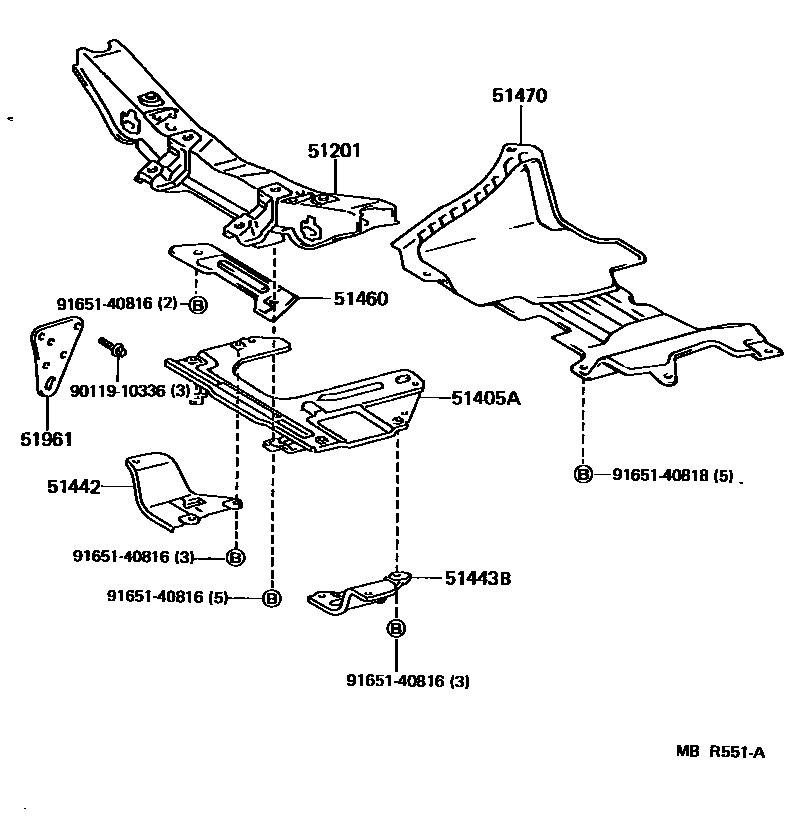

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95703iCM36,KM36..RHD198808-199201

main51203-95704iCM3#,KM3#..LHD198808-199201

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-95702iKM36..RHD198808-199201

main51405-95703iKM3#..LHD198808-199201

main51405-95707iCM36..RHD198808-199201

main51405-95708iCM36..LHD..02S198808-199201

main51405-95708iCM36..05S198906-199201

CANARY SPEC

main51430-95700iCM3#..VSG198905-199201

51442COVER, ENGINE UNDER, NO.2

main51440-27030iCM3#..VSG198905-199201

main51442-95700iCM36..05S198906-199201

CANARY SPEC

main51442-95700iCM3#,KM3#198808-199201

51443BCOVER, ENGINE UNDER, NO.3

main51443-95700iCM3#,KM3#198808-199201

main51443-95700iCM36..05S198906-199201

CANARY SPEC

main51450-27020iCM3#..VSG198905-199201

51460PROTECTOR ASSY, OIL PAN UNDER

main51460-95700iCM36..05S;CM36..V5D198905-199201

51470COVER ASSY, TRANSMISSION UNDER

main51470-95700iCM36..05S;CM36..V5D198905-199201

51961HOOK, NO.1

main51961-95700iCM3#,KM3#..LHD198808-199201

9011910336

main90119-10336

9165140816

main91651-40816

9165140818

main91651-40818

10 parts on this diagram · 1 diagram in section
