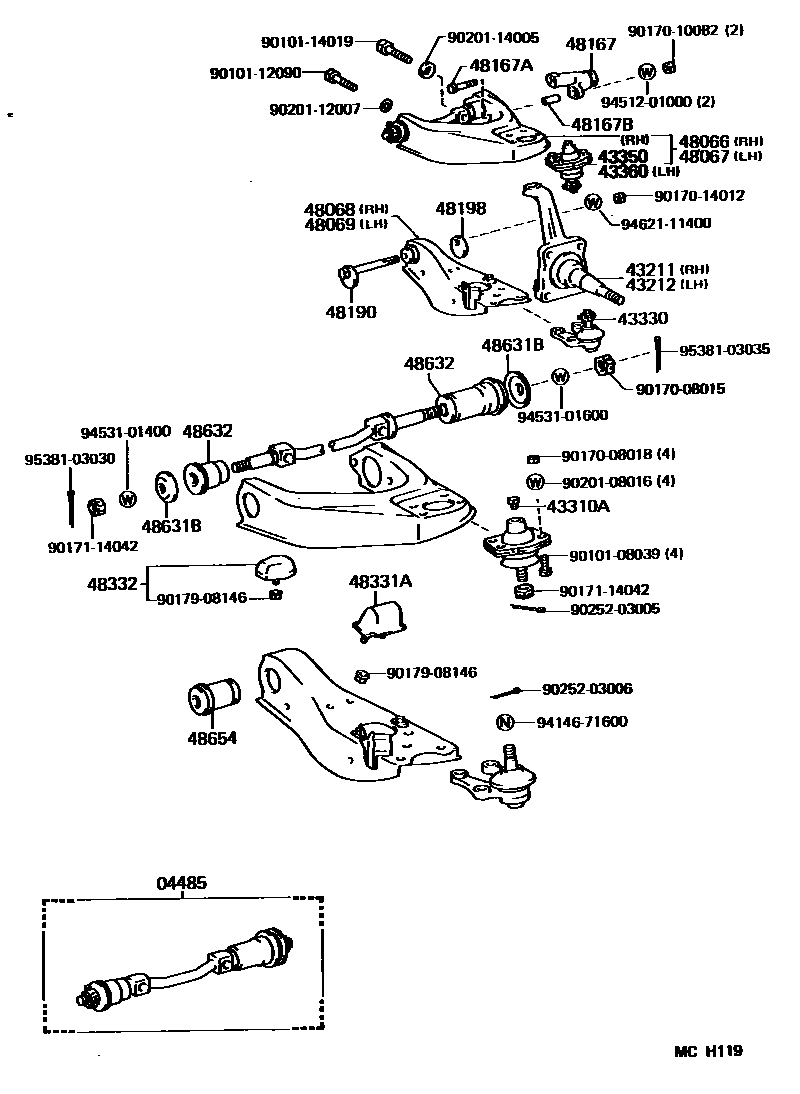

FRONT AXLE ARM & STEERING KNUCKLE

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCM3#,KM3#198808-199201

43211KNUCKLE, STEERING, RH

main43211-28021iCM3#,KM3#198808-199201

43212KNUCKLE, STEERING, LH

main43211-28021iCM3#,KM3#198808-199201

43310APLUG (FOR BALL JOINT)

main90345-06014iCM3#,KM3#198808-199008

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29175iCM3#,KM3#198808-199201

sub43330-29545

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29036iCM3#,KM3#198808-199008

sub43350-29076

main43350-29076iCM3#,KM3#199008-199201

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29076iCM3#,KM3#199008-199201

main43360-29056iCM3#,KM3#198808-199008

sub43350-29076

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48610-28012iCM3#,KM3#198808-199008

sub48610-28013

main48610-28013iCM3#,KM3#199008-199201

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48630-28012iCM3#,KM3#198808-199008

sub48630-28013

main48630-28013iCM3#,KM3#199008-199201

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28040iCM3#,KM3#198808-199201

sub48068-28080

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28040iCM3#,KM3#198808-199201

sub48069-28080

48167ARM, TORQUE

main48106-28010iCM3#,KM3#198808-199201

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-10177iCM3#,KM3#199008-199201

main91121-71085iCM3#,KM3#198808-199008

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM3#,KM3#198808-199201

48190CAM ASSY, CAMBER ADJUST

main48190-27010iCM3#,KM3#198808-199002

sub48190-27020

sub90179-14046

main48190-27020iCM3#,KM3#199002-199201

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCM3#,KM3#198808-199201

48331ABUMPER, FRONT SPRING, NO.1

main48331-27060iCM3#,KM3#198808-199201

sub48331-29055

48332BUMPER, FRONT SPRING, NO.2

main48305-30030iCM3#,KM3#198808-199201

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCM3#,KM3#198808-199201

RR SIDE

main90948-02049iCM3#,KM3#198808-199201

FR SIDE

48632BUSH, UPPER ARM

main48632-27010iCM3#,KM3#198808-199201

FR SIDE

main48635-28010iCM3#,KM3#198808-199201

RR SIDE

48654BUSH, LOWER ARM

main48061-27011iCM3#,KM3#198808-199201

9010108039

main90101-08039

9010112090

main90101-12090

9010114019

main90101-14019

9017008015

main90170-08015

9017008018

main90170-08018

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017908146

main90179-08146

9020108016

main90201-08016

9020112007

main90201-12007

9020114005

main90201-14005

9025203005

main90252-03005

9025203006

main90252-03006

9414671600

main94146-71600

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103030

main95381-03030

9538103035

main95381-03035

42 parts on this diagram · 1 diagram in section
