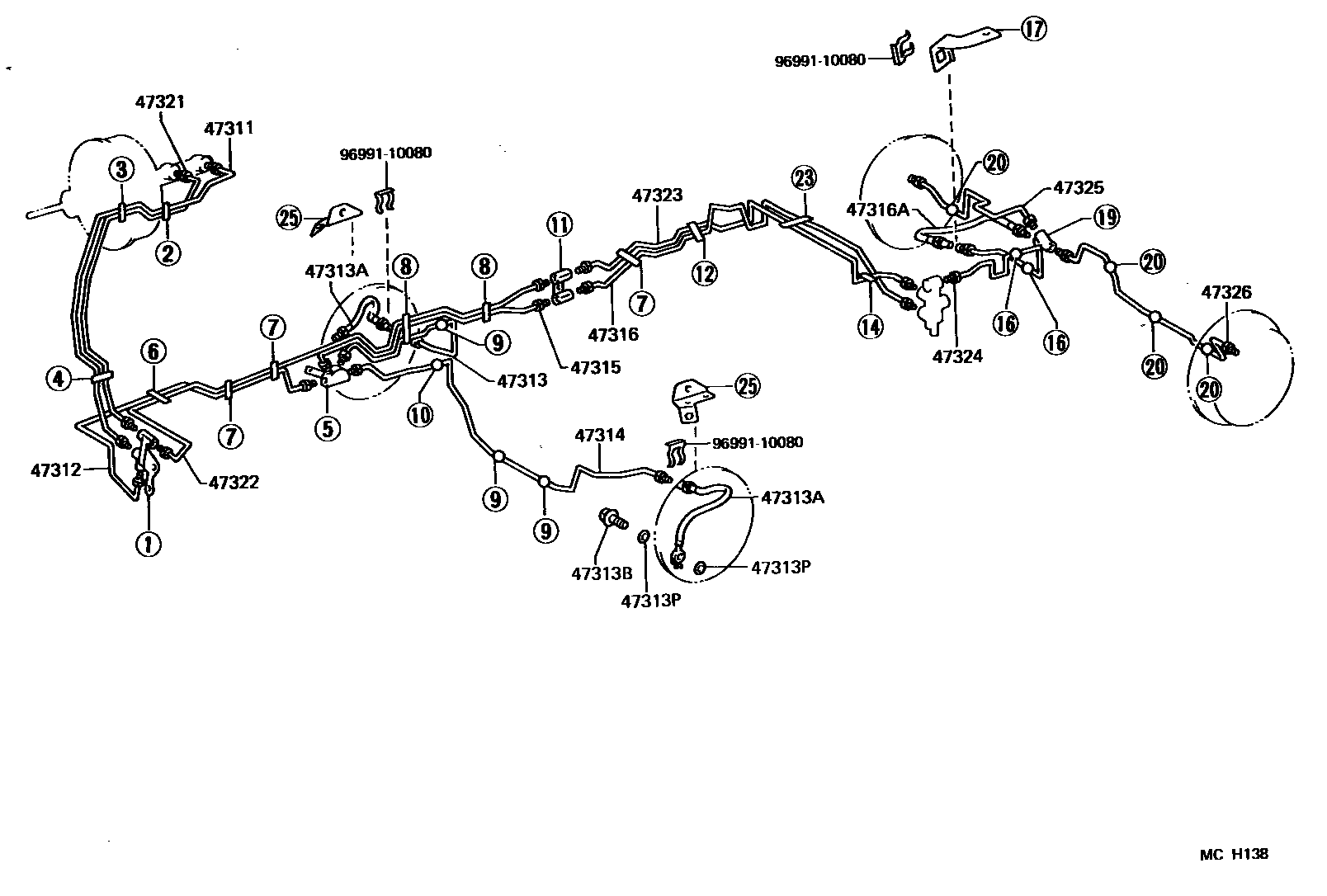

BRAKE TUBE & CLAMP

0001 1 0002 1SINGLE BOOSTER 0003 1TANDEM BOOSTER 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27180iCM36,KM36..RHD198808-199201

main47311-27211iCM36..05S;KM36..4F..05S198808-199201

W(DISC 14" AD,9"LT)

main47311-27221iCM36,KM36..LHD..V4D..5F..02S198808-199201

W(DISC 14" AD(T),9"LT)

main47311-27221iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

47312TUBE, FRONT BRAKE, NO.2

main47312-27170iCM3#,KM3#..VSG198808-199201

W(DISC 14" AD(T),9"LT)

main47312-27170iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main47312-27180iCM36,KM36..02S198808-199201

W(DISC 14" AD,9"LT)

47313TUBE, FRONT BRAKE, NO.3

main47313-27060iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main47313-27060iCM36,KM36..LHD..V4D..5F..02S198808-199201

W(DISC 14" AD(T),9"LT)

main47313-27061iCM36..05S;KM36..4F..05S198808-199201

W(DISC 14" AD,9"LT)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02485iKM36..V5D..5F199008-199201

SWITZERLAND SPEC,RH

main90947-02485iKM36..V5D..5F198808-199201

RH

main90947-02485iCM30,KM3#..VSG;CM36..LHD..V4D..5F198808-199008

W(DISC 14" AD(T),9"LT),RH

main90947-02487iKM36..LHD..V4D..5F..02S198808-199201

LH

main90947-02487iCM30,KM3#..VSG;CM36..LHD..V4D..5F198808-199008

W(DISC 14" AD(T),9"LT),LH

main90947-02487iKM36..4F..05S;CM3#,KM3#..LHD..V4D..(4H,5F)199008-199201

SWITZERLAND SPEC,LH

main90947-02505iCM36,KM36..02S198808-199008

W(DISC 14" AD,9"LT)

main90947-02505iCM36;KM36..02S;KM36..4F..05S199008-199201

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCM3#,KM3#198808-199201

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCM3#,KM3#198808-199201

47314TUBE, FRONT BRAKE, NO.4

main47314-27051iCM36..05S;KM36..4F..05S198808-199201

W(DISC 14" AD,9"LT)

main47314-27080iCM3#,KM3#..VSG198808-199201

W(DISC 14" AD(T),9"LT)

main47314-27080iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

47315TUBE, FRONT BRAKE, NO.5

main47315-27020iCM36,KM36..02S198808-199008

W(DISC 14" AD,9"LT)

main47315-27020iCM36;KM36..02S;KM36..4F..05S199008-199201

47316TUBE, FRONT BRAKE, NO.6

main47316-27120iCM36,KM36..02S198808-199008

W(DISC 14" AD,9"LT)

main47316-27120iCM36;KM36..02S;KM36..4F..05S199008-199201

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33555iCM3#,KM3#198808-199201

47321TUBE, REAR BRAKE, NO.1

main47321-27130iCM36,KM36..RHD198808-199201

main47321-27141iCM36,KM36..LHD..02S198808-199201

W(DISC 14" AD,9"LT)

main47321-27151iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main47321-27151iCM3#,KM3#..VSG198808-199201

W(DISC 14" AD(T),9"LT)

47322TUBE, REAR BRAKE, NO.2

main47322-27220iCM36,KM36..LHD..V4D..5F..02S198808-199201

W(DISC 14" AD(T),9"LT)

main47322-27220iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main47322-27230iCM36..05S;KM36..4F..05S198808-199201

W(DISC 14" AD,9"LT)

47323TUBE, REAR BRAKE, NO.3

main47323-27240iCM36,KM36..05S198808-199201

W(DISC 14" AD(T),9"LT)

main47323-27240iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main47323-27350iCM36,KM36..02S198808-199201

W(DISC 14" AD,9"LT)

main47323-27380iCM30,KM30198808-199201

47324TUBE, REAR BRAKE, NO.4

main47324-27090iCM3#,KM3#198808-199201

47325TUBE, REAR BRAKE, NO.5

main47325-27070iCM36,KM36198808-199201

main47325-27080iCM30,KM30198808-199201

47326TUBE, REAR BRAKE, NO.6

main47326-27060iCM36,KM36198808-199201

main47326-27070iCM30,KM30198808-199201

9699110080

main96991-10080

17 parts on this diagram · 5 diagrams in section
