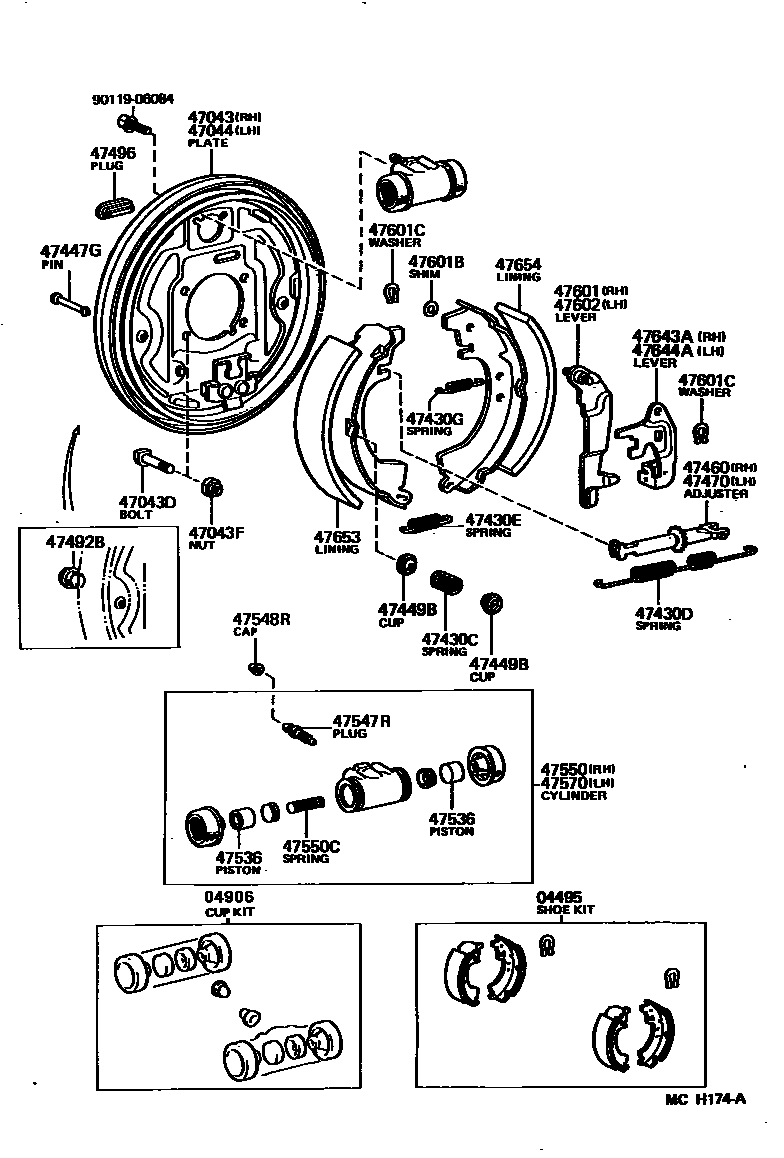

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
SWITZERLAND SPEC
NORWAY SPEC
CANARY SPEC
AUSTRIA SPEC
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601BSHIM, REAR PARKING BRAKE SHOE LEVER
T=0.3
T=0.6
T=0.9
T=0.2
T=0.4
T=0.5
47601CWASHER, C(FOR REAR BRAKE)
T=1.2
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
NORWAY SPEC
SWITZERLAND SPEC
AUSTRIA SPEC
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
NORWAY SPEC
SWITZERLAND SPEC
AUSTRIA SPEC
9011906084
31 parts on this diagram · 1 diagram in section
