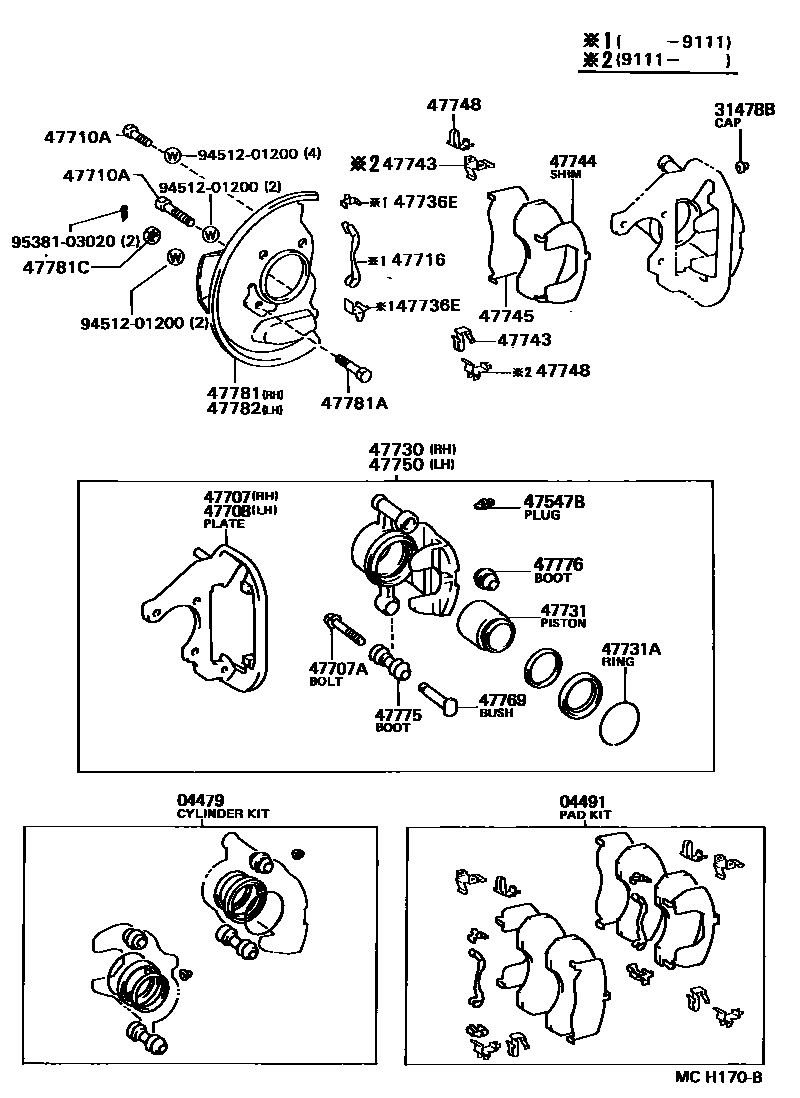

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1SINGLE PISTON TYPE 0002 1DUAL PISTON TYPE 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-27010iCM36,KM36..02S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main04479-28021iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

04491PAD KIT, DISC BRAKE, FRONT

main04491-27100iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main04491-28150iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCM3#,KM3#..VSG198808-199201

CANARY SPEC & SINGLE PISTON TYPE

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iCM3#,KM3#198808-199201

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28050iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

main47707-28060iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384×2iCM36,KM36..02S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main90119-10385×2iCM30,KM3#..VSG;CM36..LHD..V4D..5F198808-199201

DUAL PISTON TYPE

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28050iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

main47708-28060iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010×2iCM3#,KM3#198808-199201

*12-1.25PX50-26

main90101-12030×4iCM3#,KM3#198808-199201

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020×2iCM3#,KM3#198808-199111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27070iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47730-28080iKM36..V5D..5F199008-199201

SWITZERLAND SPEC & DUAL PISTON TYPE

47731PISTON, FRONT DISC BRAKE

main47731-14080×4iKM36..V5D..5F199008-199201

SWITZERLAND SPEC & DUAL PISTON TYPE

main47731-14090×2iCM36,KM36..02S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001×4iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

main90522-69002×2iCM36,KM36..02S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-14030×4iCM3#,KM3#198808-199111

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040×2iCM3#,KM3#198808-199111

main47743-28010×2iCM3#,KM3#199111-199201

UPR

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28020×2iCM36,KM36..02S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47744-28030×2iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28040×2iCM30,KM3#..VSG;CM36..LHD..V4D..5F198808-199201

DUAL PISTON TYPE

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050×2iCM3#,KM3#198808-199111

main47748-28010×2iCM3#,KM3#199111-199201

LWR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27070iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47750-28080iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010×2iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47769-28020×2iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-17010×2iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47775-28020×2iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010×2iCM3#,KM3#198808-199201

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28060iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47781-28070iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iCM3#,KM3#198808-199201

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×2iCM3#,KM3#198808-199201

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28060iCM36..05S198808-199201

CANARY SPEC & SINGLE PISTON TYPE

main47782-28070iCM3#,KM3#..VSG198808-199201

DUAL PISTON TYPE

9451201200

main94512-01200

9538103020

main95381-03020

27 parts on this diagram · 3 diagrams in section
