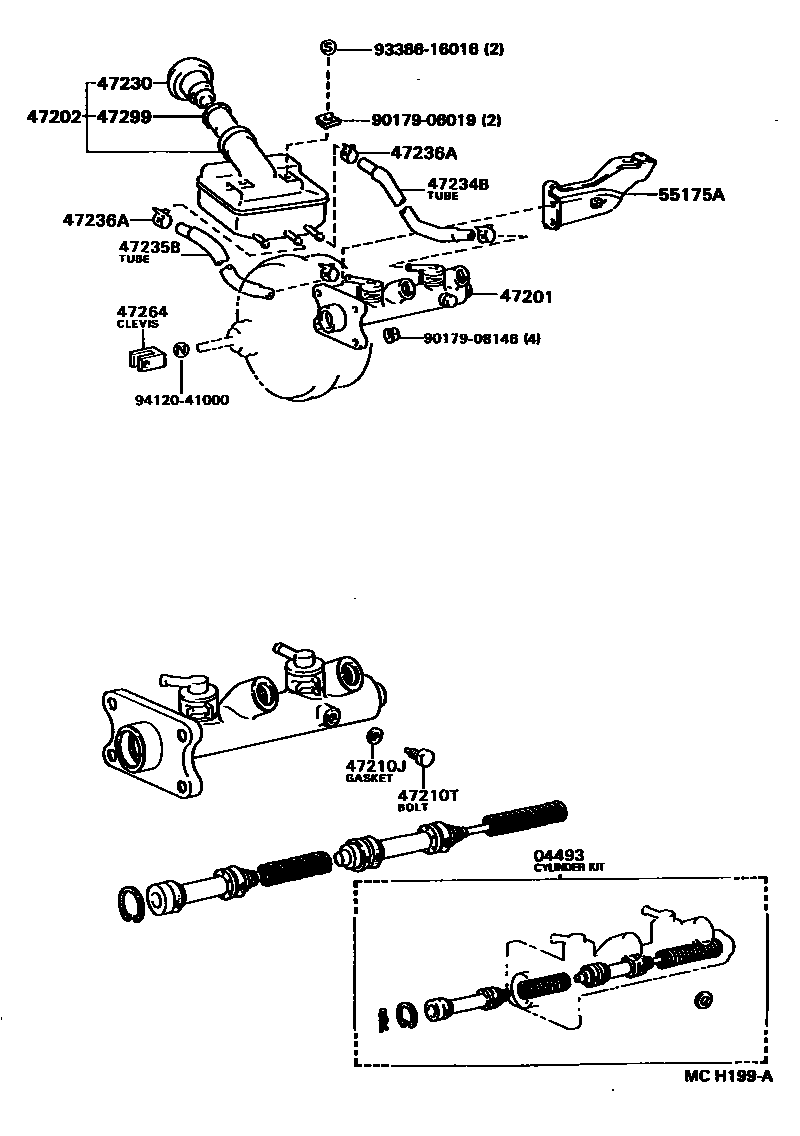

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-27080iCM36..05S;KM36..4F..05S198808-199201

W(FRONT BRAKE:SINGLE PISTON TYPE CALIPER)

main04493-27120iKM36..V5D..5F199008-199201

SWITZERLAND SPEC OR W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main04493-27120iCM36..LHD..V4D..5F..02S199008-199201

SWITZERLAND SPEC

main04493-27120iCM36..LHD..V4D..5F..02S198808-199201

W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main04493-27120iCM3#,KM3#..VSG198808-199201

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27220iCM36,KM36..RHD198808-199201

main47201-27230iCM36,KM36..LHD..02S198808-199201

W(FRONT BRAKE:SINGLE PISTON TYPE CALIPER)

main47201-27240iKM36..LHD..V4D..5F..02S199008-199201

SWITZERLAND SPEC OR W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main47201-27240iCM36,KM36..LHD..V4D..5F..02S198808-199201

W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main47201-27240iCM3#,KM3#..VSG198808-199201

main47201-27240iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iCM36,KM36..RHD198808-199201

main47220-28120iCM3#,KM3#..LHD..(5F,5H)198808-199201

main47220-28130iKM36..4F,4H198808-199201

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM3#,KM3#198808-199201

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM3#,KM3#198808-199201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCM3#,KM3#198808-199201

47234BTUBE, RESERVOIR, NO.1

main47234-27120iCM36,KM36..RHD198808-199201

main47234-27130iCM36..05S;KM36..4F..05S198808-199201

W(FRONT BRAKE:SINGLE PISTON TYPE CALIPER)

main47234-27140iKM36..V5D..5F199008-199201

SWITZERLAND SPEC OR W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main47234-27140iCM36,KM36..LHD..V4D..5F..02S198808-199201

W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

main47234-27140iCM3#,KM3#..VSG198808-199201

main47234-27140iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-27080iCM36,KM36..RHD198808-199201

main47235-27090iCM36,KM36..LHD..02S198808-199201

W(FRONT BRAKE:SINGLE PISTON TYPE CALIPER)

main47235-27100iCM36..LHD..V4D..5F..02S199008-199201

SWITZERLAND SPEC

sub47235-27090

main47235-27100iCM36..LHD..V4D..5F..02S198808-199201

W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

sub47235-27090

main47235-27100iKM36..LHD..V4D..5F..02S199008-199201

SWITZERLAND SPEC OR W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

sub47235-27090

main47235-27100iCM3#,KM3#..VSG198808-199201

sub47235-27090

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iCM3#,KM3#198808-199201

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM3#,KM3#198808-199201

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCM3#,KM3#198808-199201

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95710iCM36,KM36..RHD198808-199201

sub55175-27010

main55175-95711iCM36,KM36..LHD..02S198808-199201

main55175-95711iCM36..05S;KM36..4F..05S198808-198910

W(FRONT BRAKE:SINGLE PISTON TYPE CALIPER)

main55175-95711iKM36..4F..05S198910-199201

NORWAY SPEC

main55175-95711iKM36..4F..05S198910-199201

CANARY SPEC

main55175-95713iKM36..V5D..5F199008-199201

SWITZERLAND SPEC

main55175-95713iCM3#,KM3#..VSG198808-199201

W(FRONT BRAKE:DUAL PISTON TYPE CALIPER)

9017906019

main90179-06019

9017908146

main90179-08146

9338616016

main93386-16016

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
