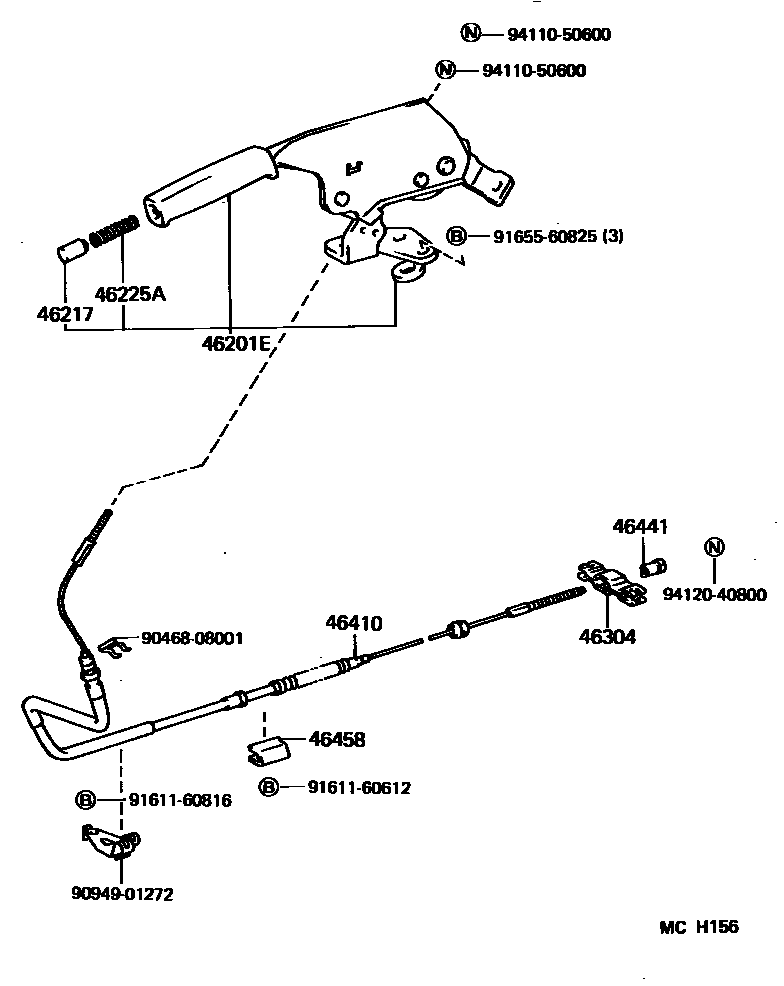

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27021-13iCM36,KM36..RHD198808-199201

GRAY,TRIM1#

sub46201-27021

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iCM36,KM36..RHD199009-199201

sub46217-16030

main46217-12020-03iCM36,KM36..RHD198808-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iCM36,KM36..RHD198810-199201

main90501-10745iCM36,KM36..RHD198808-198810

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM3#,KM3#198808-199201

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27120iKM36..RHD198808-199201

main46410-27140iCM36..RHD198808-199201

main46410-27150iCM3#,KM3#..LHD198808-199201

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCM3#,KM3#198808-199201

46458RETAINER, CABLE

main46458-28010iCM3#,KM3#198808-199201

9046808001

main90468-08001

9094901272

main90949-01272

9161160612

main91611-60612

9161160816

main91611-60816

9165560825

main91655-60825

9411050600

main94110-50600

9412040800

main94120-40800

14 parts on this diagram · 3 diagrams in section
