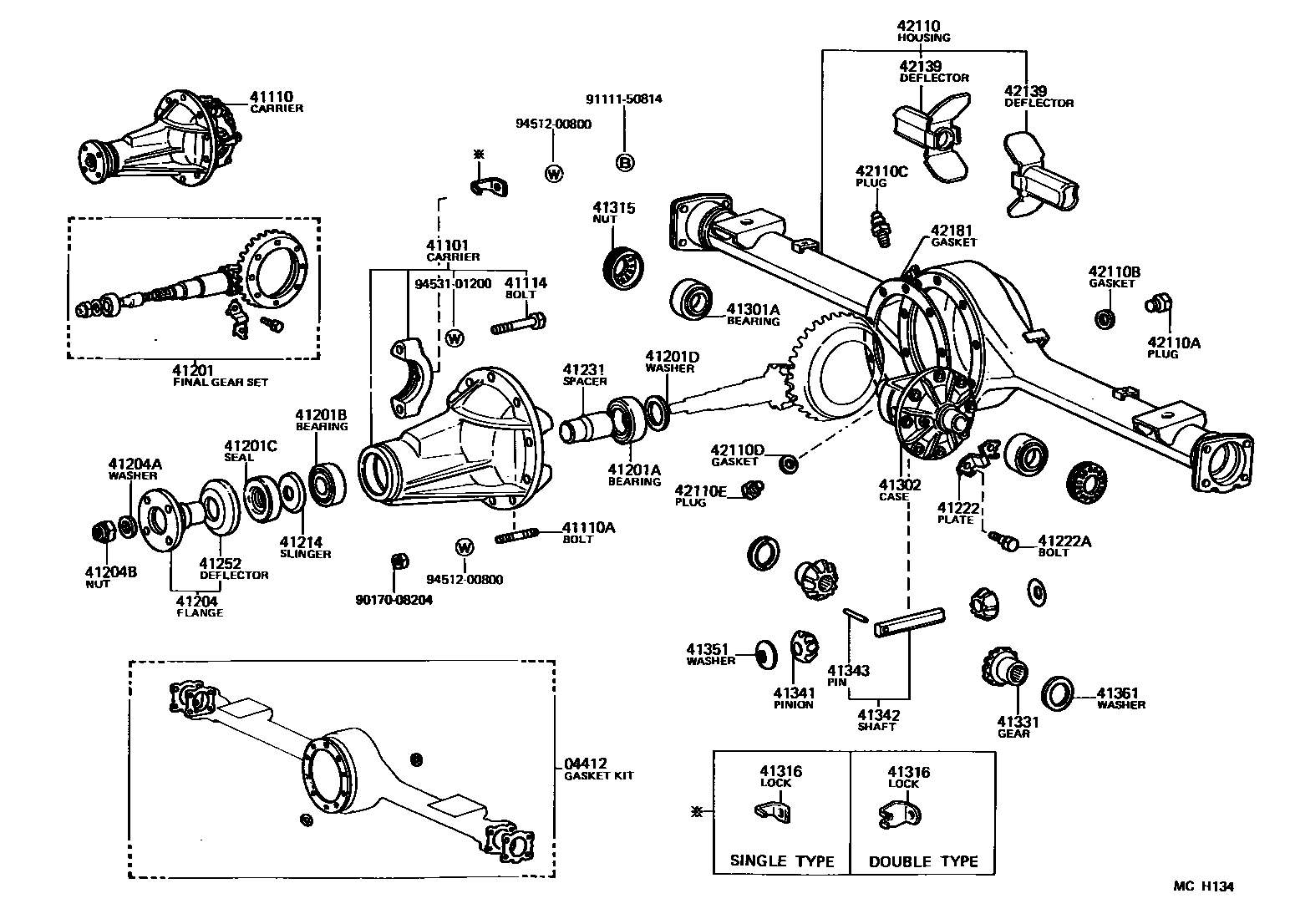

REAR AXLE HOUSING & DIFFERENTIAL

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-20030iCM3#,KM3#..02S,08S198808-199201

NORWAY SPEC

main04412-20030iCM3#,KM3#..02S,08S198808-199201

SWITZERLAND SPEC

main04412-20030iCM3#,KM3#..02S,08S198808-199201

CANARY SPEC

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCM3#,KM3#198808-199201

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-27030iCM3#,KM3#198808-199201

*FGR=43:9=4.778

sub41110-27100

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCM3#,KM3#198808-199201

S=12 & 15,L=34

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCM3#,KM3#198808-199201

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29307iCM3#,KM3#198808-199201

*FGR=43:9=4.778

sub41201-29865

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35031iCM3#,KM3#198808-199201

sub90366-35064

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCM3#,KM3#198808-199201

sub90366-30078

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iCM3#,KM3#198808-199201

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCM3#,KM3#198808-199201

T=2.36,MARK 05

main90201-35397iCM3#,KM3#198808-199201

T=2.39,MARK 06

main90201-35398iCM3#,KM3#198808-199201

T=2.42,MARK 07

main90201-35399iCM3#,KM3#198808-199201

T=2.43,MARK 08

main90201-35400iCM3#,KM3#198808-199201

T=2.48,MARK 09

main90201-35401iCM3#,KM3#198808-199201

T=2.51,MARK 10

main90201-35402iCM3#,KM3#198808-199201

T=2.54,MARK 11

main90201-35403iCM3#,KM3#198808-199201

T=2.57,MARK 12

main90201-35404iCM3#,KM3#198808-199201

T=2.60,MARK 13

main90201-35434iCM3#,KM3#198808-199201

T=2.24,MARK 01

sub90201-35515

main90201-35435iCM3#,KM3#198808-199201

T=2.27,MARK 02

sub90201-35516

main90201-35436iCM3#,KM3#198808-199201

T=2.30,MARK 03

sub90201-35517

main90201-35437iCM3#,KM3#198808-199201

T=2.33,MARK 04

sub90201-35518

main90201-35438iCM3#,KM3#198808-199201

T=2.63,MARK 14

main90201-35439iCM3#,KM3#198808-199201

T=2.66,MARK 15

main90201-35440iCM3#,KM3#198808-199201

T=2.69,MARK 16

main90201-35441iCM3#,KM3#198808-199201

T=2.72,MARK 17

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCM3#,KM3#198808-199201

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCM3#,KM3#198808-199201

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCM3#,KM3#198808-199201

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCM3#,KM3#198808-199201

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCM3#,KM3#198808-199201

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCM3#,KM3#198808-199201

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22020iCM3#,KM3#198808-199201

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCM3#,KM3#198808-199201

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iCM3#,KM3#198808-199104

sub90368-45014

main90368-45014iCM3#,KM3#199104-199201

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-30022iCM3#,KM3#198808-199201

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCM3#,KM3#198808-199201

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCM3#,KM3#198808-199201

SINGLE TYPE

main41317-30010iCM3#,KM3#198808-199201

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-22070iCM3#,KM3#199008-199201

sub41039-28010

main41331-30021iCM3#,KM3#198808-199008

sub41331-22070

41341PINION, REAR DIFFERENTIAL

main41341-22030iCM3#,KM3#199008-199201

sub41039-28010

main41341-30011iCM3#,KM3#198808-199008

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-30011iCM3#,KM3#198808-199201

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCM3#,KM3#198808-199201

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCM3#,KM3#198808-199201

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCM3#,KM3#198808-199201

T=1.00,MARK 02

main41361-22030iCM3#,KM3#198808-199201

T=1.10,MARK 03

main41361-22040iCM3#,KM3#198808-199201

T=1.20,MARK 04

main41361-22140iCM3#,KM3#198808-199201

T=0.95,MARK 14

main41361-22150iCM3#,KM3#198808-199201

T=1.05,MARK 15

main41361-22160iCM3#,KM3#198808-199201

T=1.15,MARK 16

42110HOUSING ASSY, REAR AXLE

main42110-27140iCM36,KM36198808-199201

main42110-27210iCM30,KM30198808-199201

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iCM3#,KM3#198808-199201

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCM3#,KM3#198808-199201

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCM3#,KM3#198808-199201

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCM3#,KM3#198808-199201

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCM3#,KM3#198808-199201

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iCM3#,KM3#198808-199201

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCM3#,KM3#198808-199201

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 1 diagram in section
