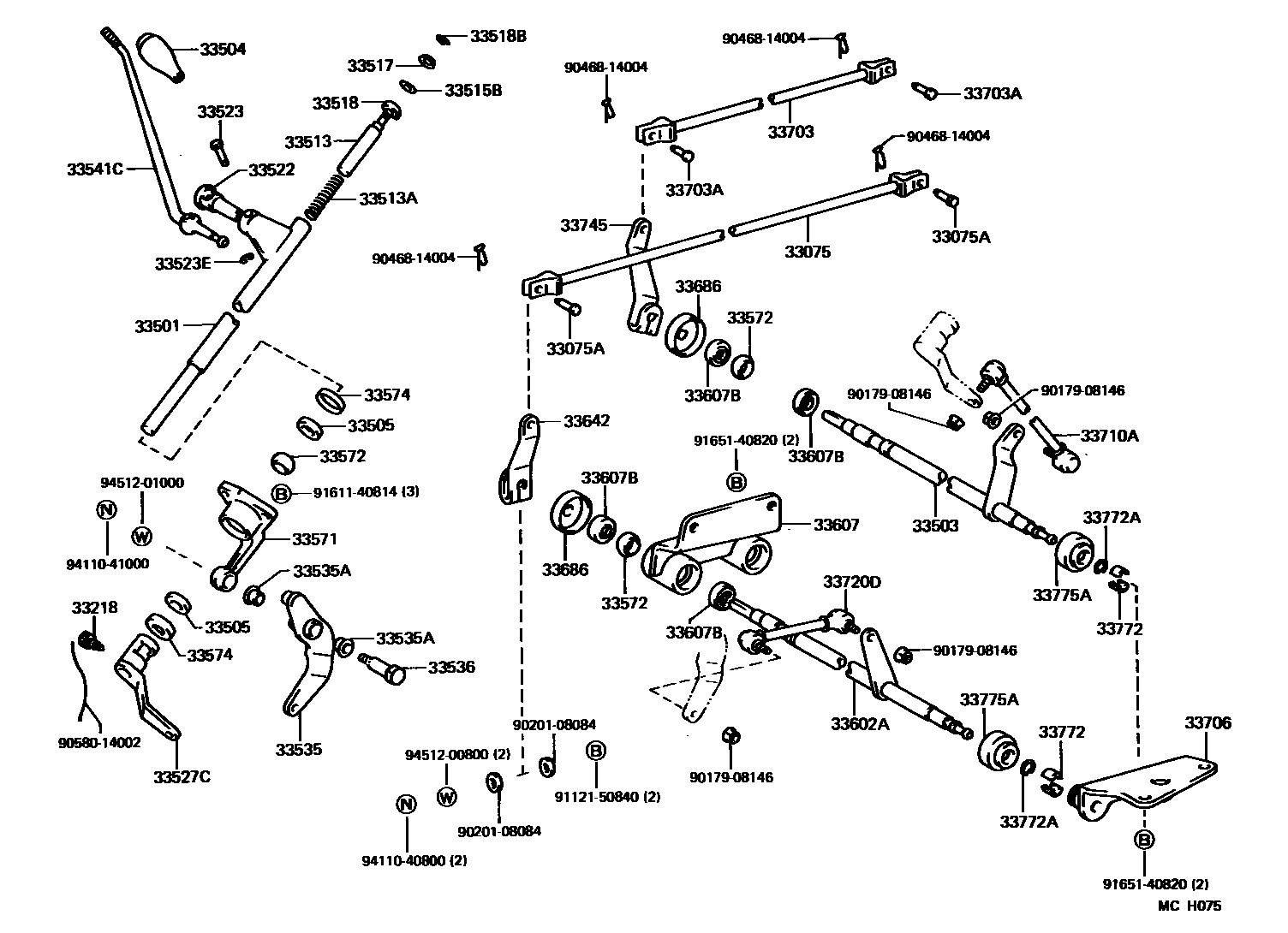

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33075ROD SUB-ASSY, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)

main33075-27120iKM36..4H¥1,590198808-199201

main33075-27130iCM36..5H¥1,590198808-199201

33075APIN, W/HOLE(FOR GEAR SELECTING ROD NO.2)

main90240-08042iCM36,KM36..4H,5H¥240198808-199201

33218BOLT, SHIFT LEVER LOCK

main33218-35010iCM36,KM36..4H,5H¥360198808-199201

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-27110iKM36..4H¥8,200198808-199201

main33501-27120iCM36..5H¥8,200198808-199201

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-27151iCM36,KM36..4H,5H¥2,790198808-199201

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iCM36,KM36..4H,5H¥680198808-199201

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iCM36,KM36..4H,5H¥140198808-199201

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-36020iCM36,KM36..4H,5H¥840198808-199201

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iCM36,KM36..4H,5H¥230198808-199201

33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

main33515-30010iCM36,KM36..4H,5H¥320198808-199201

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iCM36,KM36..4H,5H¥260198808-199201

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iCM36,KM36..4H,5H¥730198808-199201

sub33518-35010¥700

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iCM36,KM36..4H,5H¥220198808-199201

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iCM36,KM36..4H,5H¥390198808-199201

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iCM36,KM36..4H,5H¥240198808-199201

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iCM36,KM36..4H,5H¥100198808-199201

33527CLEVER, CONTROL SHIFT (FOR COLUMN SHIFT)

main33527-27080iCM36,KM36..4H,5H¥2,640198808-199201

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-27080iCM36,KM36..4H,5H¥2,510198808-199201

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iCM36,KM36..4H,5H¥160198808-199201

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iCM36,KM36..4H,5H¥720198808-199201

33541CLEVER, SHIFT (FOR COLUMN SHIFT)

main33541-27200iCM36,KM36..4H,5H¥4,960198808-199201

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-27040iCM36,KM36..4H,5H¥2,260198808-199201

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iCM36,KM36..4H,5H¥480198808-199201

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iCM36,KM36..4H,5H¥260198808-199201

33602ALEVER SUB-ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33602-27070iKM36..4H¥3,130198808-199201

main33602-27080iCM36..5H¥3,130198808-199201

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-27091iCM36,KM36..4H,5H¥3,130198808-199201

33607BSEAL, OIL (FOR CONTROL ROD SUPPORT)

main90312-16004iCM36,KM36..4H,5H¥110198808-199201

33642LEVER, GEAR SELECTING, NO.2

main33642-27040iKM36..4H¥1,080198808-199201

main33642-27050iCM36..5H¥1,000198808-199201

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-26010iCM36,KM36..4H,5H¥520198808-199201

33703ROD SUB-ASSY, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33703-27091iCM36,KM36..4H,5H¥1,160198808-199201

33703APIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2)

main90240-08042iCM36,KM36..4H,5H¥240198808-199201

33706SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

main33706-27060iCM36,KM36..4H,5H¥2,640198808-199201

33710AROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-27090iCM36,KM36..4H,5H¥2,170198808-199201

33720DROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-27100iCM36,KM36..4H,5H¥2,080198808-199201

33745LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)

main33745-27040iCM36,KM36..4H,5H¥1,150198808-199201

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iCM36,KM36..4H,5H¥370198808-199201

33772ARING, SNAP (FOR CROSS SHAFT SUPPORT BUSH)

main96151-01600iCM36,KM36..4H,5H198808-199201

33775ACOVER, CROSS SHAFT DUST

main33775-20020iCM36,KM36..4H,5H¥210198808-199201

9017908146

main90179-08146¥180

9020108084

main90201-08084¥180

9046814004

main90468-14004¥80

9058014002

main90580-14002¥210

9112150840

main91121-50840¥210

9161140814

main91611-40814¥130

9165140820

main91651-40820¥90

9411040800

main94110-40800¥120

9411041000

main94110-41000¥160

9451200800

main94512-00800¥80

9451201000

main94512-01000¥90

49 parts on this diagram · 4 diagrams in section
