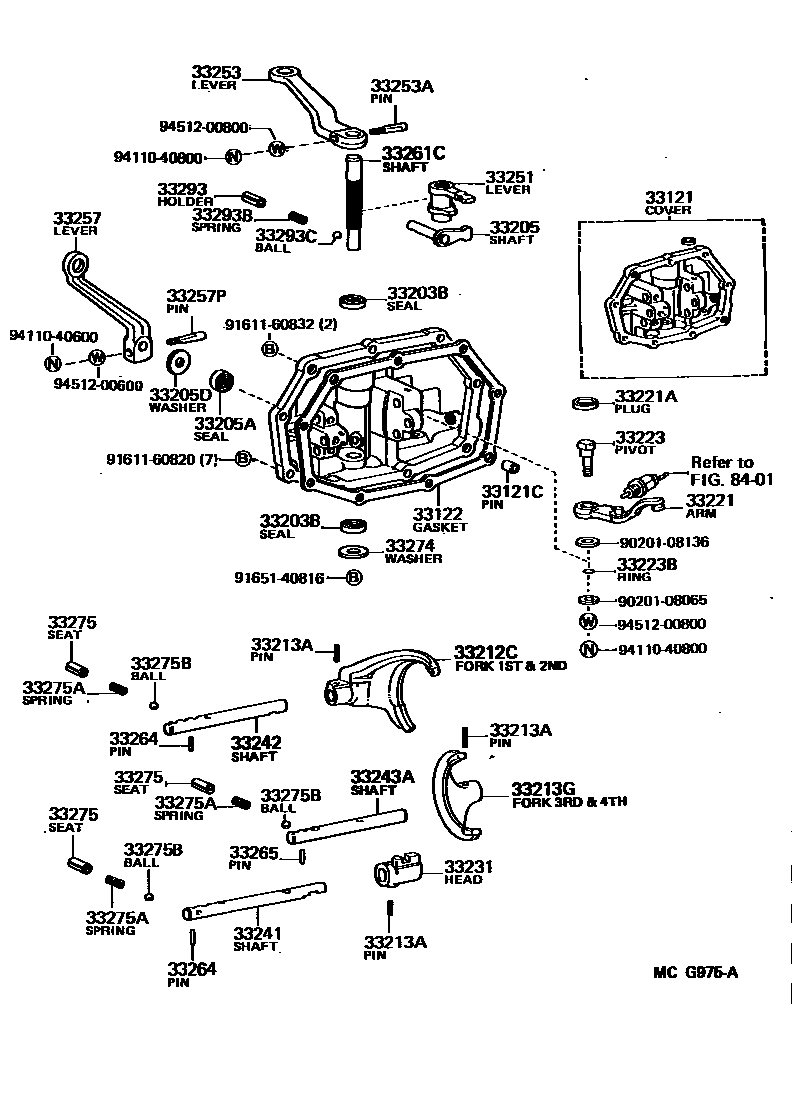

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-35040iKM36..4F,4H¥16,700198808-199201

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iKM36..4F,4H¥120198808-199201

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iKM36..4F,4H¥310198808-199201

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iKM36..4F,4H¥190198808-199201

LWR

main90311-18002iCM3#,KM3#..5F,5H¥160198808-199201

main90312-15003iKM36..4F,4H¥110198808-199201

UPR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-28010iKM36..4F,4H¥1,050198808-199201

main33262-28020iCM3#,KM3#..5F,5H¥1,950198808-199201

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iCM3#,KM3#¥160198808-199201

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iCM3#,KM3#¥120198808-199201

33212CFORK, GEAR SHIFT, NO.1

main33212-26020iKM36..4F,4H¥6,600198808-199201

main33212-26030iCM3#,KM3#..5F,5H¥2,020198808-199201

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKM36..4F,4H¥110198808-199201

33213GFORK, GEAR SHIFT, NO.2

main33213-26020iKM36..4F,4H¥5,200198808-199201

main33213-28011iCM36..5H¥6,600198808-199201

sub33220-26010¥4,100

sub33364-26020¥4,190

33221ARM, REVERSE SHIFT

main33221-28010iCM3#,KM3#..5F,5H¥2,330198808-199201

main33221-30010iKM36..4F,4H¥2,510198808-199201

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-42500iKM36..4F,4H¥240198808-199201

33223PIVOT, SHIFT ARM

main33223-30011iKM36..4F,4H¥1,180198808-199201

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iKM36..4F,4H¥390198808-199201

33231HEAD, REVERSE SHIFT

main33231-26010iKM36..4F,4H¥3,140198808-199201

main33231-28010iCM3#,KM3#..5F,5H¥3,480198808-199201

sub33231-28020¥2,420

sub33220-26010¥4,100

sub33232-28020¥2,200

sub33364-26020¥4,190

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iKM36..4F,4H¥1,390198808-199201

main33244-28011iCM3#,KM3#..5F,5H¥2,500198808-199201

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-26010iKM36..4F,4H¥920198808-199201

main33242-26020iCM3#,KM3#..5F,5H¥2,770198808-199201

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-26010iKM36..4F,4H¥1,820198808-199201

main33243-35051iCM3#,KM3#..5F,5H¥2,500198808-199201

33251LEVER, SHIFT & SELECT

main33251-26010iKM36..4F,4H¥2,600198808-199201

main33251-28011iCM3#,KM3#..5F,5H¥3,310198808-199103

sub33251-28012¥3,250

main33251-28012iCM3#,KM3#..5F,5H¥3,250199103-199201

sub33251-28030¥2,060

sub33261-28030¥1,220

33253LEVER, SHIFT OUTER, NO.1

main33253-26012iKM36..4H¥2,020198808-199201

main33253-27040iCM36..5H¥4,970198808-199201

main33253-27050iKM3#..5F¥4,430198808-199201

main33253-27060iCM3#..5F¥4,430198808-199201

main33253-27070iKM36..4F¥3,810198808-199201

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iCM3#,KM3#¥160198808-199201

33257LEVER, SELECT OUTER

main33257-27020iKM36..4H¥2,660198808-199201

main33257-27060iKM3#..5F¥5,000198808-199201

main33257-27070iCM3#..5F¥5,000198808-199201

main33257-27080iKM36..4F¥4,650198808-199201

main33257-27100iCM36..5H¥4,980198808-199201

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iKM36..4F,4H¥160198808-199201

33261CSHAFT, SHIFT & SELECT LEVER

main33261-26021iKM36..4F,4H¥2,060198808-199201

main33261-28011iCM3#,KM3#..5F,5H¥4,330198808-199201

sub33261-28030¥1,220

sub33251-28030¥2,060

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iKM36..4F,4H¥250198808-199201

OD=6,L=16

main90361-10002iCM3#,KM3#..5F,5H¥310198808-199201

L=21.6,PIN,L=21.6

main90361-10003iCM3#,KM3#..5F,5H¥130198808-199201

L=13.6,OD=9.5,L=13.6

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iKM36..4F,4H¥250198808-199201

L=28.8,OD=6.0

main90250-05020iCM3#,KM3#..5F,5H¥190198808-199201

L=11.1,OD=4.8

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iKM36..4F,4H¥120198808-199201

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iKM36..4F,4H¥200198808-199201

main90341-12008iCM3#¥220198808-199201

OD=18

main90341-12014iCM3#,KM3#..5F,5H¥110198808-199201

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iCM3#,KM3#..5F,5H¥180198808-198904

L=20.65,L=20.6

sub90501-14123¥60

main90501-14061iCM3#¥200198808-198904

L=18.3,L=18.3

sub90501-14123¥60

main90501-14062iCM3#,KM3#..5F,5H¥200198808-198912

L=30.6,L=30.6

sub90501-14132¥100

main90501-14123iCM3#,KM3#..5F,5H¥60198904-199201

L=20.2,L=31.0

main90501-14132iCM3#,KM3#..5F,5H¥100198912-199201

L=31,L=31.0

main90501-14638iKM36..4F,4H¥190198808-199201

L=15.2

33275BBALL, SHAFT DETENT

main90360-10003iCM3#,KM3#..5F,5H¥100198808-199201

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iKM36..4F,4H¥250198808-199201

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iKM36..4F¥170198808-199201

main90501-16052iKM36..4H¥190198808-199201

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iKM36..4F,4H¥100198808-199201

8401

9020108065

main90201-08065¥60

9020108136

main90201-08136¥250

9161160820

main91611-60820¥200

9161160832

main91611-60832¥190

9165140816

main91651-40816¥80

9411040600

main94110-40600¥80

9411040800

main94110-40800¥120

9451200600

main94512-00600¥130

9451200800

main94512-00800¥80

43 parts on this diagram · 2 diagrams in section
