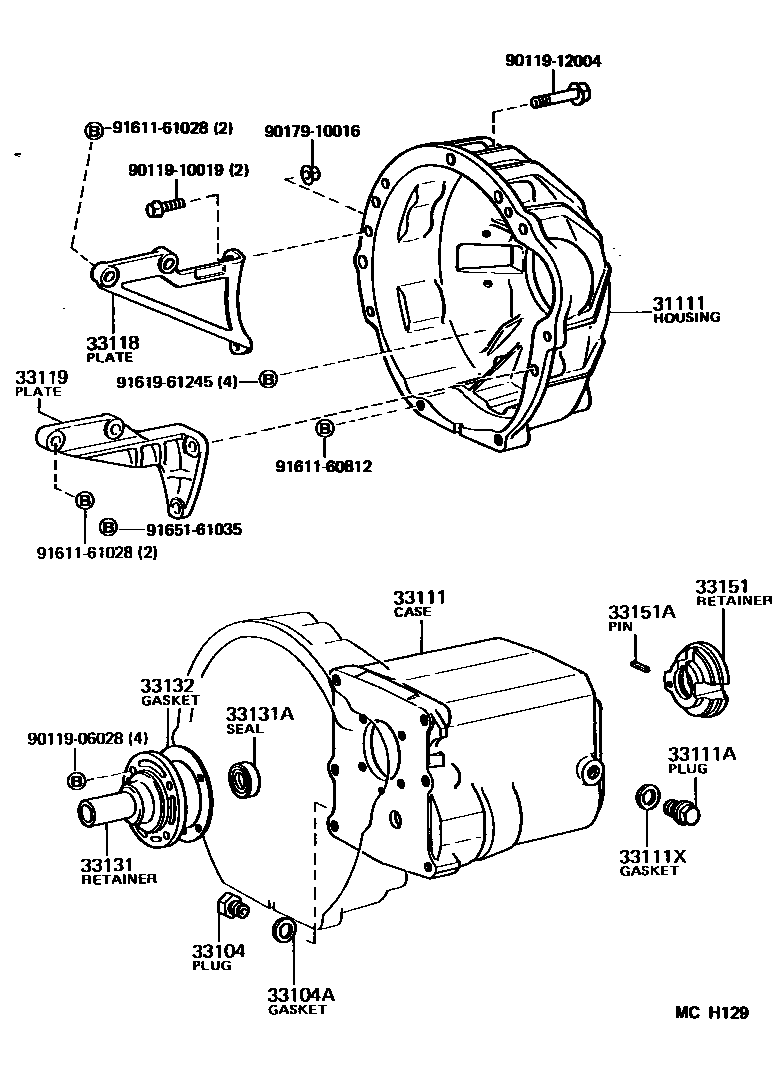

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31111-27020iKM36..4F,4H198808-199201

main31111-27030iKM3#..5F198808-199201

main31111-28030iCM3#198808-199201

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCM3#198808-199201

main90341-18057iKM3#198808-199201

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCM3#,KM3#198808-199201

33111CASE, MANUAL TRANSMISSION

main33101-28020iKM30198808-199201

sub33101-35060

sub90341-18032

main33101-35060iCM3#198808-199201

sub33101-26060

main33111-35031iKM36..4F,4H198808-199201

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCM3#,KM3#198808-199201

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCM3#,KM3#198808-199201

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKM3#198808-199201

main33118-14033iCM3#198808-198905

main33118-27010iCM3#198905-199201

33119PLATE, STIFFENER, LH(MTM)

main33119-12050iKM3#198808-199201

main33119-14050iCM3#198808-198905

main33119-27010iCM3#198905-199201

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iKM36..4F,4H198808-199201

main33131-26020iCM3#,KM3#..5F,5H198808-199201

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iCM3#,KM3#..5F,5H198808-199007

sub90311-30014

main90311-30014iCM3#,KM3#..5F,5H199007-199201

main90311-32106iKM36..4F,4H198808-199201

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM3#,KM3#..5F,5H198808-199201

main33132-30030iKM36..4F,4H198808-199201

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iKM36..4F,4H198808-199201

main33151-35030iCM3#,KM3#..5F,5H198808-199201

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKM36..4F,4H198808-199201

9011906028

main90119-06028

9011910019

main90119-10019

9011912004

main90119-12004

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161961245

main91619-61245

9165161035

main91651-61035

21 parts on this diagram · 3 diagrams in section
