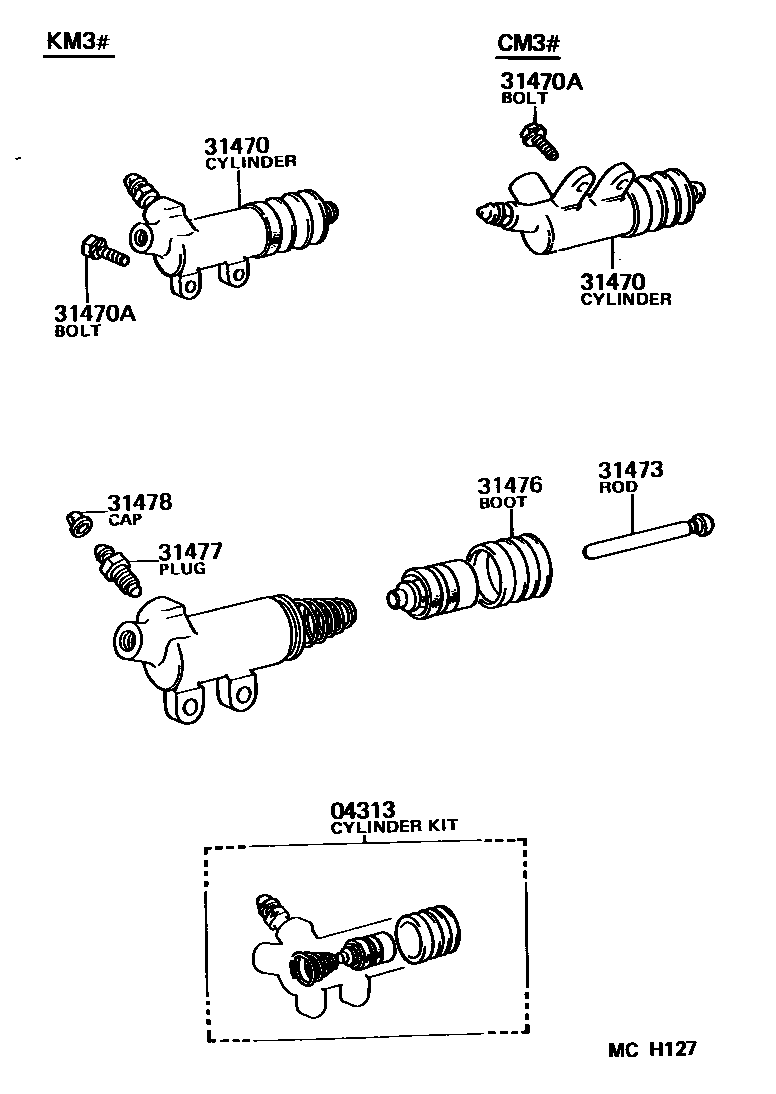

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iKM3#..5F198808-199201

main04313-22020iCM3#198808-199006

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28040iCM3#198808-199201

main31470-35071iKM3#..5F198808-199201

sub31470-35100

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCM3#,KM3#..5F,5H198808-199201

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCM3#,KM3#..5F,5H198808-199201

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCM3#,KM3#..5F,5H198808-199201

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCM3#,KM3#..5F,5H198808-199201

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCM3#,KM3#..5F,5H198808-199201

7 parts on this diagram · 1 diagram in section
