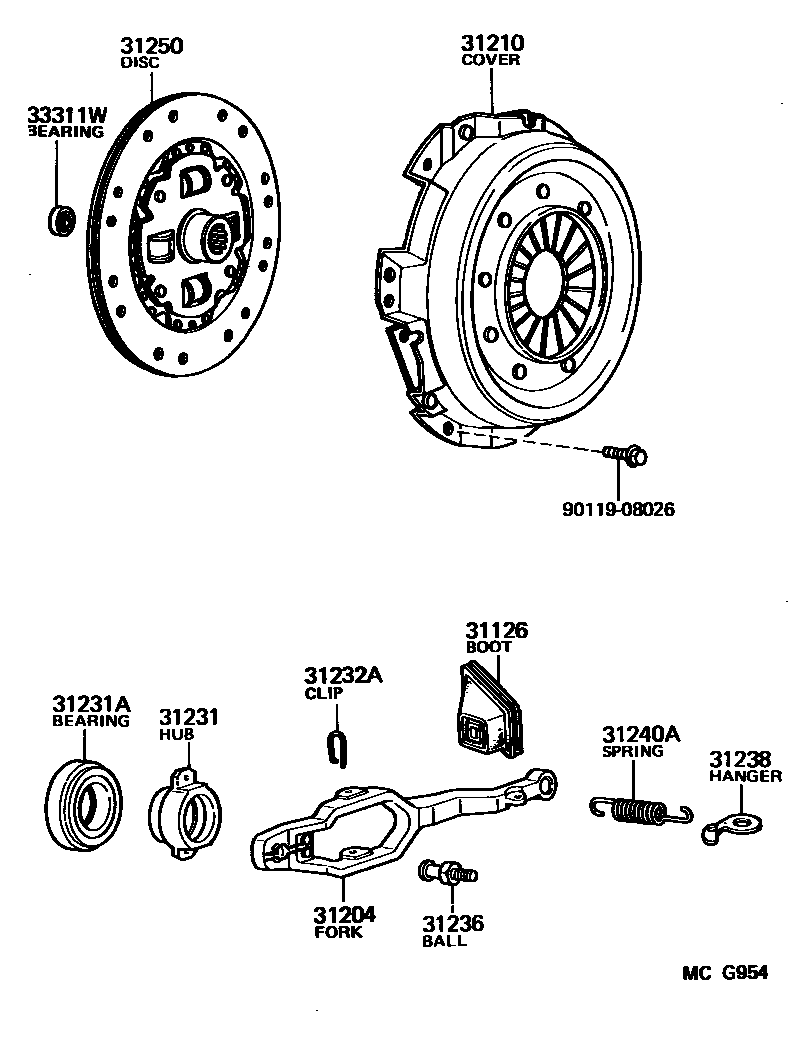

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM3#198808-199201

main31126-20070iKM3#..5F198808-199201

main31126-27020iKM36..4F,4H198808-199201

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCM3#198808-199201

main31204-22040iKM3#..5F198808-199201

main31204-27011iKM36..4F,4H198808-199201

31210COVER ASSY, CLUTCH

main31210-12180iKM3#199104-199201

sub31210-12181

main31210-22120iCM3#198812-199201

sub31210-22121

main31210-27010iKM3#198808-198907

sub31210-27011

main31210-27011iKM3#198907-199104

sub31210-12180

main31210-35080iCM3#198808-198812

sub31210-22120

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM36..4F,4H198808-199201

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iKM36..4F,4H198808-199201

31232ACLIP, RELEASE BEARING HUB

main31232-30020iKM36..4F,4H198808-199201

main31232-35020iCM3#,KM3#..5F,5H198808-199201

NSK

main31232-35040iCM3#,KM3#..5F,5H198911-199201

KOYO

31236BALL, RELEASE FORK

main31236-30060iCM3#,KM3#198808-199201

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM36..4F,4H198808-199201

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM36..4F,4H198808-199201

31250DISC ASSY, CLUTCH

main31250-27060iKM3#198808-198908

sub31250-27061

main31250-27061iKM3#198908-199201

sub31250-28140

main31250-27081iCM3#198808-199201

sub31250-27082

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKM3#198808-199201

main90363-12004iCM3#198808-199201

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
