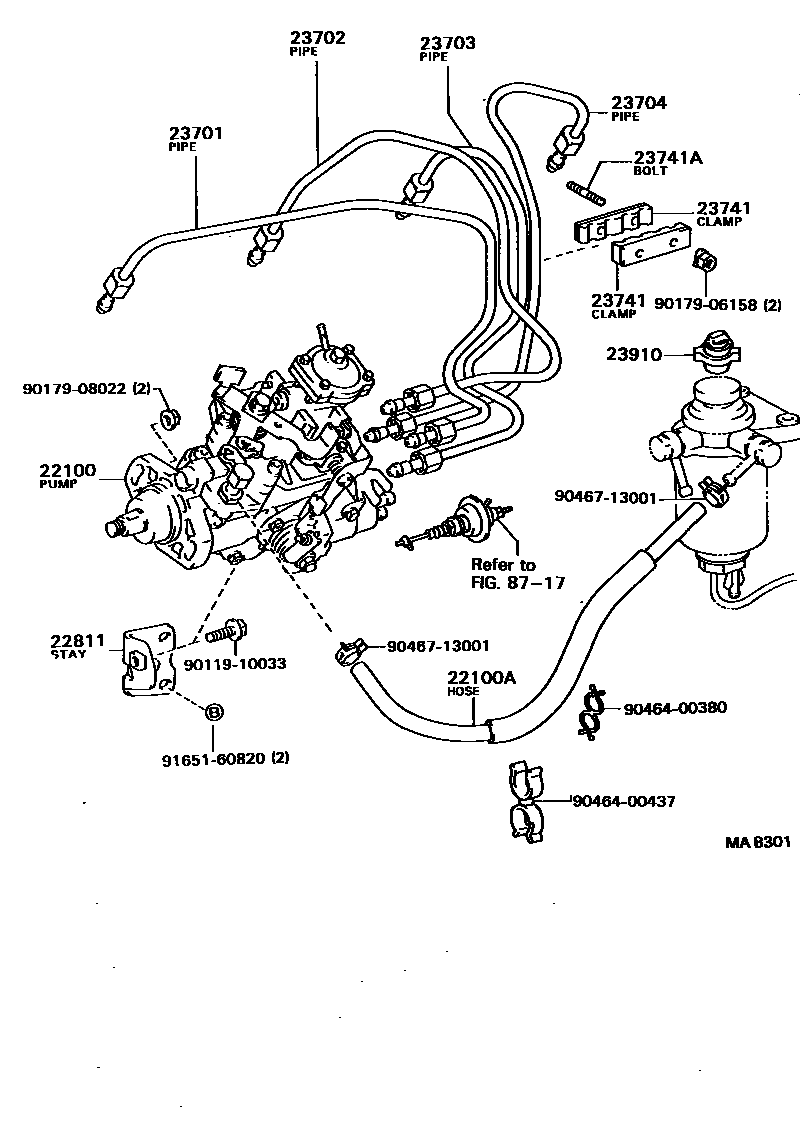

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6A680i2C..CM3#198808-199201

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14052i2C..CM3#198808-199201

L=440

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2C..CM3#198808-199201

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64070i2C..CM3#198808-199201

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64070i2C..CM3#198808-199201

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64031i2C..CM3#198808-199201

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64070i2C..CM3#198808-199201

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020i2C..CM3#198808-199201

sub23741-64021

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2C..CM3#198808-199201

sub90116-06095

23910HEATER ASSY, FUEL

main23910-64010i2C..CM3#198808-199201

8717

9011910033

main90119-10033

9017906158

main90179-06158

9017908022

main90179-08022

9046400380

main90464-00380

9046400437

main90464-00437

9046713001

main90467-13001

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
