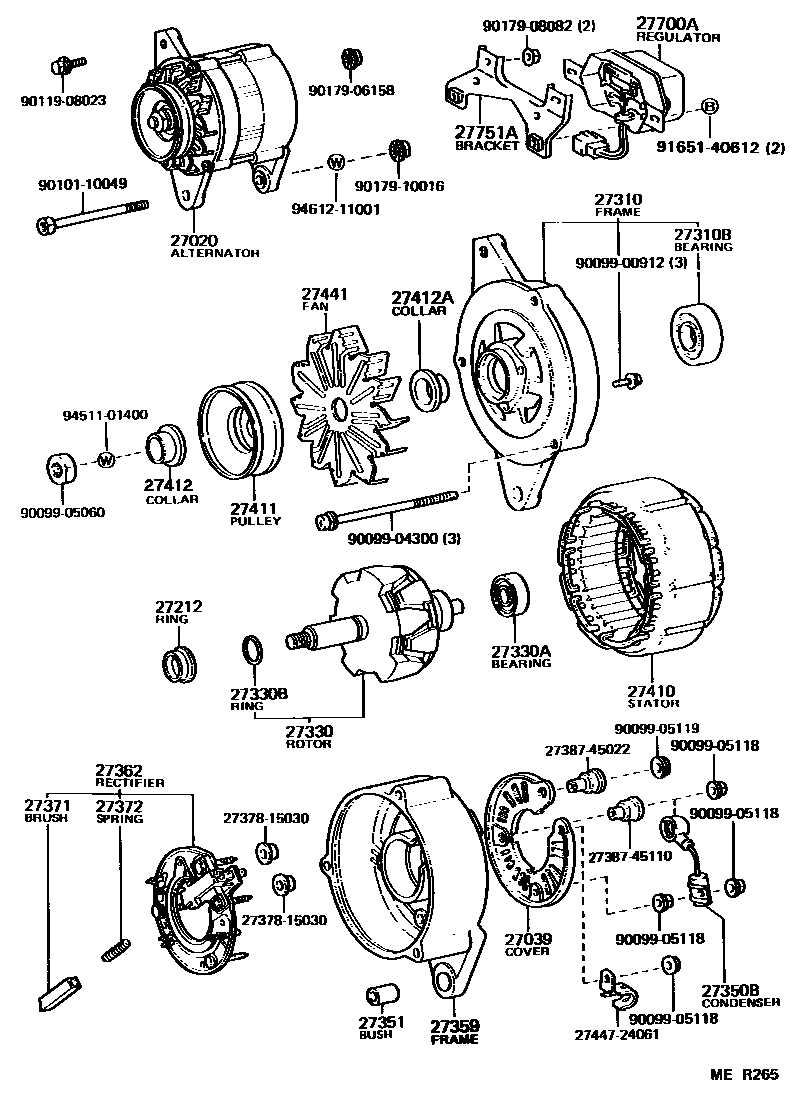

ALTERNATOR

0001 112V 40A,45A 0002 112V 55A

27020ALTERNATOR ASSY

main27020-13060i5K..KM30..DLX;5K..KM36..LHD..(4F,5F)198808-199201

12V 40A

main27020-13070i5K..KM3#..4H,5F;5K..KM36..4F..05S198808-199201

12V 45A

main27060-64021i2C..CM3#198808-199008

12V 55A

sub27060-64030

main27060-64030i2C..CM3#199008-199201

12V 55A

27039COVER, ALTERNATOR REAR END

main27039-18011i5K..KM3#198808-199201

main27039-72010i2C..CM3#199008-199201

sub27039-15170

main27039-72110i2C..CM3#198808-199008

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i5K..KM3#198808-199201

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i5K..KM3#198808-199201

main27310-64140i2C..CM3#198808-199008

main27310-64230i2C..CM3#199008-199201

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i5K..KM3#198808-199201

main90099-10165i2C..CM3#198808-199201

27330ROTOR ASSY, ALTERNATOR

main27330-26050i5K..KM30..DLX;5K..KM36..(4F,5F)..05S198808-199201

12V 40A

main27330-45020i5K..KM36..LHD..V4D..5F..02S198808-199201

12V 45A

main27330-45020i5K..KM3#..VSG;5K..KM36..RHD198808-199201

main27330-64130i2C..CM3#199008-199201

main27330-64140i2C..CM3#198808-199008

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i5K..KM3#198808-199201

main90099-10140i2C..CM3#198808-199201

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i5K..KM3#198808-199201

27350BCONDENSER, ALTERNATOR

main90099-52065i5K..KM3#198808-199201

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i5K..KM3#198808-199201

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i5K..KM3#198808-199201

main27359-64130i2C..CM3#199008-199201

main27359-64140i2C..CM3#198808-199008

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i5K..KM3#198808-199201

27371BRUSH, ALTERNATOR

main27371-31011i5K..KM3#198808-199201

main27371-63020i2C..CM3#198808-198908

sub27371-70300

main27371-70300i2C..CM3#198908-199201

27372SPRING, ALTERNATOR BRUSH

main27372-31011i5K..KM3#198808-199201

main27372-63020i2C..CM3#199109-199201

sub27372-87501

main27372-72100i2C..CM3#198808-199109

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-38120i5K..KM3#198808-199201

27411PULLEY, ALTERNATOR

main27411-31042i5K..KM3#198808-199201

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i5K..KM3#198808-199201

sub27412-44031

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i5K..KM3#198808-199201

27441FAN, ALTERNATOR

main27441-34030i5K..KM3#198808-199201

27700AREGULATOR ASSY, GENERATOR

main27700-11030i2C..CM3#199008-199201

sub27700-72090

main27700-13080i5K..KM3#198808-199201

sub27700-13040

main27700-13101i5K..KM30198808-199201

COLD SPEC

sub27700-13080

main27700-63021i2C..CM3#198808-198902

sub27700-70030

main27700-70030i2C..CM3#198902-199008

27751ABRACKET, GENERATOR REGULATOR

main27751-13010i5K..KM3#198808-199201

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9017908082

main90179-08082

9017910016

main90179-10016

9165140612

main91651-40612

9451101400

main94511-01400

9461211001

main94612-11001

38 parts on this diagram · 2 diagrams in section
