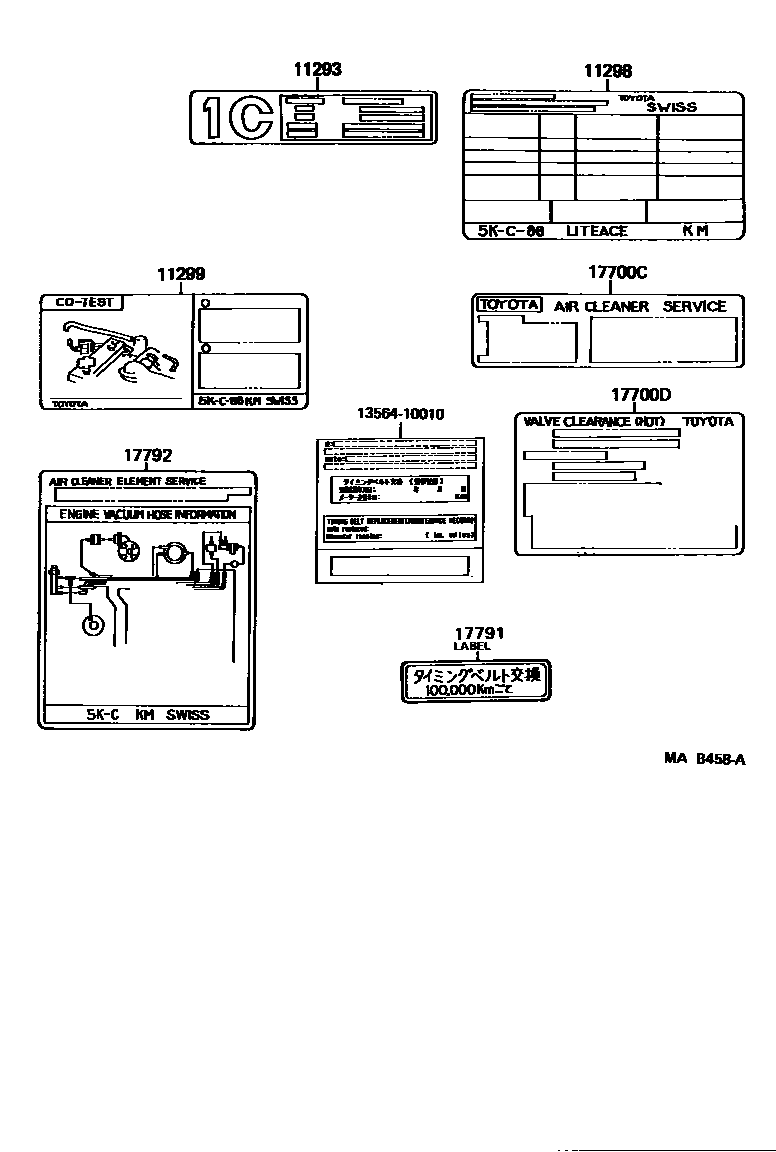

CAUTION PLATE & NAME PLATE (ENGINE)

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-64060i2C..CM3#198808-199201

11298PLATE, EMISSION CONTROL INFORMATION

main11298-13250i5K..KM36..V5D..5F198808-199008

AUSTRIA SPEC

main11298-13250i5K..KM36..V5D..5F198808-199201

AUSTRIA & SWITZERLAND SPEC

main11298-13250i5K..KM36..5F..05S198808-199201

SWITZERLAND SPEC

11299PLATE, IDLE ADJUSTING CAUTION

main11299-13070i5K..KM36..V5D..5F198808-199008

AUSTRIA SPEC

main11299-13070i5K..KM36..V5D..5F198808-199201

AUSTRIA & SWITZERLAND SPEC

main11299-13070i5K..KM36..5F..05S198808-199201

SWITZERLAND SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i2C..CM3#198808-199201

17700DPLATE, ENGINE CAUTION

main11293-13330i5K..KM3#198808-199201

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i2C..CM3#198808-199201

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-13380i5K..KM36..V5D..5F198808-199008

AUSTRIA SPEC

main17792-13380i5K..KM36..V5D..5F198808-199201

AUSTRIA & SWITZERLAND SPEC

main17792-13380i5K..KM36..5F..05S198808-199201

SWITZERLAND SPEC

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

8 parts on this diagram · 1 diagram in section
