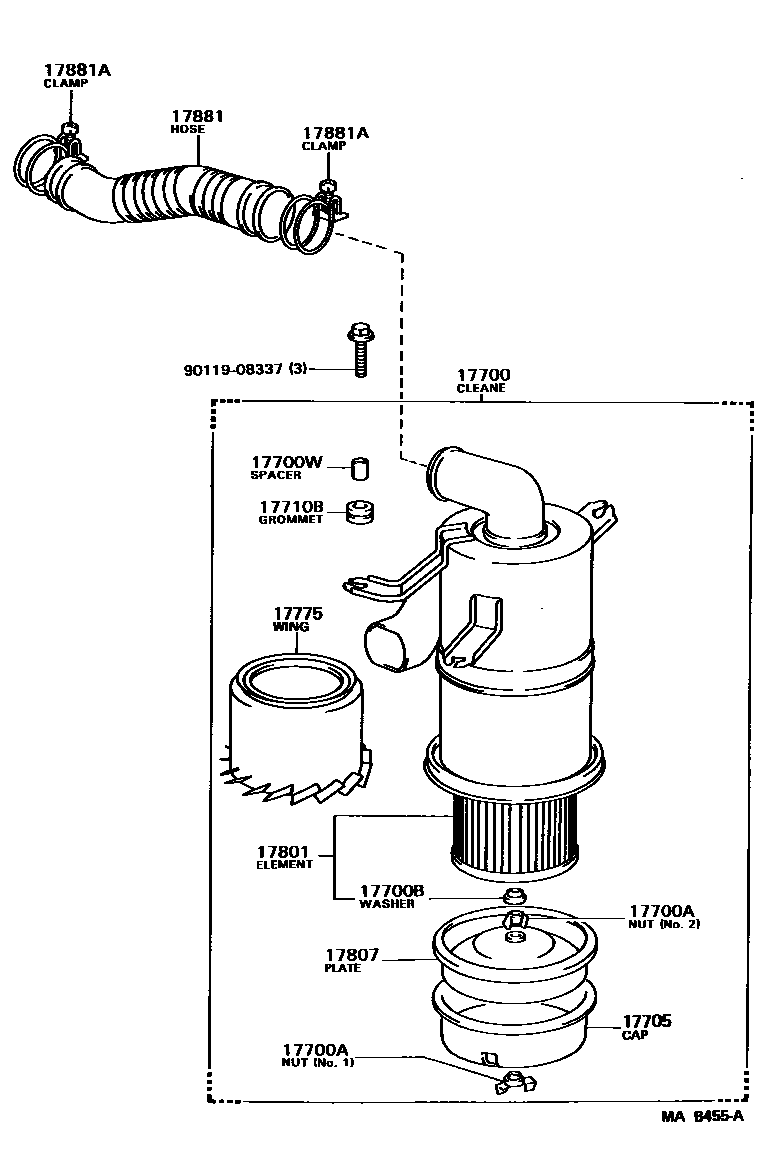

AIR CLEANER
17700CLEANER ASSY, AIR
W(CYCLONE TYPE)
17700ANUT, WING(FOR AIR CLEANER)
NO.1
NO.2
17700BWASHER, SEAL(FOR AIR CLEANER)
17700WSPACER(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
W(CYCLONE TYPE)
17710BGROMMET
17775WING, CYCLONE
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
W(CYCLONE TYPE)
17807PLATE SUB-ASSY, AIR CLEANER FILTER SET
17881HOSE, AIR CLEANER, NO.1
9011908337
main90119-08337
12 parts on this diagram · 3 diagrams in section
