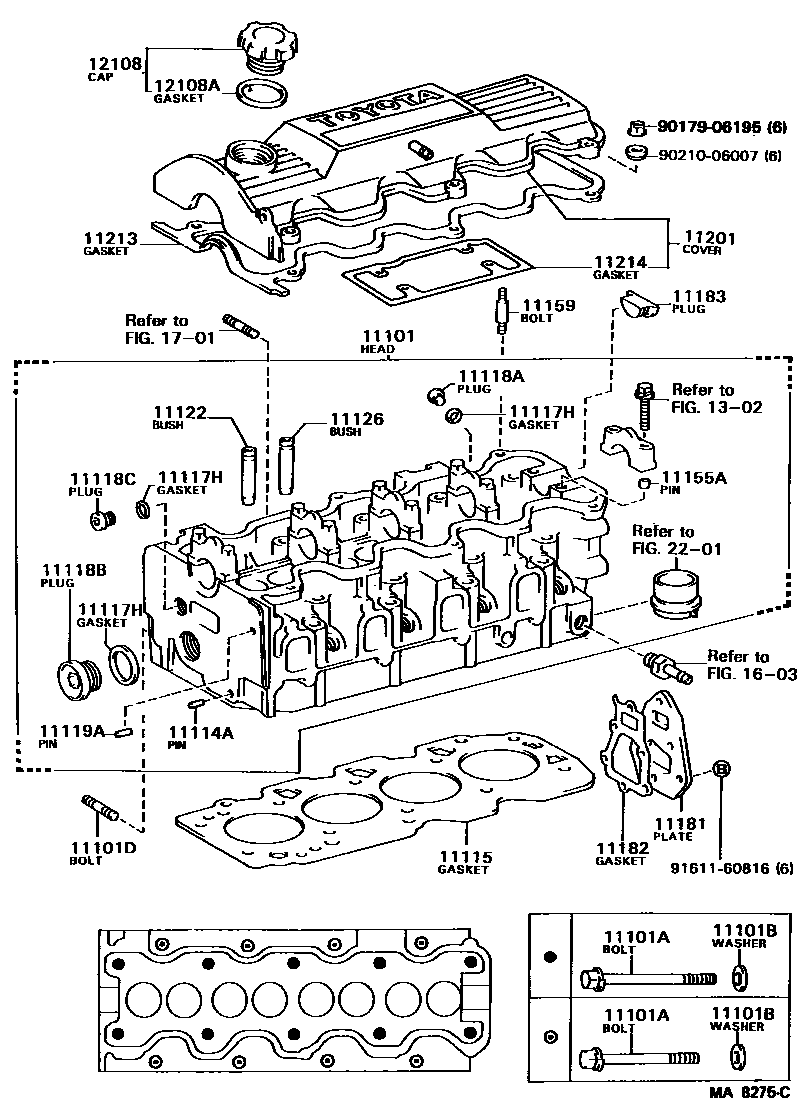

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-13041i5K..KM30..DLX;5K..KM36..LHD..5F..02S198808-199201

AUSTRIA SPEC & SWITZERLAND SPEC

main11101-13041i5K..KM36..V5D..5F198808-199008

AUSTRIA SPEC

main11101-13041i5K..KM36..5F..05S198808-199201

SWITZERLAND SPEC

main11101-13062i5K..KM3#198808-199201

main11101-64120i2C..CM3#198808-198901

sub11101-64121

main11101-64121i2C..CM3#198901-199201

sub11101-64122

sub11115-64122

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-11018i2C..CM3#198808-199002

*11-1.25PX123-51.5

sub90910-02097

main90105-11019i2C..CM3#198808-199002

*11-1.25PX145-51.5

sub90910-02099

main90910-02069i5K..KM3#198808-199201

main90910-02074i5K..KM3#198808-199201

HEAD FR RIGHT

main90910-02097i2C..CM3#198808-199201

*11-1.25PX130-50

main90910-02099i2C..CM3#198808-199201

*11-1.25PX152-50

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10005i5K..KM3#198808-199201

main90201-12222i2C..CM3#198808-199201

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i2C..CM3#198808-199201

11114APIN, STRAIGHT

main90250-06068i2C..CM3#198808-199201

L=11,OD=6

11115GASKET, CYLINDER HEAD

main11115-13040i5K..KM3#198808-199008

sub11115-13041

main11115-13041i5K..KM3#199008-199201

main11115-64100i2C..CM3#198808-199009

sub11115-64121

main11115-64120i2C..CM3#199009-199101

sub11115-64121

main11115-64121i2C..CM3#199101-199201

sub11115-64122

11117HGASKET(FOR WATER HOLE)

main90430-10204i2C..CM3#198808-199201

PNC 11118A

main90430-12010i2C..CM3#198808-199201

PNC 11118C

main90430-33133i2C..CM3#198808-199201

PNC 11118B

11118APLUG, STRAIGHT, NO.1

main90341-10005i2C..CM3#198808-199201

11118BPLUG, STRAIGHT, NO.2

main90341-32070i2C..CM3#198808-199201

11118CPLUG, STRAIGHT, NO.3

main90341-12013i2C..CM3#198808-199201

11119APIN, STRAIGHT, NO.1

main90250-06068i2C..CM3#198808-199201

L=11,OD=6

main90250-08120i5K..KM3#198808-199201

L=18,OD=8

11122BUSH, INTAKE VALVE GUIDE

main11122-24020i5K..KM3#198808-199201

STD

main11122-64010i2C..CM3#198808-199201

STD

main11123-24020i5K..KM3#198808-199201

O/S 0.05

main11123-64010i2C..CM3#198808-199201

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-24020i5K..KM3#198808-199201

STD

main11123-24020i5K..KM3#198808-199201

O/S 0.05

main11126-64010i2C..CM3#198808-199201

STD

sub11126-64030

main11127-64010i2C..CM3#198808-199201

O/S 0.05

sub11127-64030

11155APIN, RING W/HEAD

main90253-11021i2C..CM3#198808-199201

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-06023i2C..CM3#198808-199201

11181PLATE, CYLINDER HEAD, REAR

main11181-13020i5K..KM3#198808-199201

main11181-13040i5K..KM36..V5D..5F198808-199201

AUSTRIA & SWITZERLAND SPEC

main11181-13040i5K..KM36..V5D..5F198808-199008

AUSTRIA SPEC

main11181-13040i5K..KM36..5F..05S198808-199201

SWITZERLAND SPEC

main11181-64010i2C..CM3#198808-199201

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-13020i5K..KM3#198912-199201

main11182-24010i5K..KM3#198808-198912

sub11182-13020

main11182-64010i2C..CM3#198808-198903

sub11182-64020

main11182-64020i2C..CM3#198903-199201

sub11182-64021

11183PLUG, SEMICIRCULAR

main11183-64010i2C..CM3#198808-199201

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-13021i5K..KM3#198808-199201

main11201-64060i2C..CM3#198808-199201

11213GASKET, CYLINDER HEAD COVER

main11213-22010i5K..KM3#198808-199201

main11213-64020i2C..CM3#198808-199101

sub11213-64040

main11213-64040i2C..CM3#199101-199201

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-64011i2C..CM3#198808-199009

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i5K..KM3#198808-199201

sub12180-55010

main12180-62010i5K..KM3#199004-199107

sub12180-62011

main12180-62011i5K..KM3#199107-199201

sub12180-65011

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i5K..KM3#198808-199201

1302

1603

1701

2201

9017906195

main90179-06195

9021006007

main90210-06007

9161160816

main91611-60816

30 parts on this diagram · 2 diagrams in section
