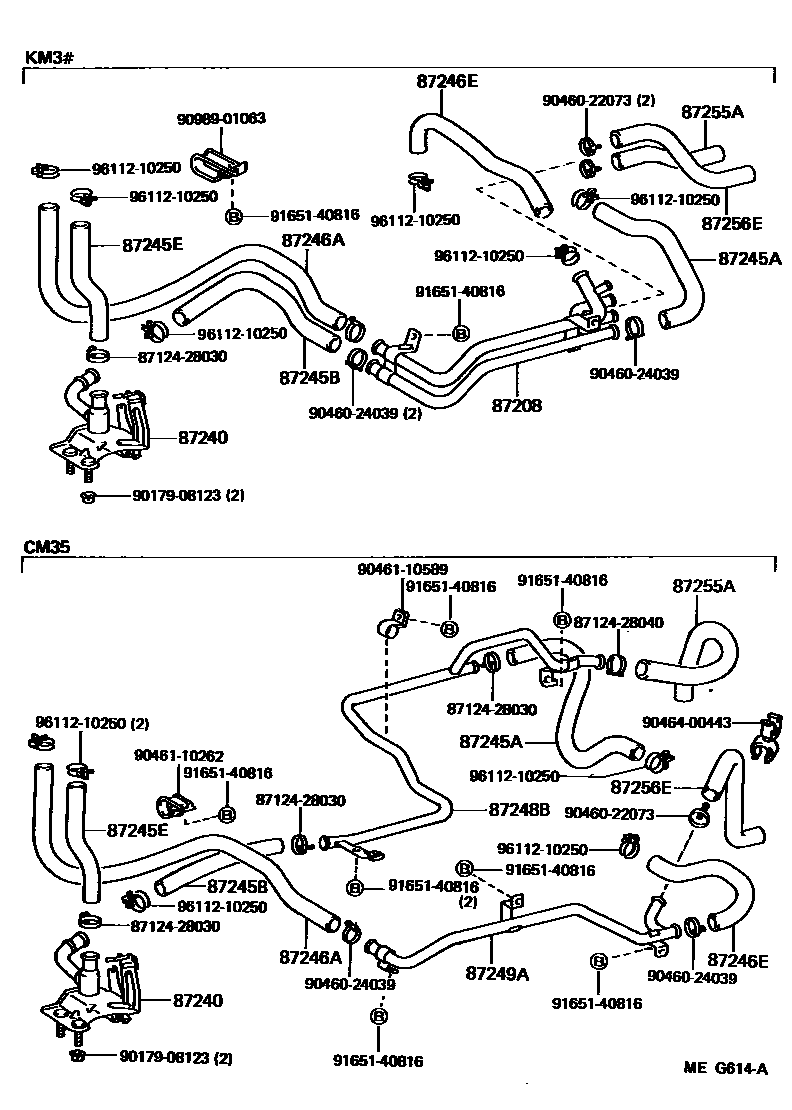

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95717iKM36..RHD198510-198808

main87208-95719iKM3#..LHD..STD198510-198808

main87208-95720iKM3#..05S,08S198510-198808

W/RR HEATER

main87208-95731iCM35..05S198510-198808

87240VALVE ASSY, HEATER WATER

main87240-95707iCM35,KM3#198510-198808

87245AHOSE, HEATER WATER, INLET A

main87245-95734iKM36..RHD198510-198808

main87245-95735iKM3#..05S,08S198510-198808

W/RR HEATER

main87245-95736iCM35198510-198808

main99556-30500iKM3#..LHD..STD198510-198808

*H,L=460

87245BHOSE, HEATER WATER, INLET B

main99556-30260iCM35198802-198808

*H,L=250

sub99556-30300

main99556-30300iCM35198510-198802

*H,L=250

main99556-30980iKM3#198510-198808

*H,L=740

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30180iCM35,KM3#198510-198808

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iKM36..RHD198510-198808

*H,L=820

sub99556-31000

main99556-30980iKM3#..LHD198510-198808

*H,L=840

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95732iKM36..RHD198510-198808

main87245-95733iKM3#..LHD198510-198808

main87245-95739iCM35198510-198808

87248BPIPE, HEATER WATER INLET, B

main87208-95721iCM35198510-198808

main87208-95722iCM35..05S198510-198808

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-95723iCM35198510-198808

main87208-95724iCM35..05S198510-198808

W/RR HEATER

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95738iCM35..05S198510-198808

main87245-95748iKM3#..05S,08S198510-198808

sub87245-95J35

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95741iCM35..05S198510-198808

main99556-20300iKM3#..05S,08S198510-198808

*H,L=240

8712428030CLAMP, HEATER

main87124-28030

8712428040CLAMP, HEATER

main87124-28040

9017908123

main90179-08123

9046022073

main90460-22073

9046024039

main90460-24039

9046110262

main90461-10262

9046110589

main90461-10589

9046400443

main90464-00443

9046924039

main90469-24039

9098901063

main90989-01063

9165140816

main91651-40816

9611210250

main96112-10250

23 parts on this diagram · 2 diagrams in section
