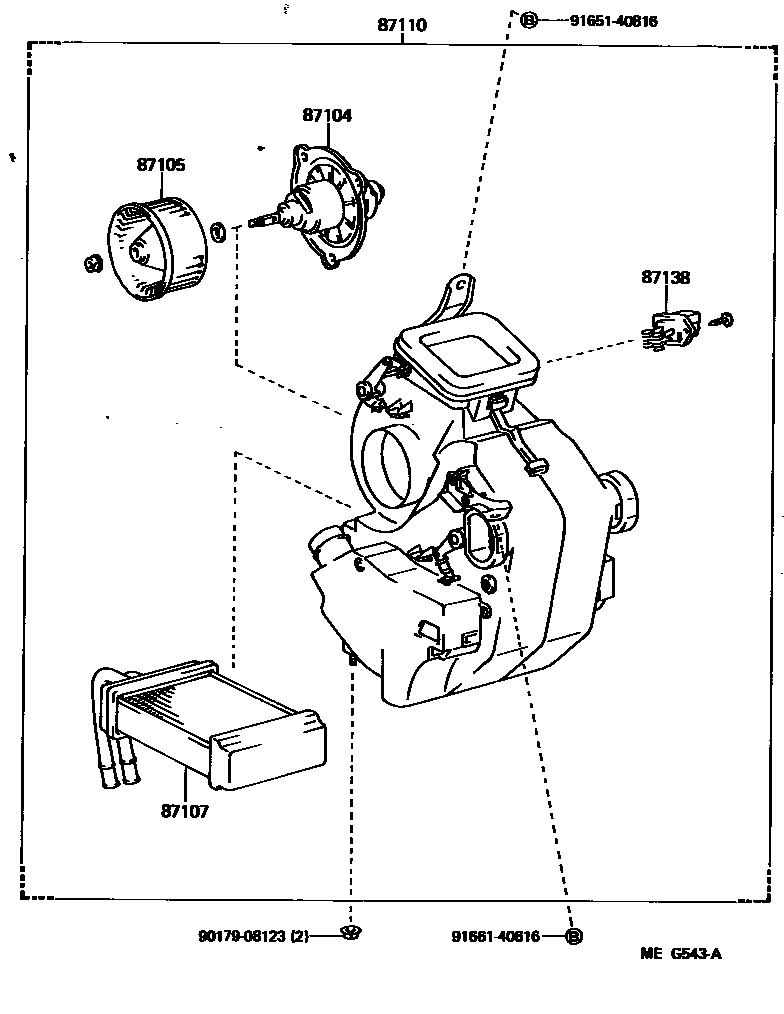

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95705iCM35,KM36..RHD198510-198808

COLD SPEC

main87104-95708iKM3#..LHD198510-198808

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12060iCM35,KM3#..LHD198510-198808

main87105-16020iCM35,KM36..RHD198510-198808

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95705iKM3#..LHD198510-198808

main87107-95706iCM35..RHD198510-198808

COLD SPEC

main87107-95707iCM35,KM36..RHD198510-198808

COLD SPEC

87110HEATER ASSY

main87110-95715iKM36..RHD198510-198704

sub87231-95703

main87110-95716iCM35..RHD198510-198704

sub87231-95703

main87110-95718iCM35,KM36..RHD198510-198704

COLD SPEC

sub87231-95703

main87110-95719iKM3#..LHD198510-198704

sub87231-95703

main87110-95721iKM3#..LHD198510-198704

COLD SPEC

sub87231-95703

main87110-95731iCM35..LHD198510-198704

sub87231-95703

main87110-95732iCM35..LHD198510-198704

COLD SPEC

sub87231-95703

main87110-95738iKM36..RHD198704-198808

main87110-95739iCM35..RHD198704-198808

main87110-95741iCM35,KM36..RHD198704-198808

COLD SPEC

main87110-95742iKM3#..LHD198704-198808

sub87110-95743

main87110-95744iKM3#..LHD198704-198808

COLD SPEC

main87110-95746iCM35..LHD198704-198808

main87110-95747iCM35..LHD198704-198808

COLD SPEC

87138RESISTOR, HEATER BLOWER

main87138-95409iCM35,KM3#..LHD198510-198808

main87138-95707iCM35,KM36..RHD198510-198808

COLD SPEC

sub87138-27020

9017908123

main90179-08123

9165140816

main91651-40816

9166140616

main91661-40616

8 parts on this diagram · 3 diagrams in section
