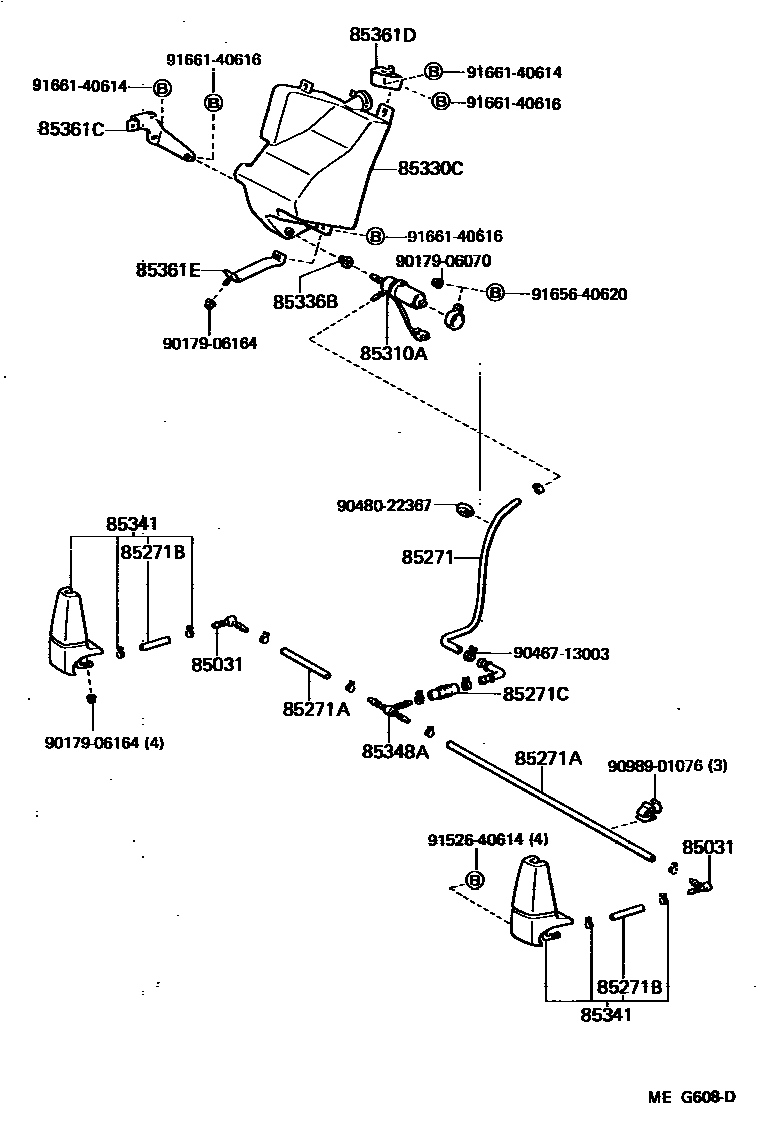

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iCM35,KM36..4H,5H198510-198808

85271HOSE, HEADLAMP CLEANER, NO.1

main90445-14048iCM35,KM36..4H,5H198510-198808

L=150

sub90445-14059

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-89115iCM35,KM36..4H,5H198510-198808

L=1320(*H,L=960)

sub90445-14072

main90445-14048iCM35,KM36..4H,5H198510-198808

L=150

sub90445-14059

85271BHOSE, HEADLAMP CLEANER, NO.3

main90445-14071iCM35,KM36..4H,5H198510-198808

L=50

85271CHOSE, HEADLAMP CLEANER, NO.4

main85375-20190iCM35,KM36..4H,5H198510-198808

L=90

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-95704iCM35,KM36..4H,5H198510-198808

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-95400iCM35,KM36..4H,5H198510-198808

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iCM35,KM36..4H,5H198510-198808

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-95713iCM35,KM36..4H,5H198510-198808

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iCM35,KM36..4H,5H198510-198808

85361CBRACKET, WASHER

main85361-95710iCM35,KM36..4H,5H198510-198808

85361DBRACKET, HEADLAMP CLEANER, NO.2

main85361-95711iCM35,KM36..4H,5H198510-198808

85361EBRACKET, HEADLAMP CLEANER, NO.3

main85361-95712iCM35,KM36..4H,5H198510-198808

9017906070

main90179-06070

9017906164

main90179-06164

9046713003

main90467-13003

9048022367

main90480-22367

9098901076

main90989-01076

9152640614

main91526-40614

9165640620

main91656-40620

9166140614

main91661-40614

9166140616

main91661-40616

22 parts on this diagram · 1 diagram in section
