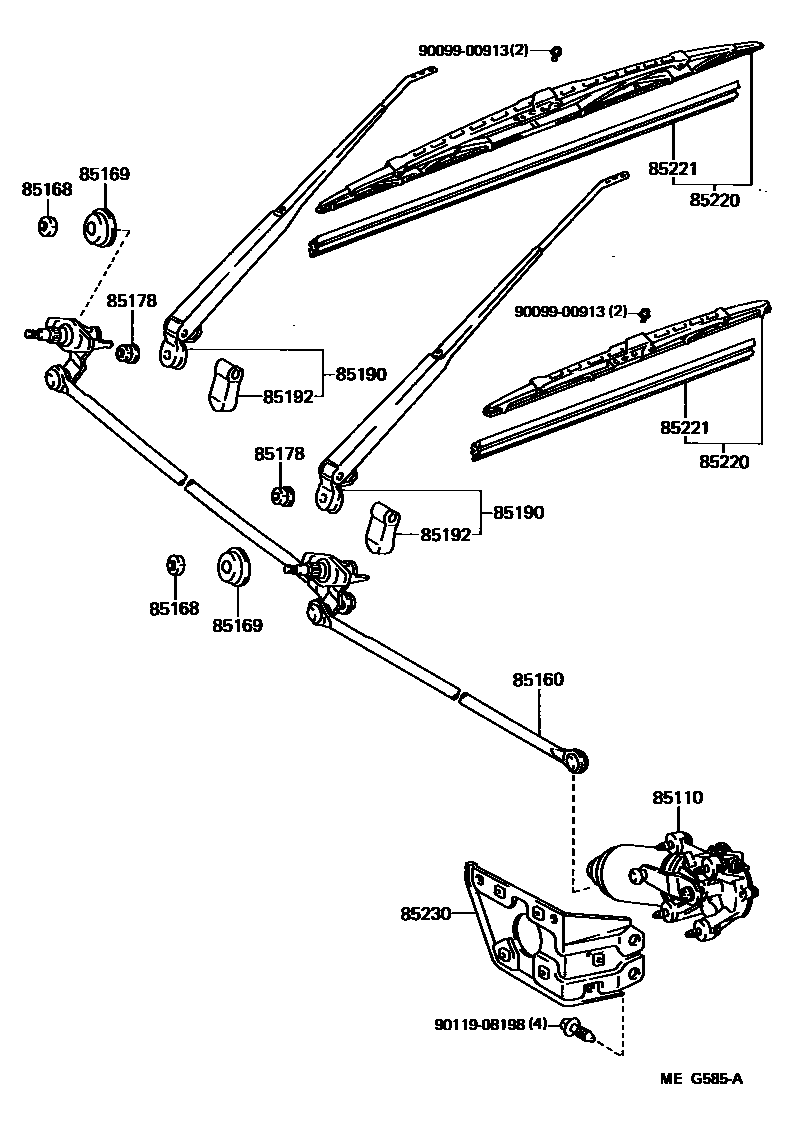

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95718iCM35,KM36..RHD198510-198808

sub85110-27020

main85110-95719iCM35,KM3#..LHD198510-198808

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM35,KM36..RHD198510-198808

main85160-95708iCM35,KM3#..LHD198510-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iCM35,KM3#198510-198808

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701iCM35,KM3#198510-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iCM35,KM3#198510-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-95716iCM35,KM3#..LHD198510-198808

RH

main85190-95717iCM35,KM36..RHD198510-198808

RH

main85210-95705iCM35,KM36..RHD198510-198808

LH

main85210-95707iCM35,KM3#..LHD198510-198808

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iCM35,KM3#198510-198808

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14390iCM35,KM3#..LHD198510-198808

RH

main85220-22500iCM35,KM36..RHD198510-198808

LH

main85220-32410iCM35,KM3#..LHD198510-198808

LH

main85220-32430iCM35,KM36..RHD198510-198808

RH

85221BLADE, WINDSHIELD WIPER

main85221-12220iCM35,KM3#..LHD198510-198808

RH

sub85214-12H90

main85221-95703iCM35,KM36..RHD198510-198808

LH

sub85214-12H90

main85221-95705iCM35,KM3#..LHD198510-198808

LH

sub85214-27H90

main85221-95705iCM35,KM3#..LHD198510-198808

RH

sub85214-27H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM35,KM36..RHD198510-198808

main85269-95701iCM35,KM3#..LHD198510-198808

9009900913

main90099-00913

9011908198

main90119-08198

12 parts on this diagram · 1 diagram in section
