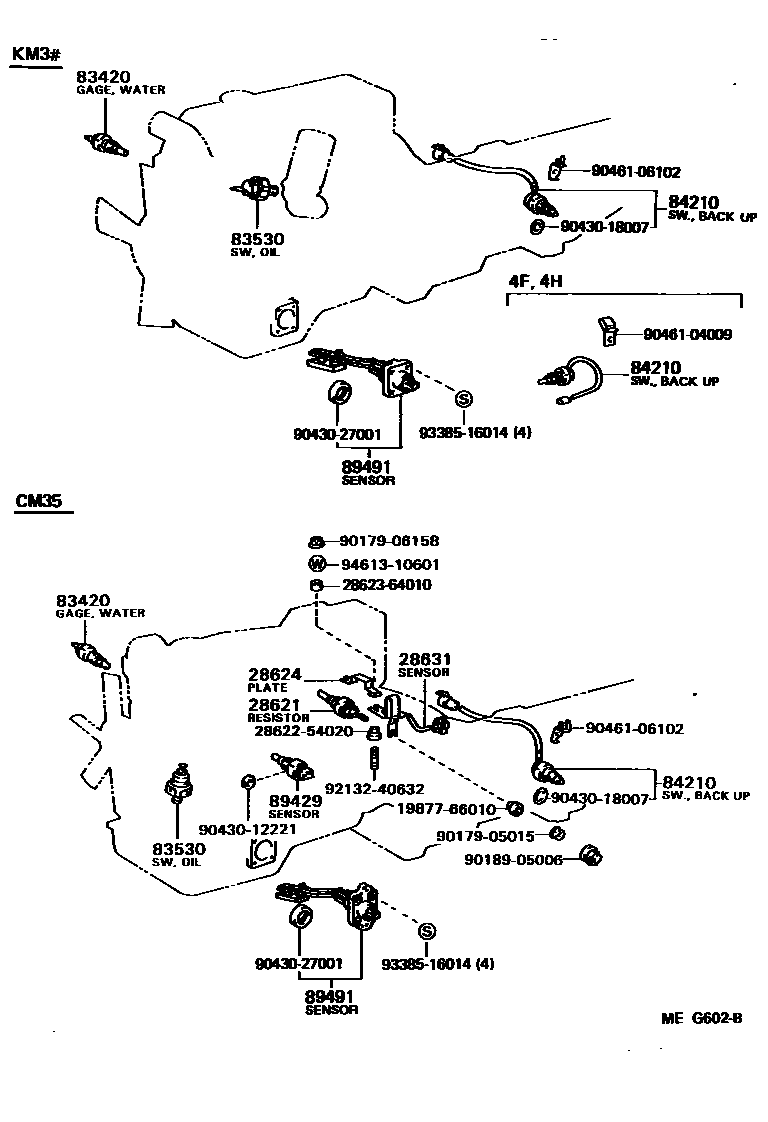

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

28621RESISTOR, GLOW PLUG

main28621-64011i1C..CM35198510-198808

28624PLATE, CURRENT SENSOR

main28624-64010i1C..CM35198510-198808

28631SENSOR, GLOW PLUG CURRENT

main28631-64021i1C..CM35198510-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCM35,KM3#198510-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iKM3#198510-198511

sub83530-14040

main83530-30060iCM35198510-198808

sub83530-60030

main83530-30080iKM3#198511-198808

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-26030iKM36..4F,4H198510-198808

main84210-60021iCM35,KM3#..5F,5H198510-198808

89429SENSOR, OIL TEMPERATURE

main89422-30020iCM35198510-198808

sub89422-12010

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKM3#198510-198808

main89491-28010iCM35198510-198808

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046106102

main90461-06102

9213240632

main92132-40632

9338516014

main93385-16014

9461310601

main94613-10601

22 parts on this diagram · 8 diagrams in section
