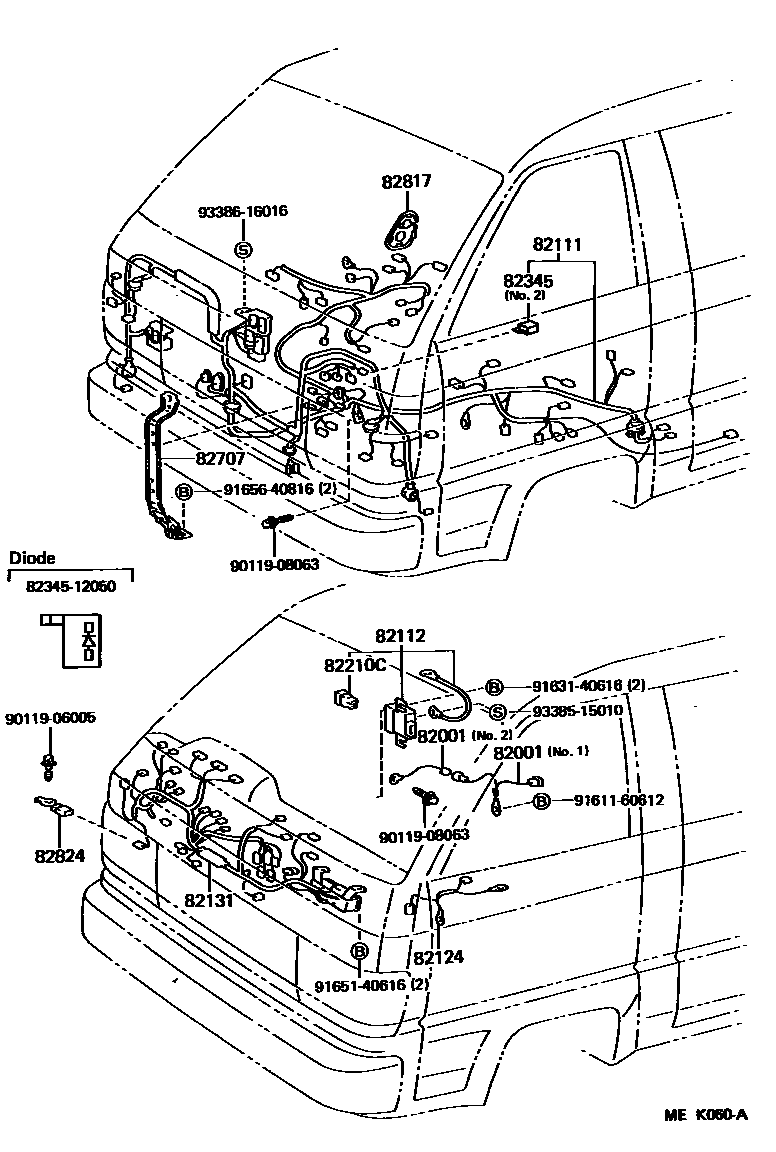

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.2
NO.1
NO.4
NO.3
NO.2
NO.2
NO.1
82111WIRE, ENGINE ROOM MAIN
W/*FH,*RWD,*RFL OR *RW
SWITZERLAND SPEC
*FRG
W/LIGHTING WARNING;W/*FH,*RWD,*RFL,*RW OR *REH
FINLAND SPEC
*FRG
W/*FH,*RWD OR *RW
W/LIGHTING WARNING;W/*FH,*RWD,*RW OR *REH
FINLAND SPEC
ENGLAND SPEC
SWITZERLAND SPEC
*FRG
*FRG
W/*RWD OR *RW
W/LIGHTING WARNING;W/*RWD,*RW,*REH
FINLAND SPEC
NORWAY SPEC
DENMARK SPEC
DENMARK SPEC
W/*FH,*RWD OR *RW
W/LIGHTING WARNING;W/*FH,*RWD,*RW OR *REH
FINLAND SPEC
W/*RWD OR *RW
ENGLAND SPEC
W/LIGHTING WARNING;W/*RWD,*RW,*REH
SWITZERLAND SPEC
*FRG
FINLAND SPEC
NORWAY SPEC
*FRG
82112WIRE, ENGINE ROOM, NO.2
82124WIRE, ENGINE, NO.4
COLD SPEC
W/ALTERNATOR 12V 30A
82131WIRE, COWL
W/*RWD,*RFL,*RW
W/*RW
*FRG,W/*RW
*FRG
W/*RWD,CLOCK,*REH
W/LIGHTING WARNING
FINLAND SPEC
W/*RWD,*RW,LIGHTING WARNING
W/*RW
*FRG,W/*RW
*FRG
W/*RWD,CLOCK,*REH
W/LIGHTING WARNING
FINLAND SPEC
W/*RW
*FRG,W/*RW
W/*RWD,CLOCK,*REH
W/LIGHTING WARNING
*FRG
FINLAND SPEC
ENGLAND SPEC
ENGLAND SPEC
DENMARK SPEC
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A
40A,TERM.:FEMALE,GRN,40A
60A,TERM.:MALE,YEL,60A
80A,TERM.:MALE,BLK,80A
50A,TERM.:MALE,RED,50A
82345DIODE
NO.2,*FRG
NO.2
NO.1
82707SUPPORT SUB-ASSY, WIRING HARNESS
82817PROTECTOR, WIRING HARNESS, NO.1
82824CONNECTOR, WIRING HARNESS
8234512050DIODE
main82345-12050
9011906005
main90119-06005
9011908063
main90119-08063
9161160612
main91611-60612
9163140616
main91631-40616
9165140616
main91651-40616
9165640816
main91656-40816
9338515010
main93385-15010
9338616016
main93386-16016
19 parts on this diagram · 7 diagrams in section
